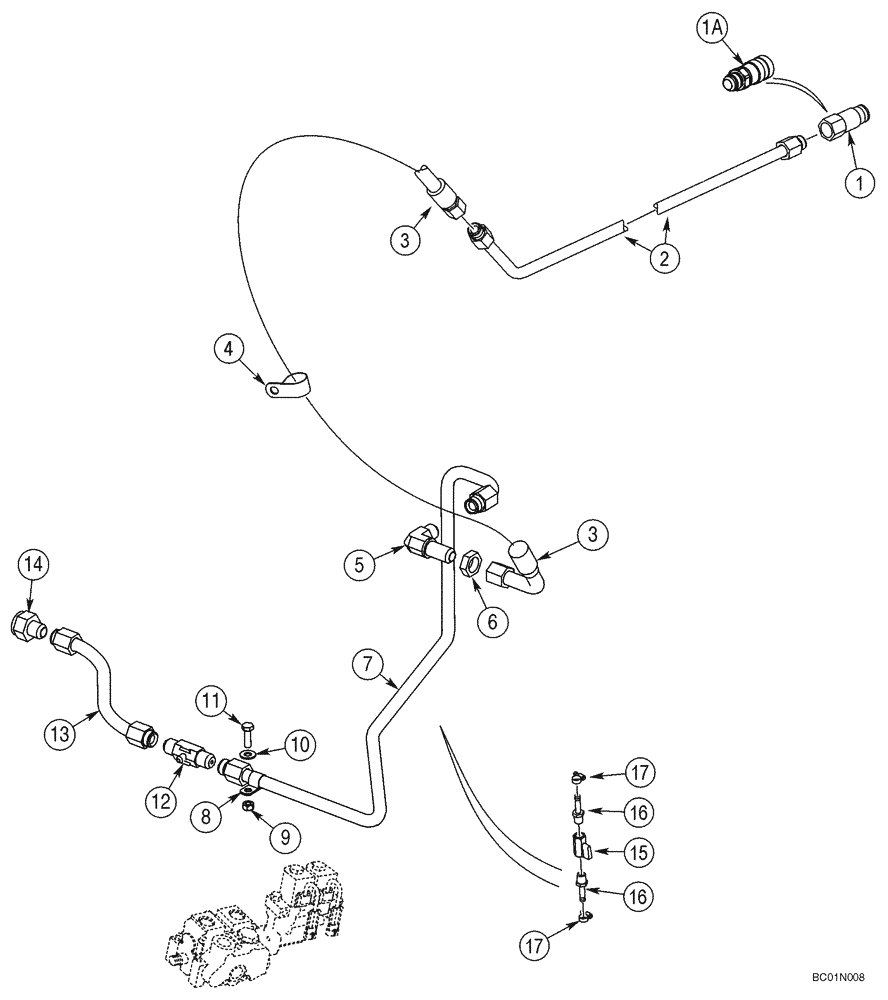

Запчасти Case IH 90XT (08-19) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

REF

INSTRUCTION

DRAIN LINES TO COUPLING

1шт.

1

394344A1

COUPLING

1/2 in; Male; Components Part Not Serviced Separately; If Used

1шт.

1a

419615A1

COUPLING, QUICK, FEM

3/8 in; Female; Components Part Not Serviced Separately; If Used

1шт.

2

413417A1

TUBE

Case Drain, Loader Arm

1шт.

3

401288A2

HOSE ASSY.

1800 mm (70-7/8 in); Case Drain, Loader Arm

1шт.

4

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

5

218-695

ELBOW,90 Degree Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x bkhd fl

1шт.

6

595460

BHD LOCK NUT,7/8" - 14

7/8

1шт.

7

419884A1

TUBE

Case Drain, Chassis

1шт.

8

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

9

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

10

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

12

218-1581

TEE,37º, 3/4"-16 x 7/16"-20, Br

For Attaching Parts; See Figure 08-17, Ref 17

1шт.

13

426612A1

TUBE

Case Drain

1шт.

14

218-785

REDUCER,37 Degree, 1 1/16"-12, Fem x 7/8"-14 Male

3/4 x 5/8; For Attaching Parts; See Figure 06-02, Ref 3A

1шт.

15

397431A1

VALVE

Poppet

1шт.

16

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

3/8 stem x PT

2шт.

17

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.
