Запчасти Case IH 90XT (08-15) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS

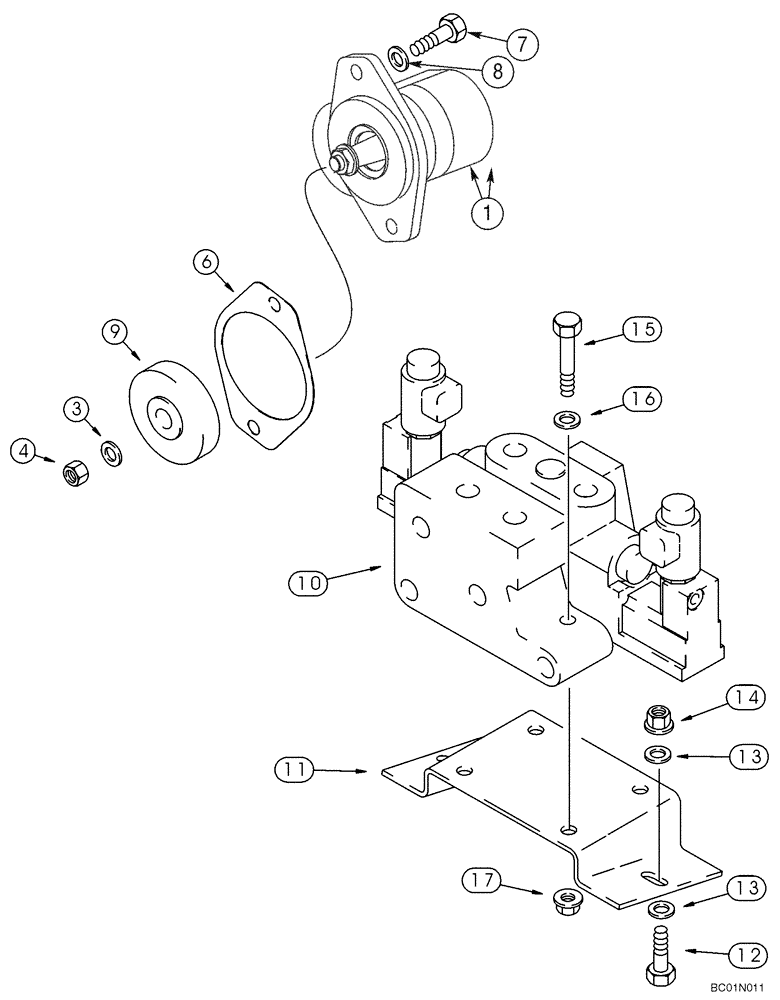

Схема запчастей Case IH 90XT - (08-15) - HYDRAULICS, ATTACHMENT - HIGH FLOW, GEAR (08) - HYDRAULICS
7
1
10
16
17
4
12
3
13
15
11
8
6
14
13
9

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

GEAR PUMP AND CONTROL VALVE MOUNTING

1шт.

1

323427A1

PUMP, HYDRAULIC

Incl. 361942A1

1шт.

361942A1

SEAL KIT

Incl. (1) Oil Seal, (2) Ring Seal, (1) Wearplate, (1) Wearplate, (1) Preload Seal, (1) Load Seal

1шт.

2

NSS

NOT SOLD SEPARAT

Seal, Shaft; Not Illustrated; Order 132967A1

2шт.

3

495-11059

WASHER,9/16"

19/32 x 1-5/32 x 3/32

1шт.

4

425-159

JAM NUT,Jam, 9/16"-18, G5

9/16 NF

1шт.

5

132967A1

SEAL KIT

Gear Pump; Not Illustrated

1шт.

6

J919601

GASKET

If Used

1шт.

7

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

8

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

2шт.

9

J924187

PINION

1шт.

10

227084A1

VALVE

See Figure 08-20

1шт.

11

232665A1

SUPPORT

1шт.

12

627-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

2шт.

13

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

4шт.

14

832-41412

NUT,M12 x 1.75, Cl 10

M12

2шт.

15

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

16

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

3шт.

17

832-41410

NUT,M10 x 1.5, Cl 10

3шт.

Выбрано товаров: 19
