Запчасти Case IH 90XT (08-14D) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON (08) - HYDRAULICS

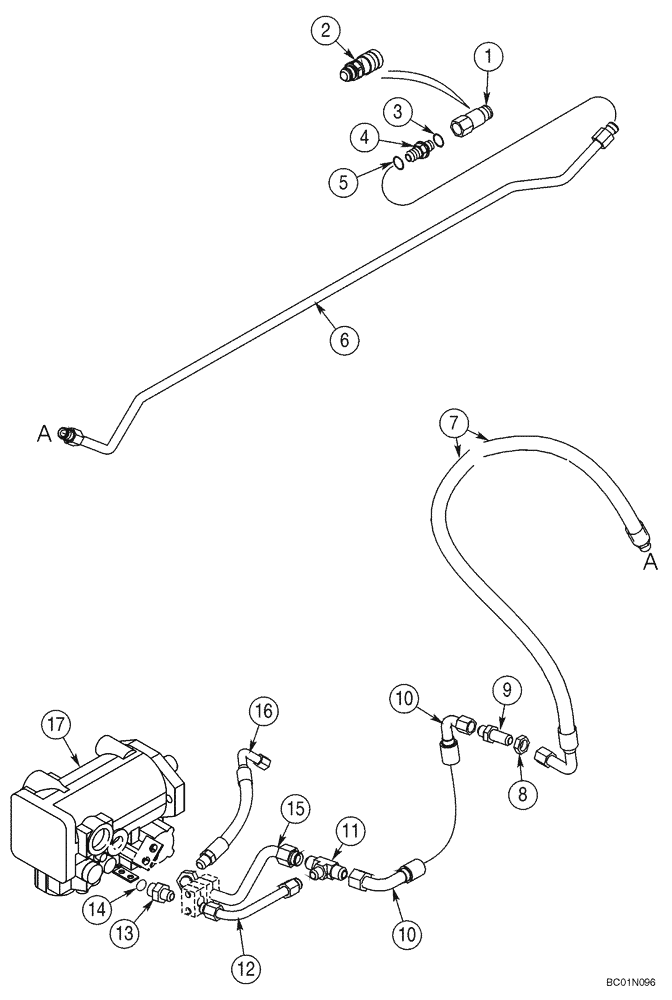

Схема запчастей Case IH 90XT - (08-14D) - HYDRAULICS, ATTACHMENT - HIGH FLOW, PISTON (08) - HYDRAULICS
14
4
7
5
15
9
8
13
6
10
1
10
11
16
2
12
17
3

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

DRAIN LINES FROM COUPLING

1шт.

1

393397A1

COUPLING

Male; Component Parts Not Serviced Separately; If Used

1шт.

2

419615A1

COUPLING, QUICK, FEM

3/8 in; Component Parts Not Serviced Separately; If Used

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x 0r; Incl. 5; If Used

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

277356A4

PIPE

1шт.

7

256704A2

HOSE ASSY.

1667 mm (65-5/8 in)

1шт.

8

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

9

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

7/8 fl x blkhd fl

1шт.

10

433532A2

HOSE ASSY.

670 mm (26-3/8 in); Case Drain

1шт.

11

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

1шт.

12

419022A1

TUBE

Return Case Drain

1шт.

13

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 0r; Incl.14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

419025A1

TUBE

Return Case Drain

1шт.

16

418795A1

HOSE ASSY.

660 mm (26 in); Case Drain High Flow

1шт.

17

237637A3

PUMP, HYDRAULIC,46 CC

See Figure 08-14F - 08-14H

1шт.

17

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP - N.A. Only

1шт.

Выбрано товаров: 19
