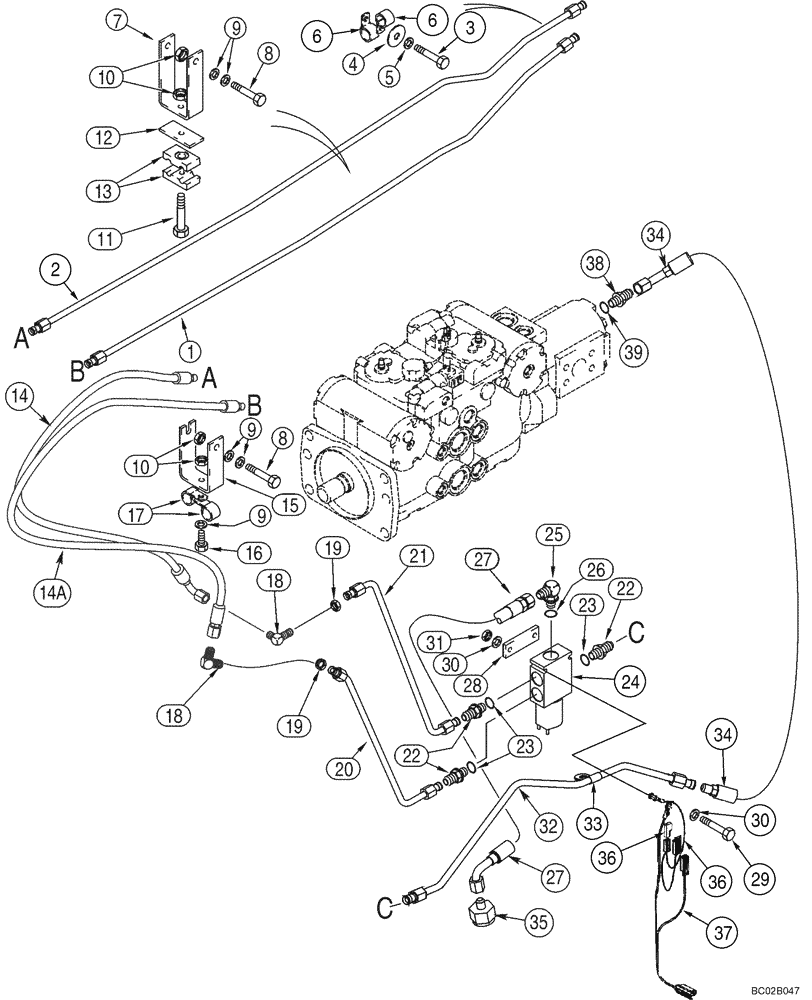

Запчасти Case IH 90XT (08-05) - HYDRAULICS - COUPLER SYSTEM (Feb 17 2012 2:32PM) (08) - HYDRAULICS

REF

INSTRUCTION

GEAR PUMP TO TUBES ON LOADER ARM

1шт.

1

283450A2

TUBE,1351, 131 mm Length

For Attaching Parts, See Figure 08-06, Ref 23

1шт.

2

296696A2

TUBE,1226, 83 mm Length

For Attaching Parts, See Figure 08-06, Ref 24

1шт.

3

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

4

240669A1

WASHER

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

7

259286A1

ANGLE

1шт.

8

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

13

1546024C1

CLAMP

2 piece

1шт.

14

259282A1

HYDRAULIC HOSE

1172 mm (46-1/4 in)

1шт.

14a

296699A1

HOSE ASSY.

1342 mm (52-7/8 in)

1шт.

15

259286A1

ANGLE

1шт.

16

259285A1

ANGLE

1шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

18

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

1/2 ID

2шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

9/16 fl x blkhd fl

2шт.

20

296698A2

TUBE

1шт.

21

259273A3

TUBE,377, 254 mm Length

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 23

4шт.

24

187505C91

VALVE

See Figure 08-13

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj Or; Incl. 26

1шт.

27

433358A2

HOSE ASSY.

485 mm (19-1/8 in)

1шт.

28

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

29

338413

BOLT,Hex, M6 x 60mm, Cl 8.8

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

31

832-41406

NUT,M6 x 1, Cl 8

2шт.

32

433361A2

TUBE

1шт.

33

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

34

275379A1

HOSE ASSY.

390 mm (15-3/8 in)

1шт.

35

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

3/4 x 3/8

1шт.

36

394910A1

HARNESS

Flyback Diode Jumper

1шт.

37

259347A1

HARNESS

Hydraulic Coupler; See Figure 04-08

1шт.

38

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 39

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
