Артикул
Название
Примечание
Количество

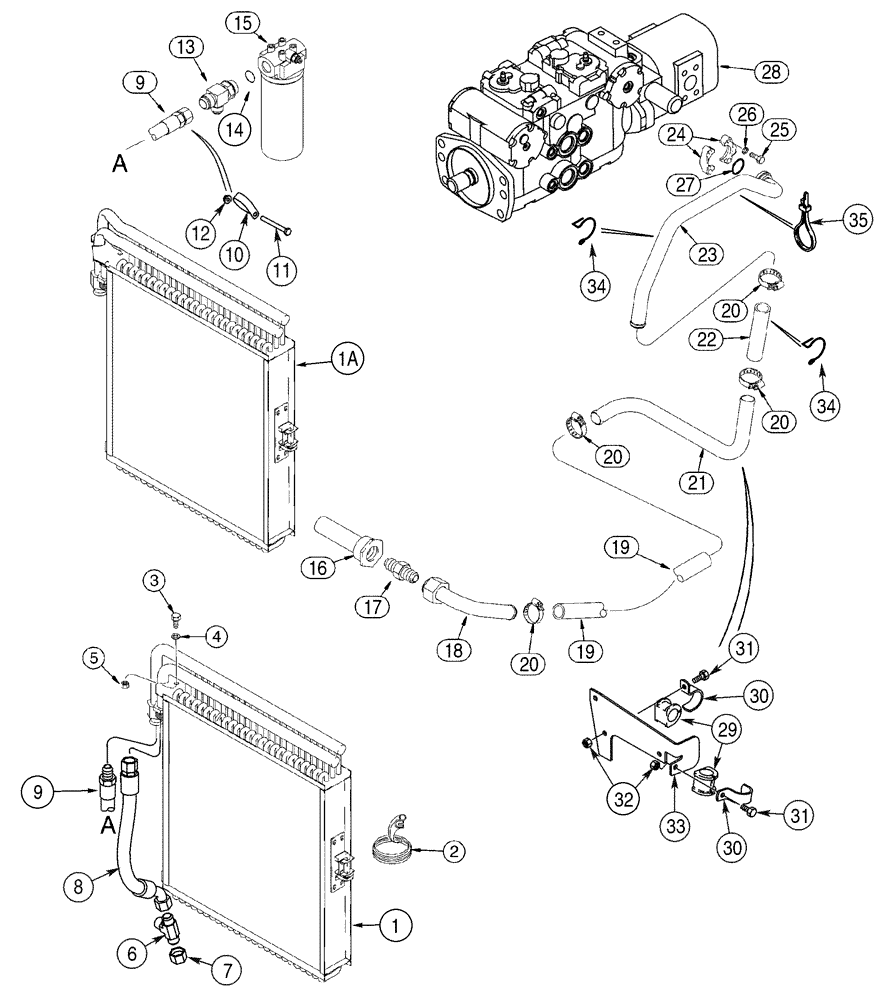

Oil Cooler To Tandem Pump and Filter
1шт.
1
237994A2
COOLER, OIL
North American Models; With Turbulators, Behr# BM20561 And Core Length Of 20-1/4"
1шт.
1a
301685A1
COOLER, OIL
Emissions Certified Engine; Without Turbulators, Behr# BM20566 And Core Length Of 21.03"
1шт.
1b
393188A1
OIL COOLER
European Models, Not Illustrated; Without Turbulators, Vender# 1E4958D And Core Length Of 20-1/4"
1шт.
2
230745A1
RUBBER SEAL,512mm L
512 mm, Replaces: 237994A1
8шт.
2
304908A1
SEAL
535 mm, European Models, With HVAC, Emissions Certified Engine
4шт.
2
230746A1
SEAL
485 mm, European Models
4шт.
3
614-10025
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
1шт.
3
614-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
Emissions Certified Engine, European Models
2шт.
5
832-41410
NUT,M10 x 1.5, Cl 10
2шт.
6
218-558
TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br
1шт.
7
218-758
CAP,37 Degree, 1 5/16"-12
1-5/16, Used With Ref. 9
7шт.
8
427037A1
HOSE ASSY.
660 mm (26 in), Oil Cooler To Tank
1шт.
9
242592A3
HOSE
1600 mm (63 in), North American Models
1шт.
9
431835A1
HOSE ASSY.
1725 mm (67-7/8 in), European Models
1шт.
10
515-23476
CLAMP,1 7/8", Insul, 3/8" Bolt
1-7/8 ID
1шт.
11
814-10095
BOLT,Hex, M10 x 1.5 x 95mm, Cl 8.8
M10 x 95
1шт.
12
825-51410
FLANGE NUT,M10, Flg Ser
1шт.
13
218-5069
HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB
Incl. Ref. 14
1шт.
Part of P/N 218-5069
1шт.
15
222756A2
FILTER ASSY
Return, See Figure 6-13
1шт.
16
189310A1
STRAINER ASSY.
1шт.
17
218-449
HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF
1-5/8 fl x 1-1/4 PT
1шт.
18
194853A1
TUBE,31.8 mm OD
1шт.
19
278772A1
HOSE ASSY.,31.8mm ID x 710mm L
710 mm (28 in)
1шт.
20
214-1424
HOSE CLAMP,#24, 1.06" - 2", Type F Worm
4шт.
21
256314A1
TUBE
1шт.
22
256406A1
HYDRAULIC HOSE
115 mm (4-1/2 in)
1шт.
23
276587A1
TUBE,238, 225 mm Length
1шт.
24
A12301
CLAMP,Half
2шт.
25
413-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5
4шт.
26
492-11044
LOCK WASHER,7/16"
4шт.
27
238-5222
O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro
1шт.
28
433903A1
PUMP
See Figure 6-15
1шт.
29
D67298
INSULATOR
2шт.
30
302287A1
CLAMP
2шт.
31
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
2шт.
32
832-41410
NUT,M10 x 1.5, Cl 10
2шт.
33
295628A1
SUPPORT
1шт.
34
418796A1
CABLE CLIP
No Longer Used
2шт.
35
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
1шт.
4
895-15010
WASHER,11mm ID x 24mm OD x 2mm Thk
4шт.
Выбрано товаров: 43
