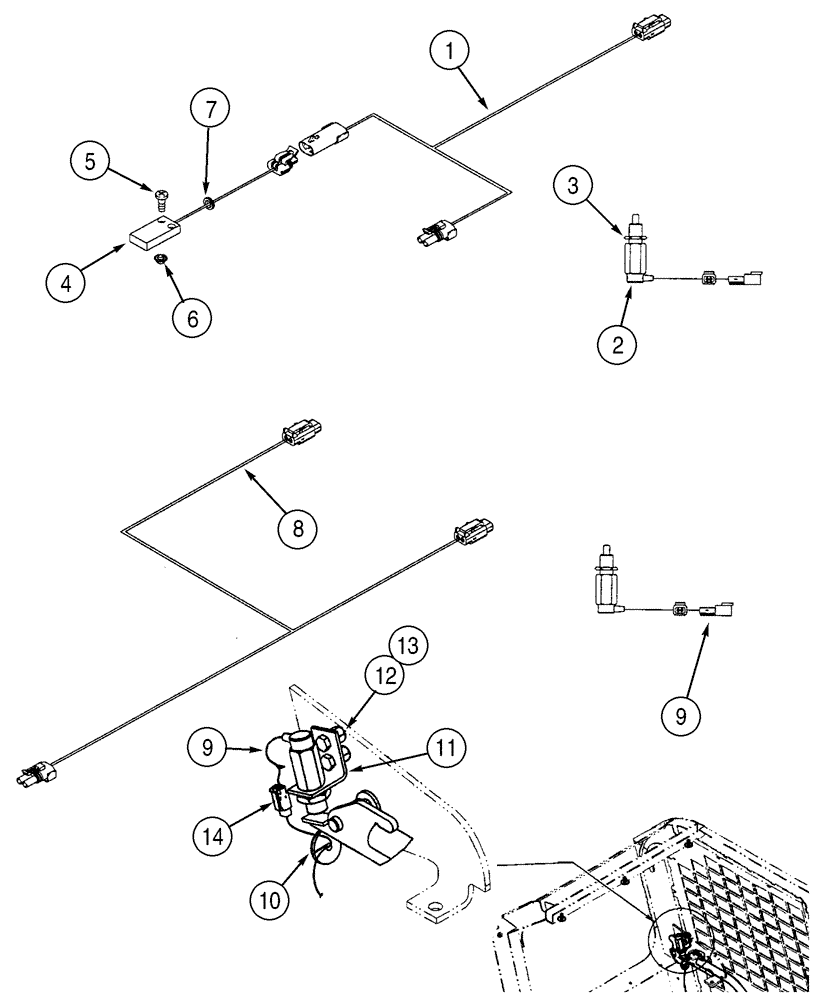

Запчасти Case IH 90XT (04-19) - HARNESS SEAT BAR, NORTH AMERICAN ONLY -JAF0245805, EUROPEAN ONLY - JAF0274201 (04) - ELECTRICAL SYSTEMS

N.A. Only -JAF0245805

1шт.

Europe Only -JAF0274201

1шт.

1

301405A1

CONNECTOR, ELEC

CONNECTOR Seat Harness To Sensor Switch

1шт.

2

280925A1

SWITCH

Sensor, Interlock

1шт.

3

832-10416

NUT,M16 x 2, Cl 8

1шт.

4

198310A1

SWITCH

Seat Bar

1шт.

5

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

2шт.

6

193-1003

NUT,Keps, w/LW,#6-32

2шт.

7

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

N.A. Only, JAF0245806 -, Europe Only, JAF0274202 -; No Longer Used, Order 87530614

1шт.

7

87530614

GROMMET

1шт.

8

321390A1

HARNESS

Seat Bar, Interlock

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock

2шт.

KIT

1шт.

N.A. Only -JAF0320049

1шт.

Europe Only -JAF0274261

1шт.

333743A2

CONNECTION,ELECTRIC

Seat Bar, Consists Of: 9- 19, Replaces: 333743A1

1шт.

9

313329A1

SWITCH

Seat Bar, Interlock

1шт.

10

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

Interlock, If Equipped

1шт.

11

334243A1

SUPPORT

If Equipped

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

If Equipped

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

If Equipped

2шт.

14

337646A1

HARNESS

If Equipped

1шт.

15

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

Not Illustrated, See Figure 9-35, 9-36

2шт.

16

496-21053

WASHER,17/32" x 1 1/16" x .134"

Not Illustrated, See Figure 9-35, 9-36

2шт.

17

D143415

SNAP RING,0.50” ID, Klipring

1/2, Not Illustrated, See Figure 9-35, 9-36

2шт.

18

318038A1

BAR ASSY.

Not Illustrated, See Figure 9-35, 9-36

1шт.

19

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Not Illustrated, See Figure 9-41

8шт.
