Запчасти Case IH 90XT (04-17) - HARNESS CAB, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (04) - ELECTRICAL SYSTEMS

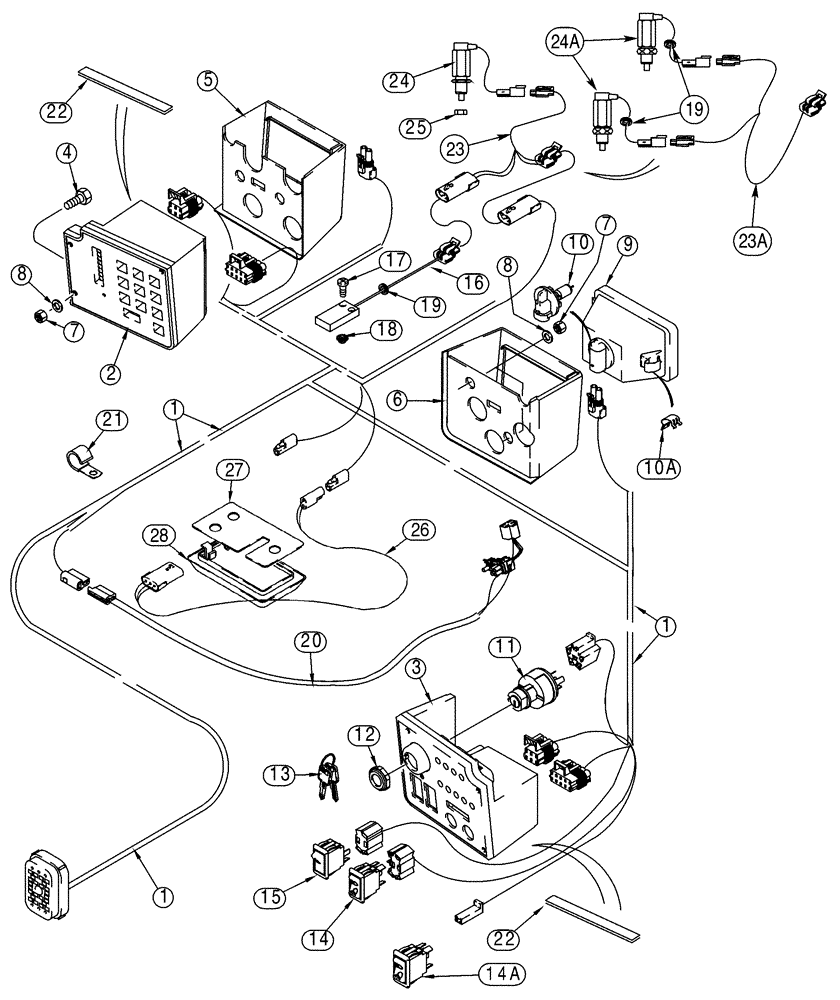

Схема запчастей Case IH 90XT - (04-17) - HARNESS CAB, NORTH AMERICAN MODELS -JAF0320049, EUROPEAN MODELS -JAF0274261 (04) - ELECTRICAL SYSTEMS
1
24a
10a
18
28
2
12
27
6
10
22
19
1
7
22
5
21
16
24
8
25
20
14
19
8
14a
11
1
15
17
26
23a
7
23
13
4
9
3

Артикул

Название

Примечание

Количество

1

227762A4

HARNESS

Cab, Replaces: 227762A3

1шт.

2

189491A9

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Left Hand, Replaces: 189491A7, 189491A8

1шт.

3

189492A3

PANEL, INSTRUMENTS

PANEL, INSTRUMENT Right Hand, Replaces: 189492A2

1шт.

4

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

7шт.

5

199701A1

SUPPORT

Left Hand

1шт.

6

199702A1

SUPPORT

Right Hand

1шт.

7

832-41306

NUT,M6 x 1, Cl 10

4шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

4шт.

9

222004A2

HEADLIGHT,Halogen, 12V, 50W, Clear

Includes: Ref. 10, 10A

2шт.

10

259702A1

BULB

1шт.

Part of P/N 222004A2

1шт.

10a

259701A1

CLIP,ELECTRICAL

1шт.

Part of P/N 222004A2

1шт.

282775A1

IGNITION SWITCH

Consists Of: 11, 12, 13; Replaces D134737 Switch Which Used A77313 Metal Key Without Padding Used On Some Models

1шт.

11

NSS

NOT SOLD SEPARAT

SWITCH Ignition

1шт.

Part of P/N 282775A1

1шт.

12

A77314

NUT

1шт.

Part of P/N 282775A1

1шт.

13

1964831C2

IGNITION KEY

Padded

1шт.

Part of P/N 282775A1

1шт.

14

223836A1

LIGHT SWITCH

Lamp

1шт.

14a

230099A1

SWITCH

Lamp, Europe Only

1шт.

15

223838A1

CONTROL

Cold Start

1шт.

16

198310A1

SWITCH

Seat Bar, N.A. Only, -JAF0245805, Europe Only, -JAF0274201, See Figure 4-19

1шт.

17

140-103

SCREW,Cross Pan Hd, #6 - 32 x 3/4"

Used with 16

2шт.

18

193-1003

NUT,Keps, w/LW,#6-32

Used with 16

2шт.

19

248-1237

GROMMET,1/4" ID x 1" Groove Dia, Diag Cut

No Longer Used, Order 87530614

3шт.

19

87530614

GROMMET

3шт.

20

255732A1

HARNESS

Wiper Motor, See Figure 4-23

1шт.

21

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

22

295026A1

SEAL

305 mm (12 in), Models With Heater, Models With Air Conditioning

2шт.

23

301405A1

CONNECTOR, ELEC

CONNECTOR Interlock, If Used

1шт.

23a

321390A1

HARNESS

Interlock, Switch, If Used

1шт.

24

280925A1

SWITCH

Interlock, Also Order 832-10416, If Used

1шт.

24a

313329A1

SWITCH

Seat Bar, Interlock, If Used

2шт.

25

832-10416

NUT,M16 x 2, Cl 8

Used with 280925A1

1шт.

26

324882A1

HARNESS

Lamp, Models With Deluxe Heater

1шт.

27

322783A1

HOLDER

Models With Deluxe Heater

1шт.

28

325271A1

COURTESY LIGHT

DOME LIGHT Models With Deluxe Heater

1шт.

Выбрано товаров: 39
