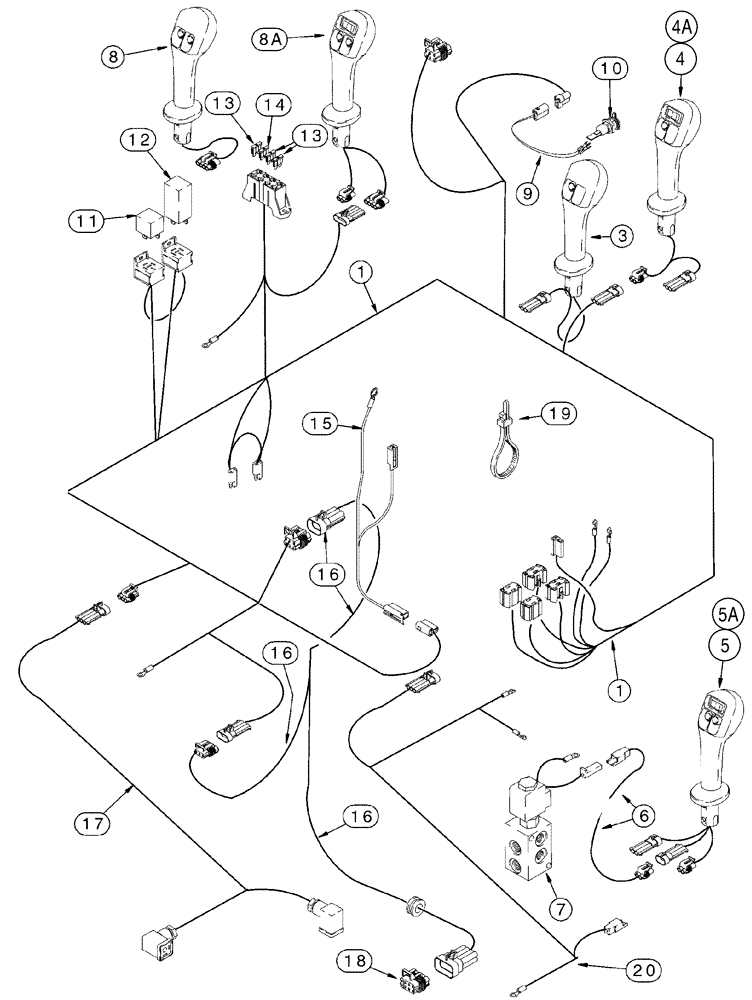

Запчасти Case IH 90XT (04-13) - HARNESS CHASSIS OPTIONS (04) - ELECTRICAL SYSTEMS

1

230101A6

HARNESS

Chassis Options, Replaces: 230101A5, For Models With Rotating Beacons, Order 377812A1

1шт.

1

377812A1

HARNESS

Chassis Options, With Flasher Connectors, If Used

1шт.

1

400180A1

HARNESS

Chassis Options, With Coupler Timer, If Used

1шт.

3

235766A2

HANDLE

Right Hand, Horn, See Figure 4-25

1шт.

4

233436A2

HANDLE

Right Hand, Horn, Turn Signal, See Figure 4-25, If Used

1шт.

4a

379500A1

HANDLE

Right Hand, Horn, Turn Signal, See Figure 4-25, If Used

1шт.

5

308598A1

HANDLE

Right Hand, Horn, Turn Signal, Ride Control, See Figure 4-25, If Used

1шт.

5a

379501A1

HANDLE

Right Hand, Horn, Turn Signal, Ride Control, See Figure 4-25, If Used

1шт.

6

310838A1

HARNESS

Ride Control

1шт.

7

308023A1

VALVE

Ride Control

1шт.

8

227983A2

HANDLE

Left Hand, Brake, Two Speed, See Figure 4-27

1шт.

8a

233435A3

HANDLE

Left Hand, Brake, Two Speed, High Flow, See Figure 4-27

1шт.

9

276912A1

HARNESS

Accessory Outlet

1шт.

10

142211A1

SOCKET

1шт.

11

D128310

RELAY

30 amp, Accessory Power

1шт.

12

309001A1

FLASHER UNIT,12V

Hazard, If Equipped

1шт.

13

A149800

FUSE,10 Amp

10 amp

3шт.

14

A149803

FUSE,25 Amp

25 amp

1шт.

15

259347A1

HARNESS

Hydraulic Coupler, See Figure 8-10, 8-11

1шт.

16

244893A1

HARNESS

Front Auxiliary Controls

1шт.

16

426764A1

HARNESS

Front Auxiliary Controls, N.A. Only, JAF0320050-, Europe Only, JAF0274262-, See Figure 4-22

1шт.

17

238616A1

HARNESS

High Flow, Gear, If Equipped, See Figure 8-50

1шт.

18

256350A1

CONNECTOR, ELEC

CONNECTOR See Note

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

20

241139A2

HARNESS

High Flow, Piston, If Equipped

1шт.

Note: Required For Attachments That Will Mount To The Front Auxiliary Controls Harness, Ref. 16 Shown Above.

1шт.
