Запчасти Case IH 90XT (04-08) - HARNESS CHASSIS NORTH AMERICAN MODELS JAF0320050-/EUROPEAN MODELS JAF0274262-, FRONT (04) - ELECTRICAL SYSTEMS

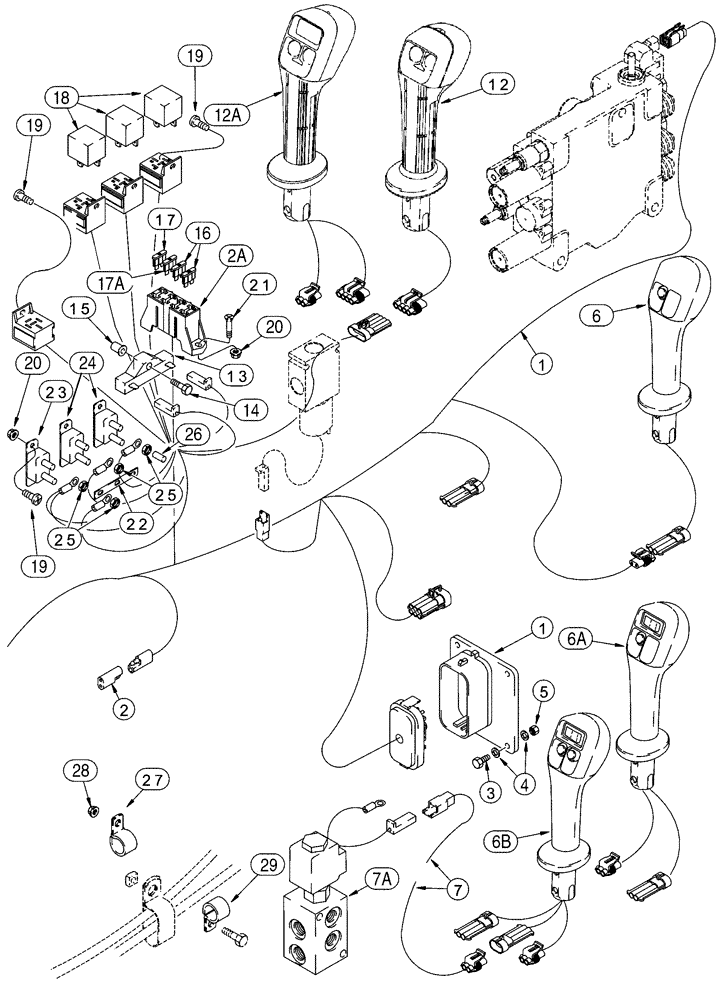

Схема запчастей Case IH 90XT - (04-08) - HARNESS CHASSIS NORTH AMERICAN MODELS JAF0320050-/EUROPEAN MODELS JAF0274262-, FRONT (04) - ELECTRICAL SYSTEMS
6
22
20
26
4
19
6a
6b
1
25
17
5
18
28
12
21
12a
3
7
19
24
1
29
13
23
17a
25
7a
2a
15
14
16
27
19
20
2

Артикул

Название

Примечание

Количество

1

419621A1

HARNESS

Chassis, Includes: Ref 2, 2A, See Figure 4-12

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

1шт.

Part of P/N 419621A1

1шт.

2a

245435C1

FUSE HOLDER

1шт.

Part of P/N 419621A1

1шт.

3

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

5

832-41406

NUT,M6 x 1, Cl 8

2шт.

6

235766A2

HANDLE

Right Hand, Horn, See Figure 4-25

1шт.

6a

379500A1

HANDLE

Right Hand, Horn, Turn Signal, See Figure 4-25

1шт.

6b

379501A1

HANDLE

Right Hand, Horn, Turn Signal, Ride Control, See Figure 4-25

1шт.

7

310838A1

HARNESS

Ride Control

1шт.

7a

308023A1

VALVE

Ride Control

1шт.

9

242306A1

SWITCH

Operator Presence, Not Illustrated, See Figure 9-30

1шт.

12

227983A2

HANDLE

Left Hand, Brake, Two Speed

1шт.

12a

233435A3

HANDLE

Left Hand, Brake, Two Speed, High Flow

1шт.

13

107558C1

RESISTOR

25 ohm

1шт.

14

190-104

SCREW,Phil Pan Hd, #10 - 32 x 1 1/2"

No. 10 NF x 1-1/2

1шт.

15

D122634

ISOLATOR,12.7mm OD x 14.1mm L

1шт.

16

A149800

FUSE,10 Amp

10 amp

2шт.

17

A149802

FUSE

20 amp

1шт.

17a

A149803

FUSE,25 Amp

25 amp

1шт.

18

D128310

RELAY

30 amp

3шт.

19

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

20

825-5145

NUT,M5, Flg Ser

7шт.

21

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

22

245861C1

BAR

1шт.

23

303886A1

BREAKER

40 amp

2шт.

24

303884A1

BREAKER

15 amp

1шт.

24

303884A1

BREAKER

15 amp

1шт.

25

225-14210

NUT,#10-32

7шт.

26

247333A1

CAP

6шт.

27

A37179

CLIP

2шт.

28

825-5146

SERRATED NUT,M6, Flg Ser

2шт.

29

515-22270

CLAMP,1-1/16", Insul, 5/16" Bolt

1-1/16 ID

1шт.

Выбрано товаров: 35
