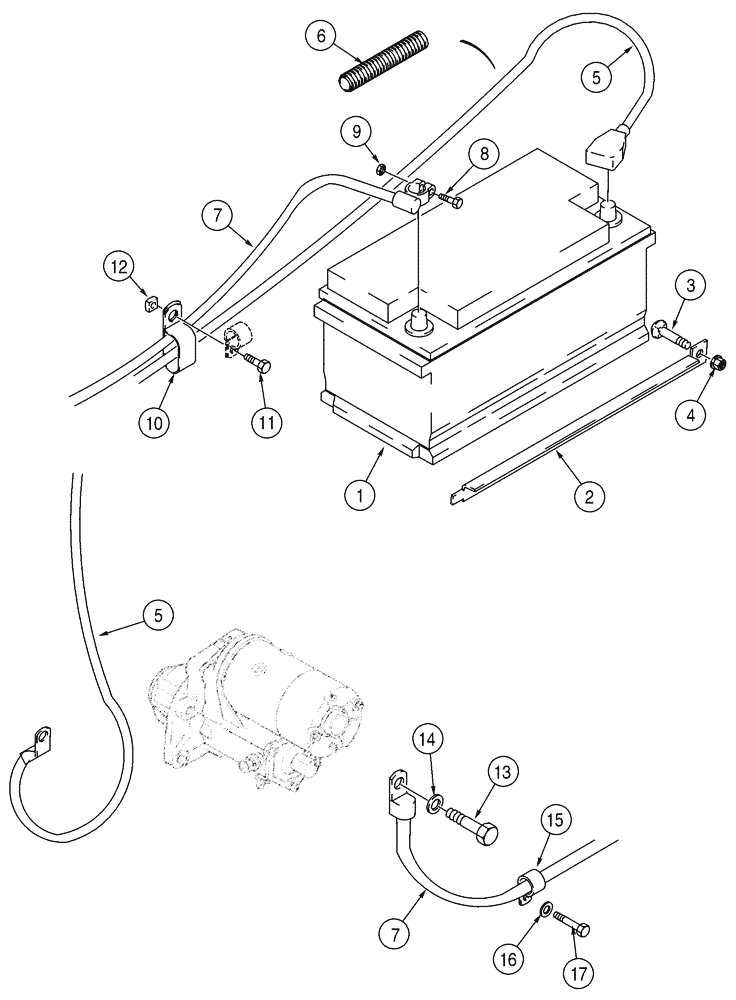

Запчасти Case IH 90XT (04-04) - BATTERY - CABLES (04) - ELECTRICAL SYSTEMS

1

B4925

WET BATTERY

12V; 700CCA; Dry; Wet Battery Used In Production; Order From Ship Direct; Replaces 234050A1

1шт.

1

B4960

WET BATTERY

850CCA; If Used

1шт.

2

221592A1

STEM

1шт.

3

811-8035

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 35mm, Cl 8.8

M8 x 35

1шт.

4

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

5

L127638

CABLE

2100 mm, Positive, Replaces: L126109, N.A. Only, -JAF0320049, Europe Only, -JAF0274261

1шт.

5

429505A1

CABLE

Positive, N.A. Only, JAF0320050-, Europe Only, JAF0274262-

1шт.

6

279946A1

LOOM

1шт.

7

338030A1

CABLE ASSY.

Negative, Includes: Ref. 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

BOLT

1шт.

Part of P/N 338030A1

1шт.

9

NSS

NOT SOLD SEPARAT

NUT Lock

1шт.

Part of P/N 338030A1

1шт.

10

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

1шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

12

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

M8

1шт.

13

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

14

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

1шт.

15

515-22349

CLAMP,1 3/8", Insul, 5/16" Bolt

1-3/8 ID, N.A. Only, -JAF0320049, Europe Only, -JAF0274261

1шт.

15

515-24349

CLAMP,1 3/8", Insul, 7/16" Bolt

N.A. Only, JAF0320050-, Europe Only, JAF0274262-

1шт.

16

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1.6 mm

1шт.

17

43130

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.
