Запчасти Case IH 90XT (04-03) - MOUNTING STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

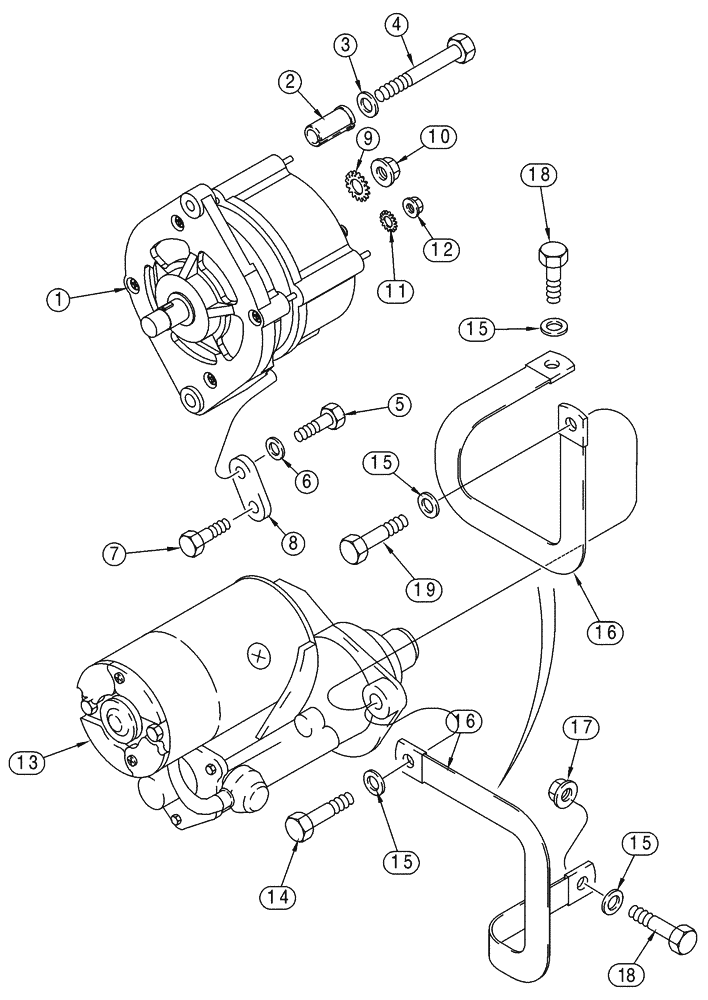

Схема запчастей Case IH 90XT - (04-03) - MOUNTING STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS
16
3
17
6
2
12
15
5
10
18
1
16
15
8
7
18
4
11
19
15
9
13
15
14

Артикул

Название

Примечание

Количество

1

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Figure 4-02

1шт.

1

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

2

J902469

SPACER

1шт.

4

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

5

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

7

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

8

J903089

SUPPORT

1шт.

9

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

10

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

11

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.

12

825-5145

NUT,M5, Flg Ser

1шт.

13

1987559C1

STARTING MOTOR

See Figure 4-01

1шт.

13

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter, 12 volt, 2.5KW

1шт.

13

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

13

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

13

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

14

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

16

D73383

STRAP

Ground

1шт.

17

825-51410

FLANGE NUT,M10, Flg Ser

If used

1шт.

18

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

3

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

15

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 23
