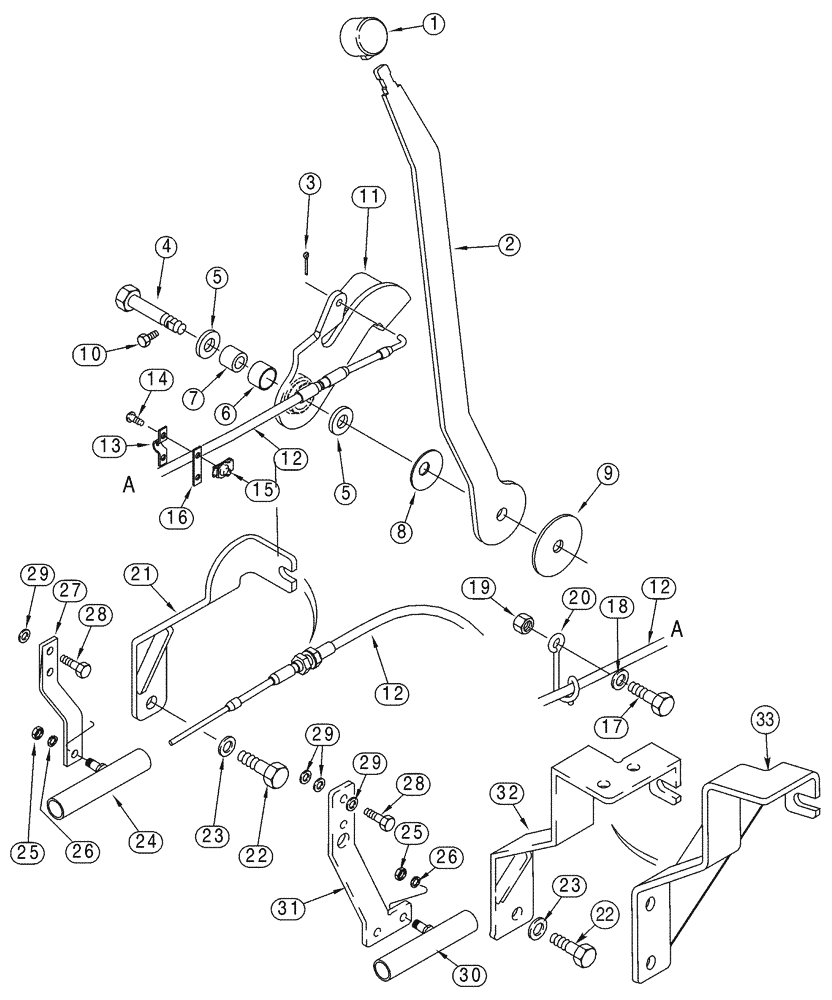

Запчасти Case IH 90XT (03-03) - CONTROLS THROTTLE North America JAF0245225 - (03) - FUEL SYSTEM

1

A177436

KNOB

1шт.

2

186904A1

CONTROL LEVER

Hand Operated

1шт.

3

432-48

COTTER PIN,1/16" x 1/2"

1шт.

4

805-12060

BOLT,Hex, M12 x 60mm, Cl 10.9

M12 x 60; 10.9

1шт.

5

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

6

186905A1

BUSHING

1шт.

7

187035A2

SLEEVE

1шт.

8

R14771

WASHER

1шт.

9

1342374C1

DISC

1шт.

10

614-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8, Full Thd

1шт.

11

186908A2

LEVER

Foot Operated

1шт.

11

87352487

LEVER

Lever, Control, Foot Operated; Replaces 186908A2

1шт.

12

296281A1

CABLE,1828.8mm L

1шт.

13

304818A1

COLLAR CLAMP

1шт.

14

840-1412

SCREW,Hex Skt, M4 x 12mm, Cl 4.8

2шт.

15

833-40304

SPRING NUT,M4, U

M4

2шт.

16

L40315

SHIM,5.55mm ID x 12.7mm OD x 2.28mm Thk

1шт.

17

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

If used

1шт.

17

811-8025

BOLT,Sht Sq Nk, M8 x 1.25 x 25mm, Cl 8.8

M8 x 25, If Used

1шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

20

236217A1

CRADLE

1шт.

21

303241A1

SUPPORT

Used With 24, 27, 29

1шт.

22

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

23

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm

2шт.

24

278183A1

BALL JOINT

Used With 21, 27, 29

1шт.

25

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

26

492-11025

LOCK WASHER,1/4"

1шт.

27

284932A2

LEVER

Accelerator, Used With 21, 24, 29

1шт.

28

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

29

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Used with 21, 24, 27

6шт.

30

1974525C2

BALL JOINT

Replaces: 1974525C1, Used With 31, 32

1шт.

31

346996A1

LEVER

Used With 30, 32

1шт.

32

321881A1

SUPPORT

Used With 30, 31, No Longer Used, Order 408116A1

1шт.

33

408116A1

SUPPORT

Used With 30, 31

1шт.

18

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
