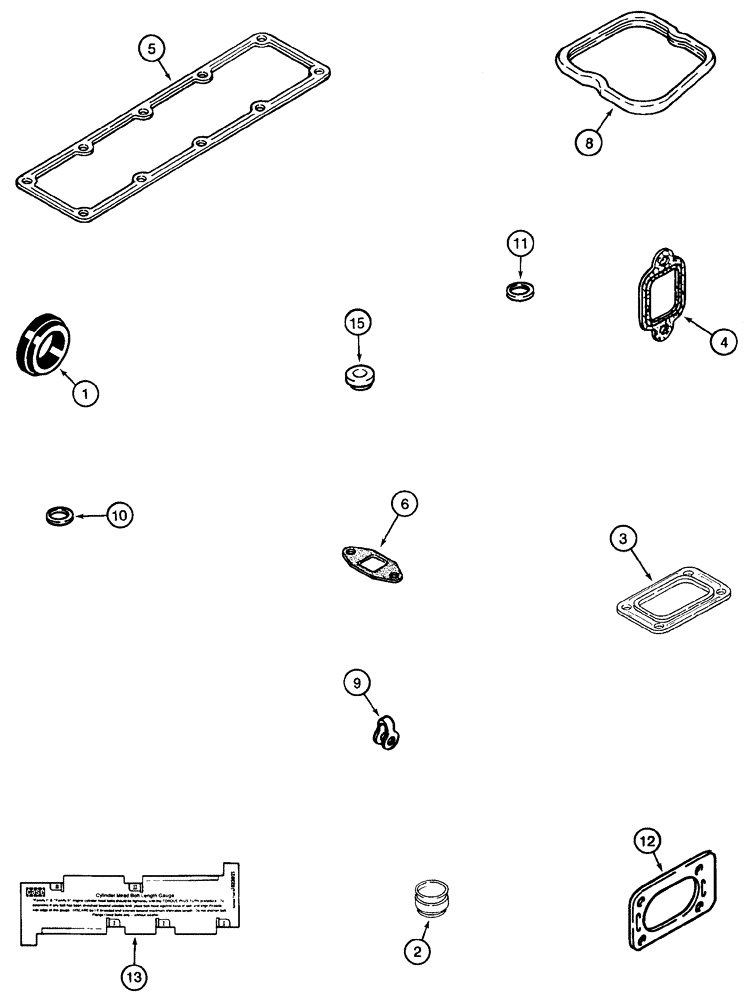

Запчасти Case IH 90XT (02-35) - GASKET KIT NORTH AMERICA JAF0245225 - VALVE GRIND, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

A77870

SEAL PACKAGE

Consists Of: 1 -15, No Longer Available, Order A77975, See Figure 2-36

1шт.

1

J923331

GASKET

See Figure 2-22

1шт.

2

J901097

SEAL

No Longer Available, Order J921640, See Figure 2-24

4шт.

2

J921640

SEAL

See Figure 2-24

4шт.

3

J919369

GASKET,0.5mm Thk

See Figure 2-16

1шт.

4

J927154

GASKET,0.38mm Thk

Replaces: J905443, See Figure 2-14

4шт.

5

J938153

MANIFOLD GASKET,0.8mm Thk

See Figure 2-14, Ref. 8

1шт.

6

J285747

GASKET

Replaces: J931350, See Figure 2-16

1шт.

8

J930906

GASKET

See Figure 2-22

4шт.

9

J903380

SEAL

See Figure 3-07

4шт.

10

J906659

SEAL

7 mm, See Figure 3-07

4шт.

11

J909356

SEAL,Square, 1.68mm Thk x 15.6mm ID, -16

See Figure 3-12

4шт.

12

J914856

GASKET,1.02mm Thk

If Equipped

1шт.

13

J823921

GAUGE

1шт.

15

J928406

ISOLATOR

See Figure 2-22

4шт.
