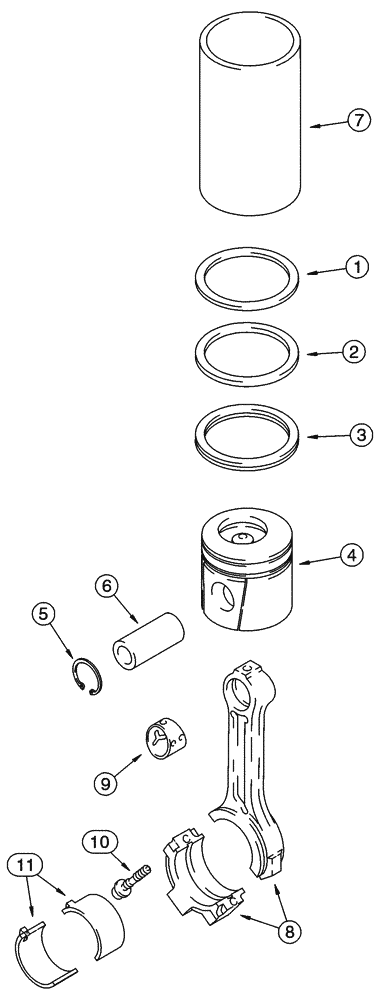

Запчасти Case IH 90XT (02-33) - PISTONS CONNECTING RODS NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
Standard, Consists Of: J802746, 1 - 5
4шт.
J802746
PISTON RING SET
Standard, Consists Of: 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Standard
1шт.
5
J901706
RING
2шт.
6
J919053
PISTON PIN
1шт.
J802422
PISTON RING SET
0.5 mm, Oversize, Consists Of: 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Oversize 0.5 mm
1шт.
5
J901706
RING
2шт.
6
J919053
PISTON PIN
1шт.
J802765
PISTON & RINGS KIT
1.0 mm, Oversize, Consists Of: J802423, 1 - 5
4шт.
J802423
PISTON RING SET
1.0 mm, Oversize, Consists Of: 1 - 5
1шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Oversize 1.0 mm
1шт.
5
J901706
RING
2шт.
6
J919053
PISTON PIN
1шт.
7
J904166
SLEEVE
Use With J802747
1шт.
J942581
ROD, CONNECTING
Consists Of: 8 - 10
4шт.
JR942581
REMAN-CONNECTING ROD
Reman for New PN J942581
4шт.
JC901569
CORE-ROD CONNECTING
Core-Connecting Rod
4шт.
84145405R
REMAN-CONNECTING ROD
90XT, Reman For New PN J942581
4шт.
84145405C
CORE-ROD CONNECTING
Return Number
4шт.
8
NSS
NOT SOLD SEPARAT
ROD
1шт.
Part of P/N J942581
1шт.
9
J941476
BUSHING
1шт.
Part of P/N J942581
1шт.
10
J900919
BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9
M11 x 59
2шт.
Part of P/N J942581
1шт.
11
A77465
BEARING SET
Standard
4шт.
11
A77466
BEARING SET
0.25 mm, Oversize
4шт.
11
A77467
BEARING LINER
0.50 mm, Oversize
4шт.
11
A77468
BEARING SET
0.75 mm, Oversize
4шт.
11
A77469
BEARING SET
1.0 mm, Oversize
4шт.
Выбрано товаров: 41
