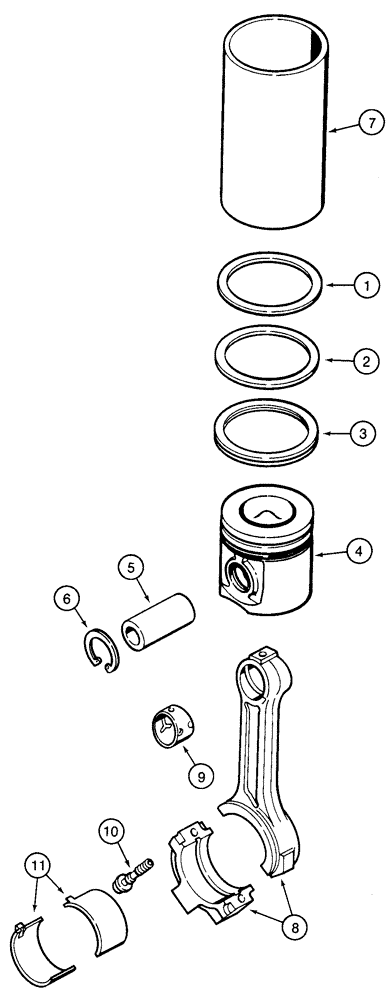

Запчасти Case IH 90XT (02-32) - PISTONS CONNECTING RODS NORTH AMERICA/EUROPE - JAF0245224, 4T-390 ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A77730
PISTON,104MM PISTON DIAMETER
Standard, Consists Of: A77727, 1 - 6
4шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Standard
1шт.
5
J901793
PISTON PIN
1шт.
6
J901706
RING
2шт.
A77731
PISTON & RINGS KIT
Oversize 0.5 mm, Consists Of: A77728, 1 - 6
4шт.
A77728
PISTON RING SET
Oversize 0.5 mm, Consists Of: 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Oversize 0.5 mm
1шт.
5
J901793
PISTON PIN
1шт.
6
J901706
RING
2шт.
A77732
PISTON
Oversize 1.0 mm, Consists Of: A77729, 1 - 6
4шт.
A77729
PISTON RING SET
Oversize 1.0 mm, Consists Of: 1 - 6
1шт.
1
NSS
NOT SOLD SEPARAT
RING Top
1шт.
2
NSS
NOT SOLD SEPARAT
RING Middle
1шт.
3
NSS
NOT SOLD SEPARAT
RING Bottom
1шт.
4
NSS
NOT SOLD SEPARAT
PISTON Oversize 1.0 mm
1шт.
5
J901793
PISTON PIN
1шт.
6
J901706
RING
2шт.
7
J904166
SLEEVE
Use With A77730
1шт.
JR925232
ROD
Remanufactured, N.A. Only
1шт.
JC901569
CORE-ROD CONNECTING
CORE-CONNECTING ROD N.A. Only
1шт.
J925232
ROD, CONNECTING
Consists Of: 8 - 10
4шт.
84145405R
REMAN-CONNECTING ROD
90XT, Reman For New P/N J925232
4шт.
84145405C
CORE-ROD CONNECTING
Return Number
1шт.
8
NSS
NOT SOLD SEPARAT
ROD
1шт.
Part of P/N J925232
1шт.
9
J901085
BUSHING
1шт.
Part of P/N J925232
1шт.
10
J900919
BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9
M11 x 59
2шт.
Part of P/N J925232
1шт.
11
A77465
BEARING SET
Standard
4шт.
11
A77466
BEARING SET
0.25 mm, Oversize
4шт.
11
A77467
BEARING LINER
0.50 mm, Oversize
4шт.
11
A77468
BEARING SET
0.75 mm, Oversize
4шт.
11
A77469
BEARING SET
1.0 mm, Oversize
4шт.
Выбрано товаров: 41
