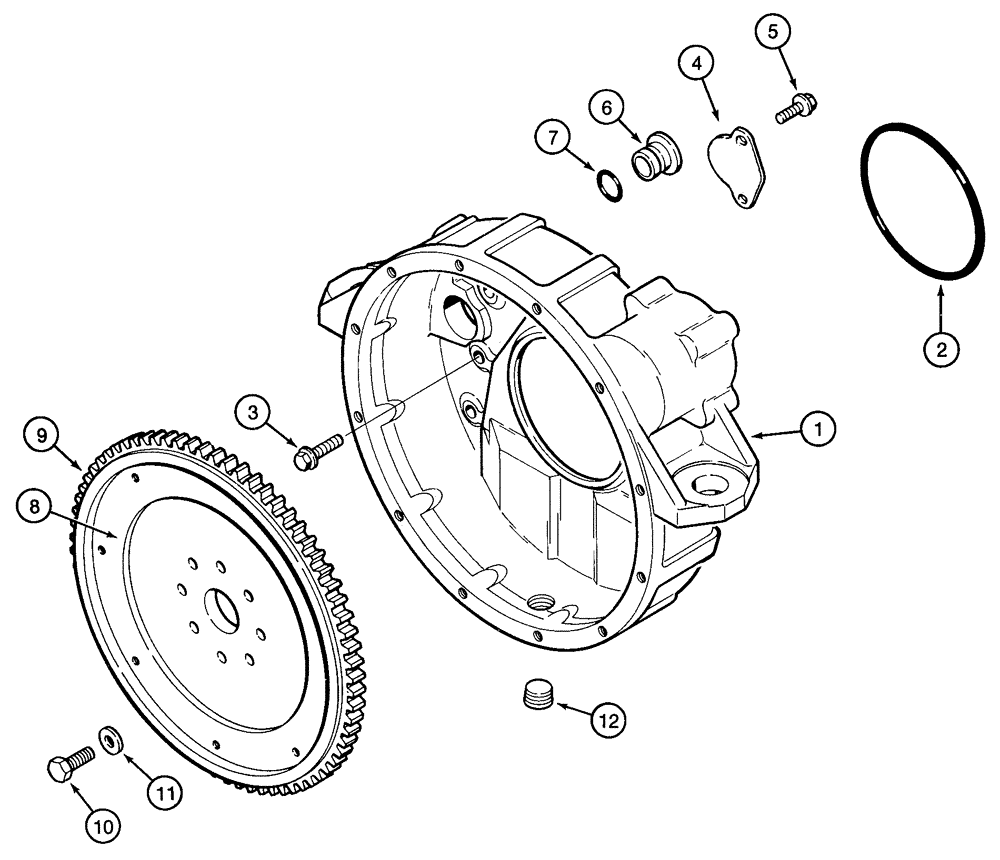

Запчасти Case IH 90XT (02-30) - FLYWHEEL AND HOUSING NORTH AMERICA/EUROPE - JAF0245224, 4T-390 ENGINE (02) - ENGINE

1

J933392

HOUSING

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

8шт.

4

J925234

PLATE

1шт.

5

J912072

SELF-TAP SCREW

M8 ST x 15

2шт.

6

J910248

PLUG

1шт.

7

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

8

J902569

FLYWHEEL

Consists Of: 9

1шт.

9

J901774

GEAR,Flywheel

159 T

1шт.

Part of P/N J902569

1шт.

10

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

8шт.

11

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

8шт.

12

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.
