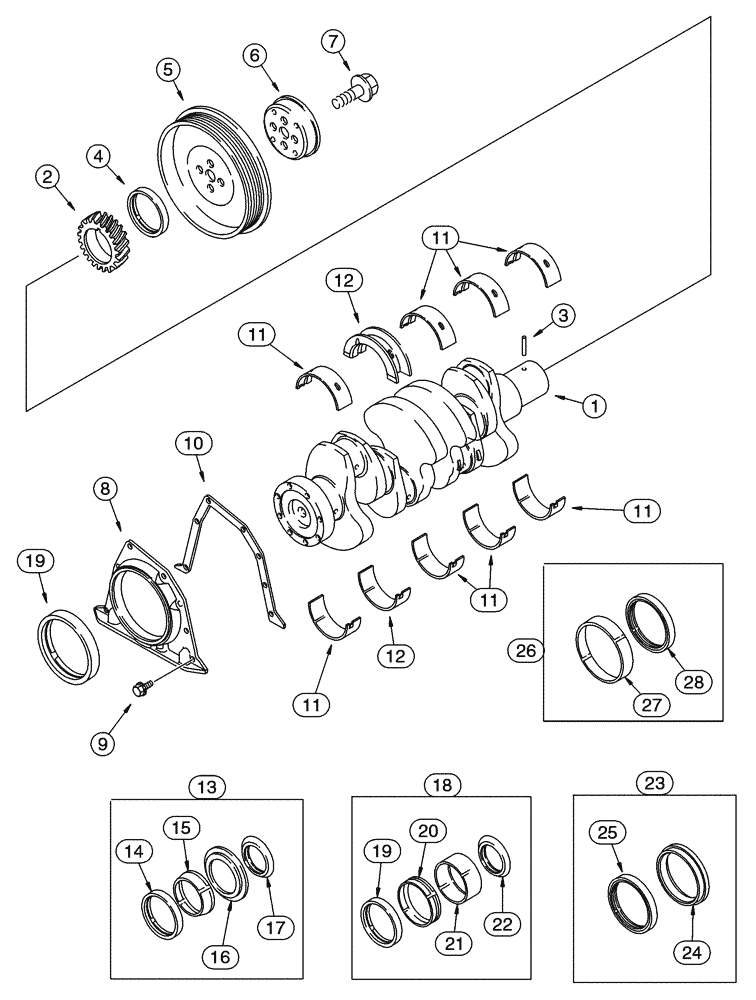

Справочник запчастей Case IH 90XT (02-29) - CRANKSHAFT NORTH AMERICA/EUROPE - JAF0245224, 4T-390 ENGINE (02) - ENGINE со схемами

4T-390 Engine

1шт.

JR908031

CRANKCASE

Remanufactured, N.A. Only, Replaces: JR918323

1шт.

J929036R

REMAN-CRANKSHAFT

90XT, Reman for New P/N JR908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

JC908031

CORE-CRANKSHAFT

N.A. Only

1шт.

1

J908031

CRANKSHAFT

Consists Of: 2 and 3, Replaces: J918323

1шт.

J929036R

REMAN-CRANKSHAFT

90XT, Reman for New P/N J908031

1шт.

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

Part of P/N J908031

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

Part of P/N J908031

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order A77889, See This Figure

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J921043

REAR COVER

No Longer Used, Order J936904

1шт.

8

J936904

REAR COVER

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

0.25 mm, Undersize 0.25 mm

4шт.

11

A77474

BEARING SET

0.50 mm, Undersize 0.50 mm

4шт.

11

A77476

BEARING SET

0.75 mm, Undersize 0.75 mm

4шт.

11

A77478

BEARING SET

1.0 mm, Undersize 1.00 mm

4шт.

12

A77406

CRANKSHAFT BEARING

Standard

1шт.

12

A77473

THRUST BEARING

0.25 mm, Undersize 0.25 mm

1шт.

12

A77475

THRUST BEARING

0.50 mm, Undersize 0.50 mm

1шт.

12

A77477

THRUST BEARING

0.75 mm, Undersize 0.75 mm

1шт.

12

A77479

THRUST BEARING

1.0 mm, Undersize 1.00 mm

1шт.

12

A77841

THRUST BEARING

0.50 mm, Undersize 0.50 mm, Oversize 0.50 mm

1шт.

12

A77840

THRUST BEARING

1.0 mm, Undersize 1.00 mm, Oversize 1.00 mm

1шт.

13

A77889

SEAL PACKAGE

Front, Consists Of 14 - 17, Replaces: J904353

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL Front

1шт.

Part of P/N A77889

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77889

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77889

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of P/N A77889

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of: 19 - 22, Replaces: J802820

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77890

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE, Not Illustrated

1шт.

Part of P/N A77890

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77890

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of P/N A77890

1шт.

23

A77809

GASKET KIT

Crankshaft, Rear, Consists Of: 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77809

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77809

1шт.

26

J929106

SEAL

Crankshaft, Rear, Consists Of: 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of P/N J929106

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N J929106

1шт.

4T-390 Emissions Certified Engine

1шт.

JR908031

CRANKCASE

Remanufactured, N.A. Only

1шт.

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Consists Of: 2 and 3

1шт.

2

J929027

PINION

1шт.

Part of P/N J908031

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

Part of P/N J908031

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order A77889, See This Figure

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J903829

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

Replaces: J921043, J936260

1шт.

9

845-6015

BOLT,Hvy Hex, M6 x 15mm, Cl 8.8

6шт.

10

J928493

GASKET

1шт.

11

A77405

CRANKSHAFT BEARING

Standard

4шт.

11

A77472

BEARING SET

0.25 mm, Undersize

4шт.

11

A77474

BEARING SET

0.50 mm, Undersize

4шт.

11

A77476

BEARING SET

0.75 mm, Undersize

4шт.

11

A77478

BEARING SET

1.0 mm, Undersize

4шт.

12

A77896

BEARING SET

Standard, Replaces: A77406

1шт.

12

A77473

THRUST BEARING

0.25 mm, Undersize

1шт.

12

A77475

THRUST BEARING

0.50 mm, Undersize

1шт.

12

A77477

THRUST BEARING

0.75 mm, Undersize

1шт.

12

A77479

THRUST BEARING

1.0 mm, Undersize

1шт.

12

A77841

THRUST BEARING

0.50 mm, Undersize, Oversize

1шт.

12

A77840

THRUST BEARING

1.0 mm, Undersize, Oversize

1шт.

13

A77889

SEAL PACKAGE

Front, Consists Of: 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL Front

1шт.

Part of P/N A77889

1шт.

15

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77889

1шт.

16

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77889

1шт.

17

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of P/N A77889

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Consists Of: 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77890

1шт.

20

NSS

NOT SOLD SEPARAT

SLEEVE, Not Illustrated

1шт.

Part of P/N A77890

1шт.

21

NSS

NOT SOLD SEPARAT

TOOL

1шт.

Part of P/N A77890

1шт.

22

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

Part of P/N A77890

1шт.

23

A77809

GASKET KIT

Crankshaft, Rear, Consists Of: 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of P/N A77809

1шт.

25

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77890

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SLEEVE

1шт.

Part of P/N A77810

1шт.

28

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of P/N A77810

1шт.
