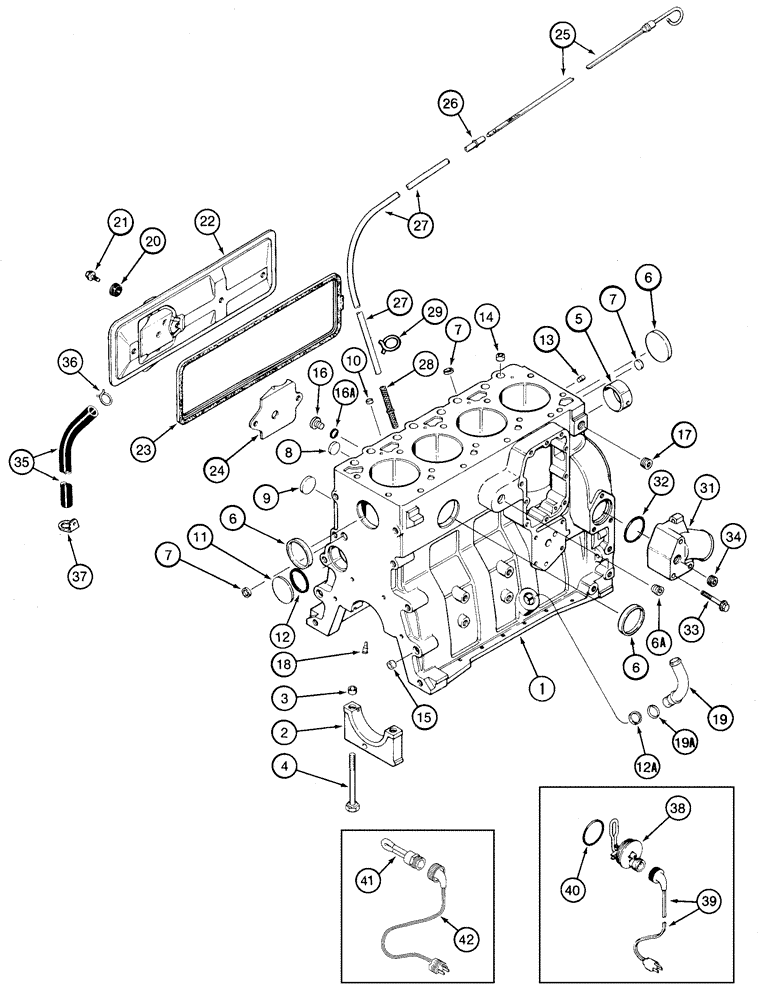

Запчасти Case IH 90XT (02-28) - CYLINDER BLOCK NORTH AMERICA JAF0245225 -, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
235612A1
ENGINE ASSEMBLY
ENGINE ASSY Complete, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler and Exhaust Pipe, Order 234277A2
1шт.
234277A2
BASIC ENGINE
Service, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note
1шт.
234277A2R
REMAN-BASIC ENGINE
Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts
1шт.
234277A2C
CORE-BASIC ENGINE
Return Number
1шт.
J933648
SHORT ENGINE
With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of: 1 - 8
1шт.
J933648R
SHORT ENGINE
With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings
1шт.
J933648C
CORE-ENGINE
Return Number
1шт.
1
87444172
BLOCK ASSY.
Stripped, Consists Of: 2 - 8, Order J933220
1шт.
2
J900967
BEARING CAP
No Longer Available, Order J936791
5шт.
2
J936791
BEARING CAP
Replaces: J900967
5шт.
3
J900068
BEARING WASHER
18 mm OD
10шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
5
REF
INSTRUCTION
BUSHING, See Figure 2-25
1шт.
6
A77782
PLUG
58 mm
3шт.
6a
A77505
PLUG
3/4 PT, If Used
1шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Includes: Ref. 9 - 18
1шт.
9
J900958
PLUG
32 mm OD
2шт.
10
J900955
PLUG
10 mm OD
1шт.
11
172599
PLUG,Exp, 2 3/8"
60 mm OD, Includes: Ref. 12
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
57 mm ID
1шт.
Part of P/N 172599
1шт.
12a
J920706
PLUG
22 mm
1шт.
14
J902343
DOWEL
16 mm OD
2шт.
15
J900068
BEARING WASHER
18 mm OD
2шт.
16
J678923
PLUG,M10 x 1
10 mm, Includes: Ref. 16A
3шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
Part of P/N J678923
1шт.
17
A77429
PLUG
1/2 PT
1шт.
17a
J678921
PLUG
14 mm, Not Used In This Application, Includes: Ref. 17B
1шт.
17b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not used in this application
1шт.
Part of P/N J678921
1шт.
17c
J932296
PLUG
Not Used In This Application, Includes: Ref. 17D
1шт.
17d
J330478
O-RING,0.07" Thk x 0.676" ID
Not Used In This Application
1шт.
Part of P/N J932296
1шт.
17e
844-8016
BOLT,Hex, M8 x 16mm, Cl 8.8
Not Used In This Application
1шт.
18
J930139
NOZZLE CAP
4шт.
19
J931973
TUBE,0.875" OD
1шт.
19a
J931824
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
No Longer Used, Order 238-7018
1шт.
19b
238-7018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro
(Replaces J931824)
1шт.
20
J900267
SEAL
4шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J925680
COVER
1шт.
23
J283767
GASKET,7.4mm Thk
1шт.
24
J907586
BAFFLE
1шт.
25
J933333
DIPSTICK
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
27
J905801
TUBE
1шт.
28
A77645
TUBE
1шт.
29
214-1308
HOSE CLAMP,#8, 1/2", Spring
2шт.
31
J903102
CONNECTION
1шт.
32
J906697
SEAL,Square, 5.16mm Thk x 50.17mm ID
50 mm ID
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
1шт.
37
J928989
CLIP
1шт.
*
Enigine Block Heater
1шт.
*
120 Volt
1шт.
*
196803A1
KIT
120V, Consists Of: 38 - 40
1шт.
38
NSS
NOT SOLD SEPARAT
ELEMENT
1шт.
Part of KIT P/N 196803A1
1шт.
39
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
Part of KIT P/N 196803A1
1шт.
40
J910517
O-RING
1шт.
Part of KIT P/N 196803A1
1шт.
*
309651A1
KIT
120V, Consists Of: 41 and 42
1шт.
41
NSS
NOT SOLD SEPARAT
ELEMENT, Replaces: A77505
1шт.
Part of P/N 309651A1
1шт.
42
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
Part of P/N 309651A1
1шт.
*
240 Volt
1шт.
42a
J916662
UNIT HEATER
240V, Not Illustrated
1шт.
42b
112837A1
PLUG
Not Illustrated
1шт.
43
331-83
1/2 oz, Not Illustrated
1шт.
44
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in, Not Illustrated
1шт.
*
KIT Repair
1шт.
*
A77887
PACKAGE,SERVICE
Engine Block, Consists Of: 45 - 52, Not Illustrated
1шт.
45
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
See Figure 2-33
4шт.
46
J919053
PISTON PIN
See Figure 2-33
4шт.
47
A77465
BEARING SET
See Figure 2-32
4шт.
48
A77405
CRANKSHAFT BEARING
See Figure 2-29
4шт.
49
A77406
CRANKSHAFT BEARING
See Figure 2-29
1шт.
51
J283333
CYLINDER HEAD GASKET,2.32mm Thk
See Page(s) 2-55
1шт.
52
A77673
GASKET KIT
See Figure 2-21
1шт.
322608A1
Complete Engine, No Longer Used, Order 322608A2, Europe Only
1шт.
322608A2
Complete Engine, Europe Only
1шт.
*
234277A2R
REMAN-BASIC ENGINE
Service, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler
1шт.
*
234277A2C
CORE-BASIC ENGINE
Return Number
1шт.
*
234277A2
BASIC ENGINE
Service, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note
1шт.
*
J933648
SHORT ENGINE
With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of: 1 - 8
1шт.
*
JR933648
REMAN-SHORT ENGINE
With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings
1шт.
*
JC933648
CORE-SHORT ENGINE
Return Number
1шт.
1
87444172
BLOCK ASSY.
Stripped, Consists Of: 2 - 8, Order J933220
1шт.
2
J936791
BEARING CAP
5шт.
3
J900068
BEARING WASHER
18 mm OD
10шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
5
REF
INSTRUCTION
BUSHING, See Figure 2-25
1шт.
6
A77782
PLUG
58 mm
3шт.
6a
A77505
PLUG
3/4 PT, If Used
1шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Includes: Ref. 9 - 18
1шт.
9
J900958
PLUG
32 mm OD
1шт.
10
J900955
PLUG
10 mm OD
3шт.
11
172599
PLUG,Exp, 2 3/8"
60 mm OD, Includes: Ref. 12
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
57 mm ID
1шт.
12a
J920706
PLUG
22 mm
5шт.
14
J902343
DOWEL
16 mm OD
2шт.
15
J900068
BEARING WASHER
18 mm OD
2шт.
16
J678923
PLUG,M10 x 1
10 mm, Includes: Ref. 16A
3шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
17
A77429
PLUG
1/2 PT
1шт.
17a
J678921
PLUG
14 mm, Includes: Ref. 17B, Not Illustrated
1шт.
17b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not Illustrated
1шт.
17c
J932296
PLUG
Includes: Ref. 17D, Not Illustrated
1шт.
17d
J330478
O-RING,0.07" Thk x 0.676" ID
Not Illustrated
1шт.
18
J937214
NOZZLE CAP
4шт.
19
J931973
TUBE,0.875" OD
1шт.
19a
238-7012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro
1шт.
20
J928759
SEALING WASHER
4шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J925680
COVER
1шт.
23
J283767
GASKET,7.4mm Thk
1шт.
24
J907586
BAFFLE
1шт.
25
J933333
DIPSTICK
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
27
J905801
TUBE
1шт.
28
A77645
TUBE
1шт.
29
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
2шт.
31
J919687
HYD CONNECTOR
Includes: Ref. 32
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
1шт.
37
J928989
CLIP
Engine Block Heater, 120 Volt
1шт.
*
309651A1
KIT
120V, Consists Of: 38 - 40
1шт.
38
NSS
NOT SOLD SEPARAT
ELEMENT
1шт.
39
196466A1
ELECTRIC CABLE
1829 mm (72 in)
1шт.
40
J910517
O-RING
Engine Block Heater, 240 Volt
1шт.
*
309652A1
KIT
240V, Consists Of: 38 - 40
1шт.
38
NSS
NOT SOLD SEPARAT
ELEMENT
1шт.
39
J905114
ELECTRIC CABLE
1829 mm (72 in)
1шт.
40
J910517
O-RING
1шт.
*
KIT Repair
1шт.
*
A77887
PACKAGE,SERVICE
Engine Block, Not Illustrated, Consists Of: 45 - 52
1шт.
45
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
See Figure 2-33
4шт.
46
J934047
PIN,40mm OD x 82.68mm L
Replaces: J919053, See Figure 2-33
4шт.
47
A77465
BEARING SET
See Figure 2-32
4шт.
48
A77405
CRANKSHAFT BEARING
See Figure 2-29
4шт.
49
A77896
BEARING SET
Replaces: A77406, See Figure 2-29
1шт.
50
A77976
GASKET KIT
Replaces: A77870, See Figure 2-36
1шт.
51
J283333
CYLINDER HEAD GASKET,2.32mm Thk
See Page(s) 2-55
1шт.
52
A77673
GASKET KIT
See Figure 2-21
1шт.
*
309079A1
ENGINE ASSEMBLY
ENGINE ASSY Complete, Models With Air Conditioning
1шт.
*
87605126
ENGINE
For N.A. Only
1шт.
*
234277A2R
REMAN-BASIC ENGINE
Remanufactured, For N.A. Only
1шт.
*
234277A2C
CORE-BASIC ENGINE
Return Number
1шт.
*
234277A2
BASIC ENGINE
Service, Less Starter, Alternator, Fan, Fan Belt, Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injection Pump, Injectors and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler; See Note
1шт.
*
J933648
SHORT ENGINE
With Stripped Block, Pistons, Connecting Rods and Bearings, Crankshaft and Bearings, Consists Of: 1 - 8
1шт.
*
JR933648
REMAN-SHORT ENGINE
Remanufactured, For N.A. Only
1шт.
*
JC933648
CORE-SHORT ENGINE
Return Number, For N.A. Only
1шт.
1
87444172
BLOCK ASSY.
Stripped, Consists Of: 2 - 8, Order J933220
1шт.
2
J936791
BEARING CAP
5шт.
3
J900068
BEARING WASHER
18 mm OD
10шт.
4
J927948
BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9
10шт.
5
REF
INSTRUCTION
BUSHING, See Figure 2-25
1шт.
6
A77782
PLUG
58 mm
3шт.
6a
A77505
PLUG
3/4 PT, If Used
1шт.
7
J900956
PLUG
18 mm OD
3шт.
8
41-1616
PLUG,Cup, 1", Stainless
2шт.
*
J933220
PACKAGE,SERVICE
Includes: Ref. 9 - 18
1шт.
9
J900958
PLUG
32 mm OD
1шт.
10
J900955
PLUG
10 mm OD
3шт.
11
172599
PLUG,Exp, 2 3/8"
60 mm OD, Includes: Ref. 12
1шт.
12
J926047
O-RING,0.07" Thk x 2.239" ID
57 mm ID
1шт.
Part of P/N 172599
1шт.
12a
J920706
PLUG
22 mm
5шт.
14
J902343
DOWEL
16 mm OD
2шт.
15
J900068
BEARING WASHER
18 mm OD
2шт.
16
J678923
PLUG,M10 x 1
10 mm, Includes: Ref. 16A
3шт.
16a
637-72081
O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro
1шт.
Part of P/N J678923
1шт.
17
A77429
PLUG
1/2 PT
1шт.
17a
J678921
PLUG
14 mm, Includes: Ref. 17B, Not Illustrated
1шт.
17b
J678912
O-RING,2.2mm Thk x 11.3mm ID
Not Illustrated
1шт.
Part of P/N J678921
1шт.
17c
J932296
PLUG
Includes: Ref. 17D, Not Illustrated
1шт.
17d
J330478
O-RING,0.07" Thk x 0.676" ID
Not Illustrated
1шт.
Part of P/N J9322296
1шт.
18
J937214
NOZZLE CAP
4шт.
19
J931973
TUBE,0.875" OD
1шт.
19a
238-7012
O-RING,0.07" Thk x 0.364" ID, -12, Cl 7, 75 Duro
1шт.
20
J928759
SEALING WASHER
4шт.
21
845-8016
BOLT,Hvy Hex, M8 x 16mm, Cl 8.8
2шт.
22
J925680
COVER
1шт.
23
J283767
GASKET,7.4mm Thk
1шт.
24
J907586
BAFFLE
1шт.
25
J933333
DIPSTICK
1шт.
26
J905802
FITTING,9.53 mm OD x 39 mm L
1шт.
27
J905801
TUBE
1шт.
28
A77645
TUBE
1шт.
29
214-1416
HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm
2шт.
31
J919687
HYD CONNECTOR
Includes: Ref. 32
1шт.
Part of P/N J919687
1шт.
33
854-10075
BOLT,Hvy Hex, M10 x 75mm, Cl 10.9
3шт.
34
A77429
PLUG
1/2 PT
2шт.
35
J918612
TUBE,360.00 mm
1шт.
36
J904230
CLAMP,25.4mm
1шт.
37
J928989
CLIP
Engine Block Heater, 120 Volt
1шт.
*
196803A1
KIT
Engine Block Heater, 120V - 750W; Incl. 38 - 40; Install Ref. 38 In Place Of Ref. 6 Plug
1шт.
38
NSS
NOT SOLD SEPARAT
Element, 120V - 750W; Installs In Place Of Ref. 6A Plug
1шт.
39
196466A1
ELECTRIC CABLE
120V - 750W, 1829 mm (72 in)
1шт.
40
J910517
O-RING
Engine Block Heater
1шт.
*
124340A1
KIT
Engine Block Heater, 240V - 750W; Incl 38 - 39; Install Ref. 38 In Place Of Ref. 6 Plug
1шт.
38
NSS
NOT SOLD SEPARAT
Element, 240V - 750W; Installs In Place Of Ref. 6A Plug
1шт.
39
J905114
ELECTRIC CABLE
240V - 750W, 1829 mm (72 in)
1шт.
40
J910517
O-RING
1шт.
*
309651A1
KIT
Engine Block Heater, 120V - 750W; Incl 41, 42; Install Ref. 41 In Place Of Ref. 6A Plug
1шт.
41
NSS
NOT SOLD SEPARAT
Element, 120V - 750W; Installs In Place Of Ref. 6A Plug
1шт.
42
196466A1
ELECTRIC CABLE
120V - 750W, 1829mm (72 in.)
1шт.
*
309652A1
KIT
Engine Block Heater, 240V - 750W; Incl 41, 42; Install Ref. 41 In Place Of Ref. 6A Plug
1шт.
41
NSS
NOT SOLD SEPARAT
Element, 240V - 750W; Installs In Place Of Ref. 6A Plug
1шт.
42
J905114
ELECTRIC CABLE
240V - 750W, 1829mm (72 in.)
1шт.
*
KIT Repair
1шт.
*
A77887
PACKAGE,SERVICE
Engine Block, Not Illustrated, Consists Of: 45 - 52
1шт.
45
J802747
PISTON & RINGS KIT,100MM PISTON DIAMETER
See Figure 2-33
4шт.
46
J934047
PIN,40mm OD x 82.68mm L
Replaces: J919053, See Figure 2-33
4шт.
47
A77465
BEARING SET
See Figure 2-32
4шт.
48
A77405
CRANKSHAFT BEARING
See Figure 2-29
4шт.
49
A77896
BEARING SET
Replaces: A77406, See Figure 2-29
1шт.
51
J283333
CYLINDER HEAD GASKET,2.32mm Thk
See Page(s) 2-55
1шт.
52
A77673
GASKET KIT
See Figure 2-21
1шт.
Выбрано товаров: 241
