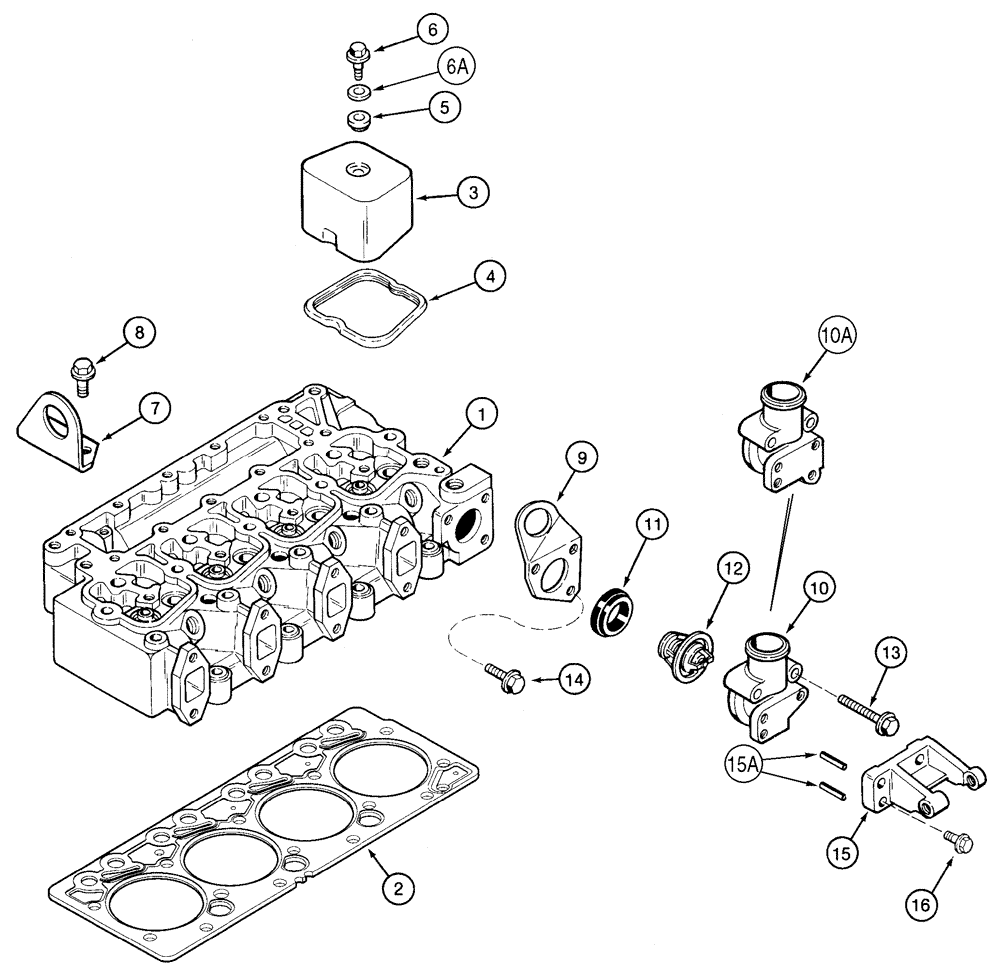

Запчасти Case IH 90XT (02-22) - CYLINDER HEAD COVER NORTH AMERICA/EUROPE - JAF0245224, 4T-390 ENGINE (02) - ENGINE

4T-390 Engine

1шт.

1

REF

INSTRUCTION

HEAD ASSY., See Figure 2-23

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

1шт.

2

J283001

GASKET

0.25 mm

1шт.

2

J283338

GASKET

0.50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J928406

ISOLATOR

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

6a

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

4шт.

7

J908118

BRACKET

1шт.

8

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

2шт.

THERMOSTAT and HOUSING

1шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

1шт.

A77736

THERMOSTAT

THERMOSTAT, Consists Of: 11, and 12

1шт.

11

J923331

GASKET

1шт.

Part of P/N A77736

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

Part of P/N A77736

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.

4T-390 Emissions Certified Engine

1шт.

1

REF

INSTRUCTION

HEAD ASSY., See Figure 2-24

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

1шт.

2

J283336

GASKET

0.25 mm

1шт.

2

J283338

GASKET

0.50 mm

1шт.

3

J928404

COVER

4шт.

4

J930906

GASKET

4шт.

5

J928406

ISOLATOR

4шт.

6

J907049

BOLT,Hex

M8 x 21

4шт.

7

J908118

BRACKET

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

THERMOSTAT and HOUSING

1шт.

9

J903757

BRACKET

1шт.

10

J914409

HOUSING

1шт.

A77736

THERMOSTAT

THERMOSTAT, Consists Of: 11, and 12

1шт.

11

J923331

GASKET

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

M8 x 70 mm

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

15

J923387

SUPPORT

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

3шт.
