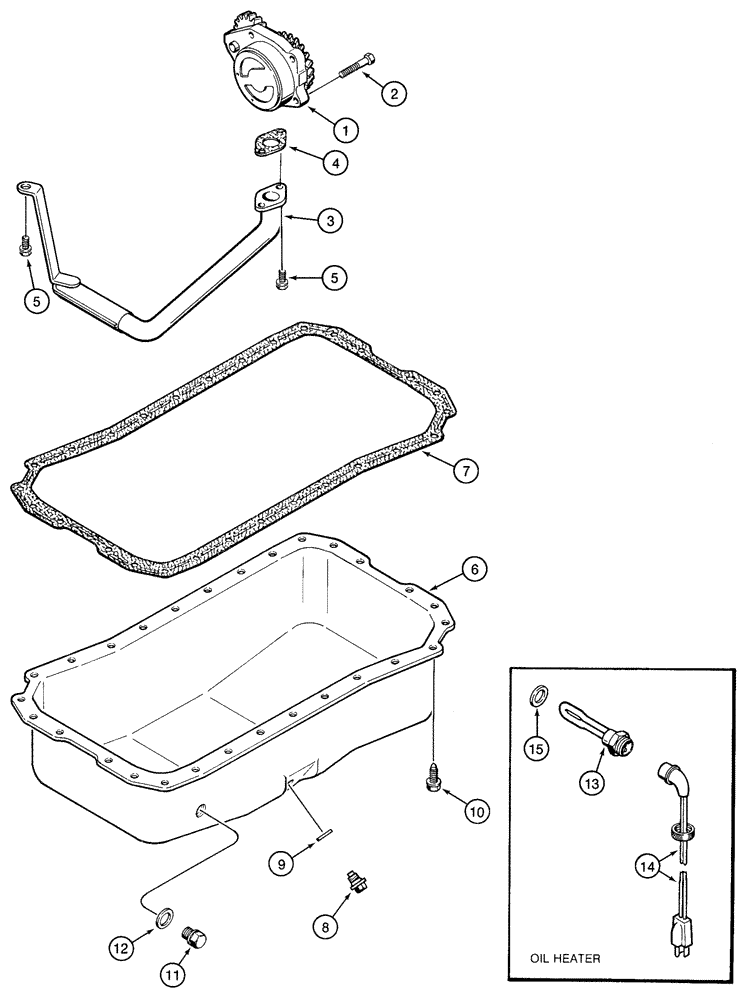

Запчасти Case IH 90XT (02-21) - OIL PUMP, PAN HEATER NORTH AMERICA/EUROPE 4T-390 ENGINE (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

1шт.

1

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. Only

1шт.

1

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP For N.A. Only

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905223

TUBE

1шт.

4

J931349

GASKET

1шт.

Part of KIT P/N A77673

1шт.

5

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

Replaces 845-8016

3шт.

6

J907570

PAN

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL

1шт.

Part of KIT P/N A77673

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

Part of KIT P/N A77673

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

13

NSS

NOT SOLD SEPARAT

ELEMENT

1шт.

Part of KIT P/N A77490

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

Part of KIT P/N A77490

1шт.

15

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

16

A77673

GASKET KIT

Consists Of: 4, 7, and 9

1шт.

Engine Oil Heater

1шт.

17

A77490

KIT

120V, Consists Of: 13, and 14, Order J902425

1шт.
