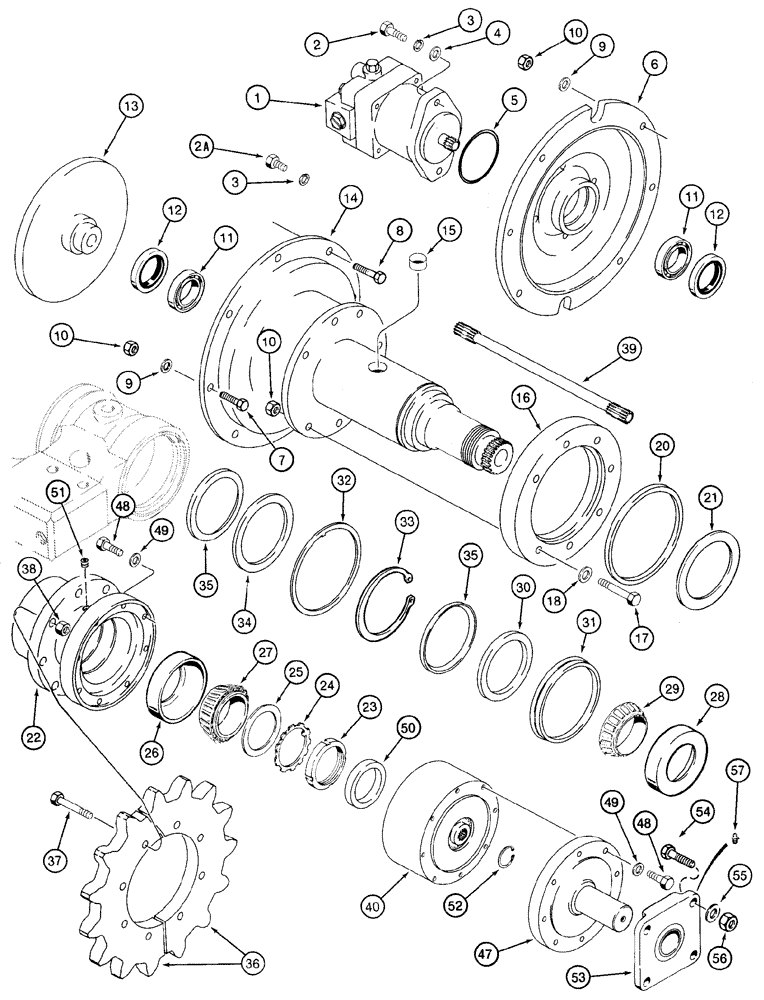

Запчасти Case IH 90XT (09-65) - TRENCHER DRIVE LINE MOUNTING NORTH AMERICA (09) - CHASSIS

1

H673186

HYDRAULIC MOTOR

See Figure 8-78

1шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

2a

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

4

H274894

WASHER

2шт.

5

238-5155

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

6

H434811

COVER

1шт.

7

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

8

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5шт.

9

H274894

WASHER

7шт.

10

232-4118

NUT,1/2"-13, GC

14шт.

11

ST560

BEARING, BALL,45 mm ID x 75 mm OD x 16 mm

2шт.

12

H438061

SEAL,53.98mm ID x 81.13mm OD x 11.1mm Thk

2шт.

13

116343A1

FLYWHEEL

1шт.

14

116471A1

PIVOT

1шт.

15

41-1620

PLUG,Cup, 1 1/4", Stainless

1-1/4

2шт.

16

H437580

SPACER

1шт.

17

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

7шт.

18

H274894

WASHER

7шт.

20

H437506

SEAL,166.65mm ID x 187.58mm OD x 9.93mm Thk

1шт.

21

H437581

WASHER

1шт.

22

116740A1

HUB

1шт.

23

54-2015

BEARING LOCK NUT,Tan-15, Bearing

1шт.

24

192-315

BEARING WASHER,Type W-15

1шт.

25

L112617

WASHER

1шт.

26

A67327

BEARING CUP,120 mm OD x 25 mm

1шт.

27

A67328

ROLLER BEARING,74.98mm ID x 29.5mm W

1шт.

28

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

1шт.

29

A63185

ROLLER BEARING,85 mm ID x 130 mm OD x 24, 30.20 mm

1шт.

30

H428839

SEAL,107.95mm ID x 133.5mm OD x 12.7mm Thk

1шт.

31

H433852

SEAL

1шт.

32

103885A1

WASHER,159.04mm ID x 177.8mm OD x 3.17mm Thk

1шт.

33

S64875

SNAP RING

1шт.

34

H437582

WASHER,121.15mm ID x 150mm OD x 6.35mm Thk

1шт.

35

H437505

SEAL,118.57mm ID x 136.75mm OD x 8.33mm Thk

2шт.

36

104152A1

SPROCKET ASSY.

15T

1шт.

37

428-944

BOLT,Hex, 9/16" - 18 x 2-3/4", Gr 8

9/16 NF x 2-3/4; 8

8шт.

38

131-1249

LOCK NUT,9/16"-18, GC

8шт.

39

116461A1

DRIVE SHAFT

1шт.

40

116470A1

GEAR-SET

See Figure 9-66

1шт.

47

116742A2

COVER

1шт.

48

428-628

BOLT,Hex, 3/8" - 24 x 1-3/4", Gr 8

3/8 x 1-3/4

16шт.

49

496-21041

WASHER,13/32" x 13/16" x .089", HDN

16шт.

50

117233A1

SPACER

1шт.

51

221-667

DRAIN PLUG,Hex Soc, 1/2" NPT

1шт.

52

100-2175

SNAP RING,0.75", Int, #75

1шт.

53

H758292

BEARING

1шт.

54

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

5/8 x 1-3/4

4шт.

55

T53567

BEARING WASHER,16.66mm ID x 33.33mm OD x 3.43mm Thk

16.7 x 33.3 x 3.4

4шт.

56

232-41110

NUT,5/8"-11, GC

4шт.

57

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.
