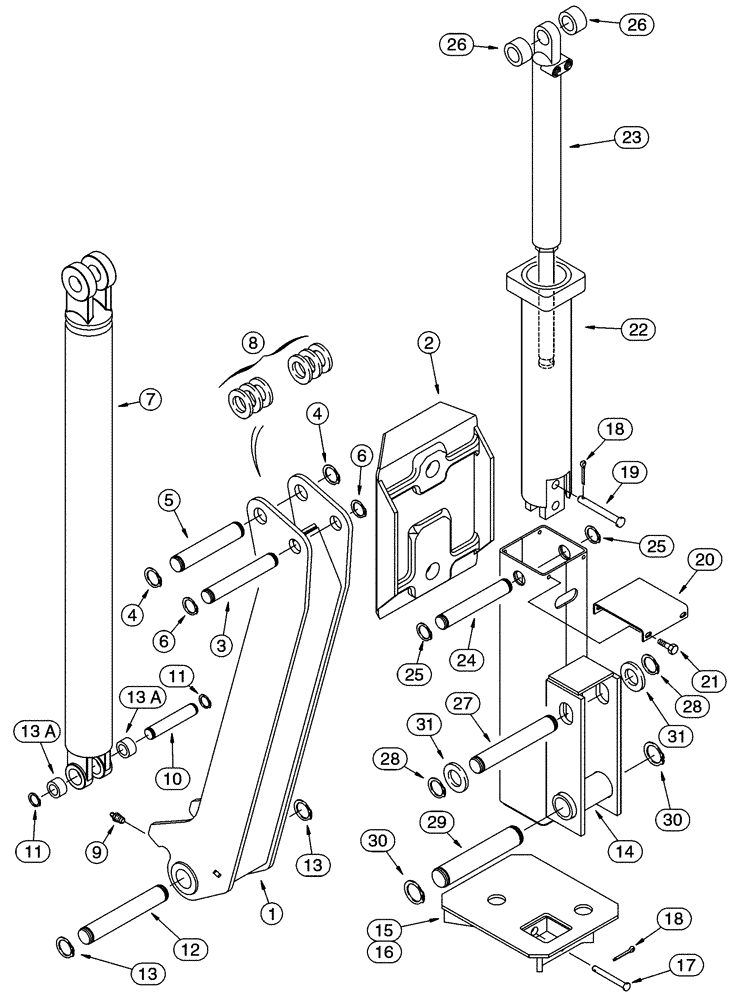

Запчасти Case IH 90XT (09-61) - BACKHOE STABILIZERS NORTH AMERICA, D125 BACKHOE FOLD DOWN STABILIZERS (09) - CHASSIS

Fold Down

1шт.

1

H674650

STABILIZER

2шт.

2

H434430

LARGE PLATE

PLATE, LARGE

2шт.

3

H434379

PIN,28.63mm OD x 151mm L

2шт.

4

103-16125

SNAP RING,#125, Ext

4шт.

5

H434380

PIN

2шт.

6

100-16112

SNAP RING,#112, Ext

4шт.

7

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk, Stabilizer, See Figure 8-73

2шт.

8

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32

12шт.

9

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

10

H434381

PIN,31.8mm OD x 31.8mm L

2шт.

11

103-16125

SNAP RING,#125, Ext

4шт.

12

H434382

PIN,38.15mm OD x 204mm L

2шт.

13

D25279

SNAP RING,M35, Int

4шт.

13a

103502A1

SPECIAL NUT

Vertical Stabilizers

4шт.

14

H674844

STABILIZER

2шт.

15

H514570

PAD

Right Hand

1шт.

16

H514562

PAD

Left Hand

1шт.

17

H120683

PIN,15.88mm OD x 94.06mm L

2шт.

18

432-816

COTTER PIN,1/8" x 1"

4шт.

19

H51870

PIN

2шт.

20

H438853

COVER

2шт.

21

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

8шт.

22

H514554

STABILIZER

2шт.

23

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Stabilizer, See Figure 8-74

2шт.

Vertical Stabilizers

1шт.

24

H50831

PIVOT PIN,28.57mm OD x 139.7mm L

2шт.

25

103-11112

SNAP RING,#112, Ext

4шт.

26

H52068

SPACER

4шт.

27

H434381

PIN,31.8mm OD x 31.8mm L

Upper

2шт.

28

103-16125

SNAP RING,#125, Ext

4шт.

29

H434382

PIN,38.15mm OD x 204mm L

Lower

2шт.

30

D25279

SNAP RING,M35, Int

4шт.

31

495-21138

WASHER,1 1/4"

1-3/8 x 3 x 5/32

8шт.
