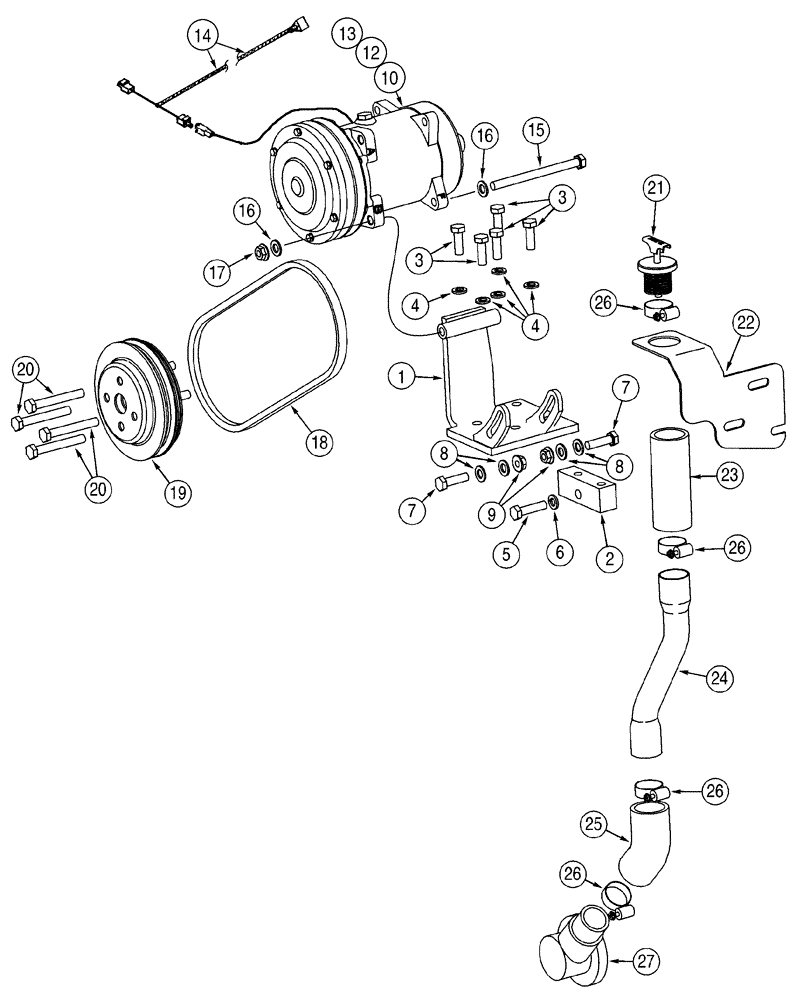

Запчасти Case IH 90XT (09-54) - AIR CONDITIONING COMPRESSOR MOUNTING (09) - CHASSIS

1

356319A1

SUPPORT

Compressor Mounting

1шт.

2

356694A1

SUPPORT

1шт.

4

892-11010

LOCK WASHER,M10

5шт.

5

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

627-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

9

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

2шт.

10

1999755C3

COMPRESSOR

Replaces: 1999755C2, Includes: Ref 11 - 13

1шт.

10

86993462R

REMAN-COMPRESSOR

90XT; Reman For New P/N 1999755C3

1шт.

10

86993462C

CORE-COMPRESSOR

Return Part Number

1шт.

10

48017123R

REMAN-A/C COMP KIT

Reman A/C Compressor, Receiver-Dryer, Valve Kit

1шт.

10

48017123C

REMAN-A/C COMP KIT

Return Part Number

1шт.

10

1999755C3R

REMAN-A/C COMPRESSOR

Inc.- 8 Mounting Holes, 2 Groove Pulley, For Use w/HFC134A Refrigerant

1шт.

10

1999755C3C

CORE-COMPRESSOR

Return Part Number

1шт.

11

135324A1

CLUTCH

Not Illustrated

1шт.

Part of P/N 1999755C

1шт.

12

A49667

PLUG

1шт.

Part of P/N 1999755C3

1шт.

13

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

5/16 ID x 1/16

1шт.

Part of P/N 1999755C3

1шт.

14

REF

INSTRUCTION

HARNESS, See Figure 9-53, Ref 48

1шт.

15

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

17

829-2310

FLANGE NUT,M10 x 1.5, Flg, Cl 10

1шт.

18

359688A1

BELT,12.70 mm W

Compressor Drive

1шт.

19

196050A1

PULLEY

Compressor Drive

1шт.

20

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

4шт.

21

195964A1

PLUG

Oil Fill

1шт.

22

249375A1

SUPPORT

Oil Fill

1шт.

23

359643A1

HOSE,38.00 mm ID x 120.00 mm, SAE J30 30R6

Upper, Oil Fill

1шт.

24

359641A1

PIPE

Middle, Oil Fill

1шт.

25

359644A1

HOSE,38.00 mm ID x 90.00 mm, SAE J30 30 R6

Lower, Oil Fill

1шт.

26

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

4шт.

27

J924595

CONNECTOR, ELEC

CONNECTOR Oil Fill

1шт.

3

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

5шт.

8

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

16

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
