Запчасти Case IH 90XT (09-52) - HEATING SYSTEM HEATER, DELUXE, NORTH AMERICAN MODELS -JAF0319916 EUROPEAN MODELS -JAF0274254 (09) - CHASSIS

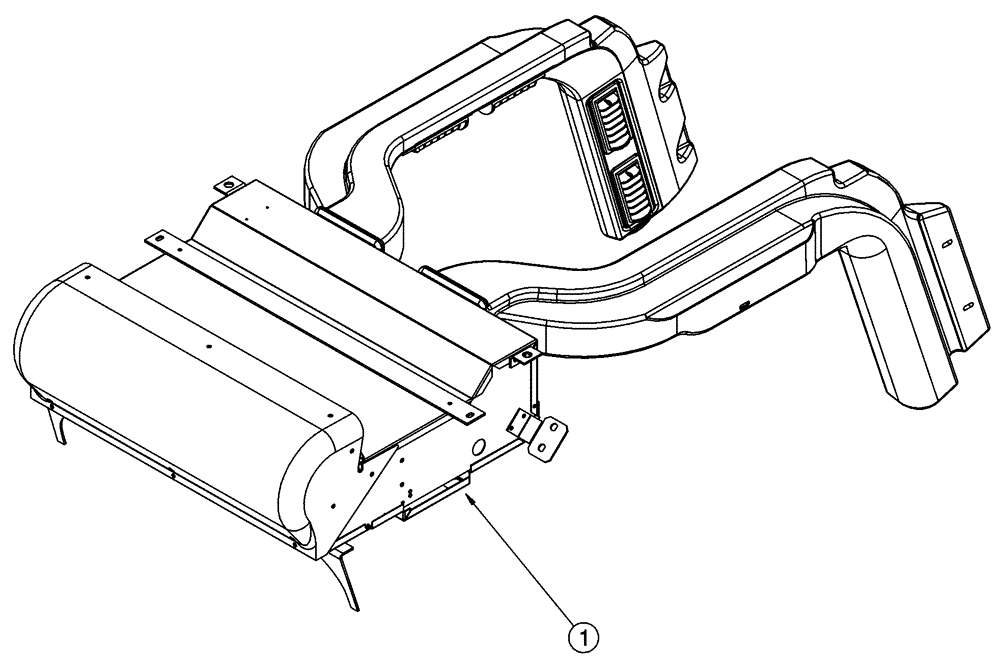

Схема запчастей Case IH 90XT - (09-52) - HEATING SYSTEM HEATER, DELUXE, NORTH AMERICAN MODELS -JAF0319916 EUROPEAN MODELS -JAF0274254 (09) - CHASSIS
1

Артикул

Название

Примечание

Количество

North American Models -JAF0319916

1шт.

European Models -JAF0274254

1шт.

1

304412A1

SET OF PARTS

Deluxe, Includes: Ref 2 - 28, Component Parts Not Illustrated

1шт.

2

178454A2

BLOWER ASSY.

12V

1шт.

178454A2R

REMAN-BLOWER

90XT

1шт.

178454A2C

CORE-BLOWER

Return Number

1шт.

3

301803R1

SHUT-OFF VALVE

1шт.

4

359504A1

RESISTOR

Replaces: 307153A1

1шт.

5

307155A1

WASHER

Resistor Mounting

1шт.

6

168822C2

SWITCH

Blower

1шт.

7

315068A1

BALL KNOB

Blower

1шт.

8

317721A1

BALL KNOB

Control

1шт.

9

284621A1

HOUSING

Air Intake

1шт.

10

309568A1

DIFFUSER

Rectangular

8шт.

11

309569A1

DIFFUSER

Round

2шт.

12

317687A1

PAN ASSY.

Drain

1шт.

13

317726A1

FILTER

1шт.

14

317857A1

CONDENSER

Heater

1шт.

15

317859A1

HARNESS

Heater

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in), Cut From R54970

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in), Cut From R54970

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE Supply, Bulkhead To Heater Core, 2311 mm (91 in), Cut From R54970

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in), Cut From 97252C1

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE Return, Bulkhead To Heater Core, 2311 mm (91 in), Cut From 97252C1

1шт.

19

398757A1

THUMB SCREW,#12 x 1.11", W/ Nylon Wshr

Filter Mounting, #12

1шт.

20

398758A1

SPECIAL WASHER

Filter Mounting

1шт.

21

284910A1

DUCT

Right Hand

1шт.

22

284911A1

DUCT

Left Hand

1шт.

23

299020A1

VALVE

Water Heater

1шт.

24

299039A1

ELEC SUPPORT PLATE

Right Hand, Wire Harness

1шт.

25

299045A1

CABLE

Water Control Valve

1шт.

26

299049A1

CONNECTION

Heater Hose

1шт.

27

324986A1

SEAL

Evaporator Box To ROPS, 1200 mm (47-1/4 in)

1шт.

28

403512A1

HARNESS

Cab

1шт.

29

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 x 3/8

2шт.

30

393618A1

DECAL

Air Conditioning, See Figure 9-75, Ref 2

1шт.

31

393619A1

DECAL

Water Control Valve, See Figure 9-75, Ref 3

1шт.

North American Models JAF0319917-

1шт.

European Models JAF0274255-

1шт.

1

373011A1

HEATER

KIT Deluxe, Not Serviced As An Assembly, Order Components, Includes: Ref 2 - 31, Component Parts Not Illustrated

1шт.

2

178454A2

BLOWER ASSY.

12V

1шт.

3

301803R1

SHUT-OFF VALVE

1шт.

4

401360A1

RESISTOR

1шт.

5

307155A1

WASHER

Resistor Mounting

1шт.

6

168822C2

SWITCH

Blower

1шт.

7

315068A1

BALL KNOB

Blower

1шт.

8

317721A1

BALL KNOB

Control

1шт.

9

284621A1

HOUSING

Air Intake

1шт.

10

363890A1

VENT

Rectangular

8шт.

11

309569A1

DIFFUSER

Round

2шт.

12

317687A1

PAN ASSY.

Drain

1шт.

13

317726A1

FILTER

1шт.

14

317857A1

CONDENSER

Heater

1шт.

15

317859A1

HARNESS

Heater

1шт.

14

NSS

NOT SOLD SEPARAT

HOSE Supply, Shutoff Valve To Water Valve, 1676 mm (66 in), Cut From R54970

1шт.

15

NSS

NOT SOLD SEPARAT

HOSE Supply, Water Valve To Bulkhead, 610 mm (24 in), Cut From R54970

1шт.

16

NSS

NOT SOLD SEPARAT

HOSE Supply, Bulkhead To Heater Core, 2311 mm (91 in), Cut From R54970

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE Return, Shutoff Valve To Bulkhead, 2311 mm (91 in), Cut From 97252C1

1шт.

18

NSS

NOT SOLD SEPARAT

HOSE Return, Bulkhead To Heater Core, 2311 mm (91 in), Cut From 97252C1

1шт.

19

398757A1

THUMB SCREW,#12 x 1.11", W/ Nylon Wshr

Filter Mounting, #12

1шт.

20

398758A1

SPECIAL WASHER

Filter Mounting

1шт.

21

284910A1

DUCT

Right Hand

1шт.

22

284911A1

DUCT

Left Hand

1шт.

23

299020A1

VALVE

Water Heater

1шт.

24

299039A1

ELEC SUPPORT PLATE

Right Hand, Wire Harness

1шт.

25

299045A1

CABLE

Water Control Valve

1шт.

26

299049A1

CONNECTION

Heater Hose

1шт.

27

403512A1

HARNESS

Cab

1шт.

28

373318A1

BRACKET

Rear Window

1шт.

29

373380A1

BRACKET

Rear Window

1шт.

30

393618A1

DECAL

Air Conditioning, See Figure 9-75, Ref 2

1шт.

31

393619A1

DECAL

Water Control Valve, See Figure 9-75, Ref 3

1шт.

31a

393622A1

DECAL

Air Conditioning and Fan, See Figure 9-75, Ref 4

1шт.

32

221-1089

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 x 3/8

2шт.

33

324986A1

SEAL

Evaporator Box To ROPS, 1200 mm (47-1/4 in)

1шт.
