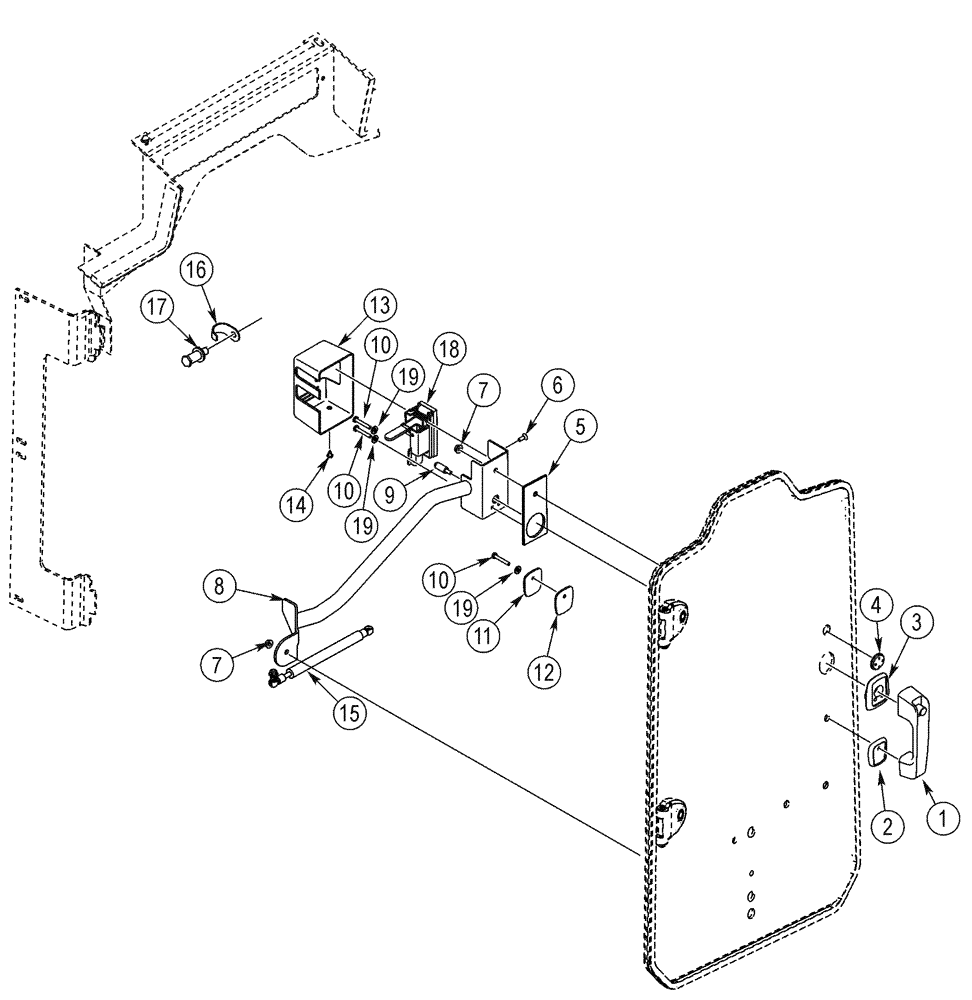

Запчасти Case IH 90XT (09-48) - DOOR, FRONT LATCH, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS JAF0274262- (09) - CHASSIS

1

60-7083T1

HANDLE

Cab Door

1шт.

2

321552A1

BEZEL

1шт.

3

321551A1

BEZEL

1шт.

4

198916A2

CAP,M8 x 20, Black

1шт.

5

383465A2

SPACER

1шт.

6

569-4

SCREW,Hex Soc Flat Hd, M6 x 20, 8.8

4шт.

7

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

8

430668A1

BRACKET

1шт.

9

383819A1

BUTTON

Door Latch

1шт.

10

840-1640

SCREW,Pan, M6 x 40mm, Cl 4.8

M6 x 40, Models With Lexan Door

3шт.

10

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

Models w/glass door

3шт.

11

391848A1

BACK PLATE

1шт.

12

391847A1

SEAL,57mm L

1шт.

13

396711A1

COVER

Door Lock

1шт.

14

760-14613

SELF-TAP SCREW,Pan Hd, M6.3 x 13

M6.3 x 13

1шт.

15

395264A2

GAS STRUT

155 strk, Door Assist

1шт.

16

321535A1

PROTECTOR

Door Striker

1шт.

17

198575A1

BOLT

1шт.

18

382777A1

LATCH

1шт.

19

895-30100

WASHER,6.6mm ID x 15mm OD x 1.6mm Thk

6.6 x 15 x 1.6, Models With Glass Door

3шт.
