(09-43) - CANOPY, ROPS HEADLINER

Запчасти Case IH 90XT (09-43) - CANOPY, ROPS HEADLINER (09) - CHASSIS

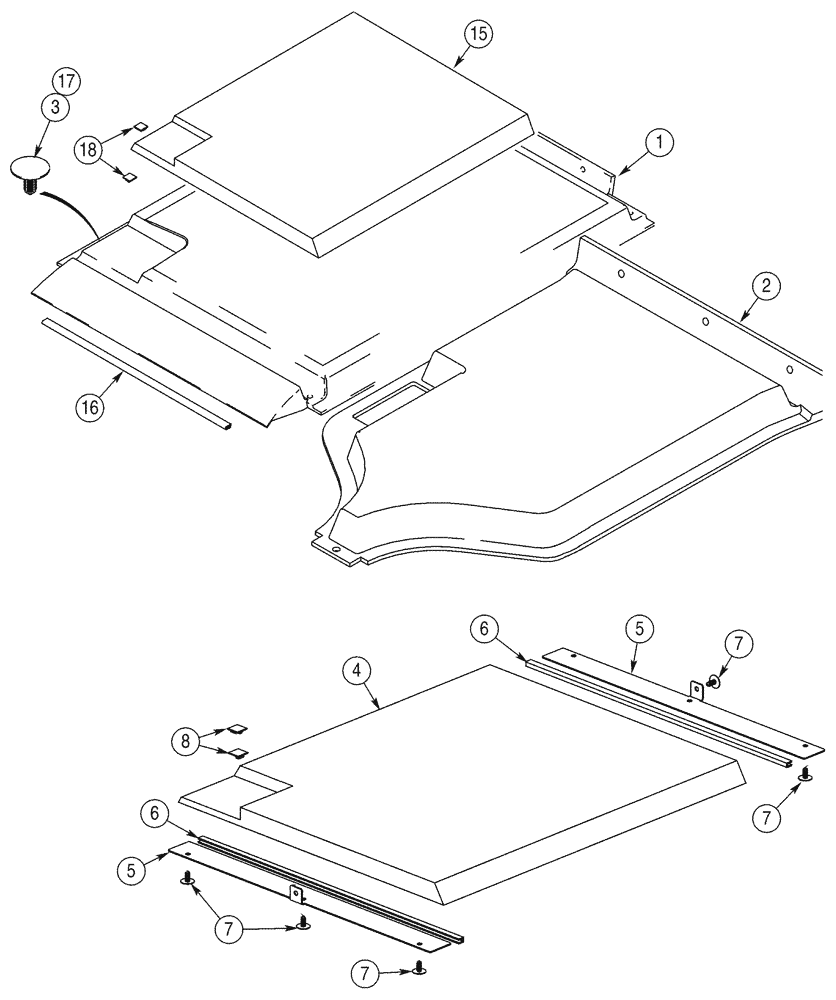

Схема запчастей Case IH 90XT - (09-43) - CANOPY, ROPS HEADLINER (09) - CHASSIS
7
7
8
7
18
5
3
4
15
2
17
6
16
1
6
7
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

189611A3

ROOF LINING

If Used

1шт.

2

280010A2

PANEL

Models With Deluxe Heater and Air Conditioning, Gray, If Used

1шт.

2

426116A1

PANEL

Models With Deluxe Heater and Air Conditioning, Tan, If Used

1шт.

3

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

1шт.

4

435675A1

PANEL

Headliner, Models Without Deluxe Heater, If Used

1шт.

5

314588A1

PLATE

Headliner Trim, Models Without Deluxe Heater

2шт.

6

315471A1

GASKET

Headliner, Retainer, Models Without Deluxe Heater

2шт.

7

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

6шт.

8

H439303

CLIP

2шт.

15

313874A1

PADDING

Headliner, Models Without Deluxe Heater, Europe Only

1шт.

16

315471A1

GASKET

Headliner, Retainer, Models Without Deluxe Heater, Europe Only

1шт.

17

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

Models Without Deluxe Heater, Europe Only

6шт.

18

H439303

CLIP

Harness, Models Without Deluxe Heater, Europe Only

2шт.
