Запчасти Case IH 90XT (09-42) - CANOPY, ROPS HEAT SHIELD (09) - CHASSIS

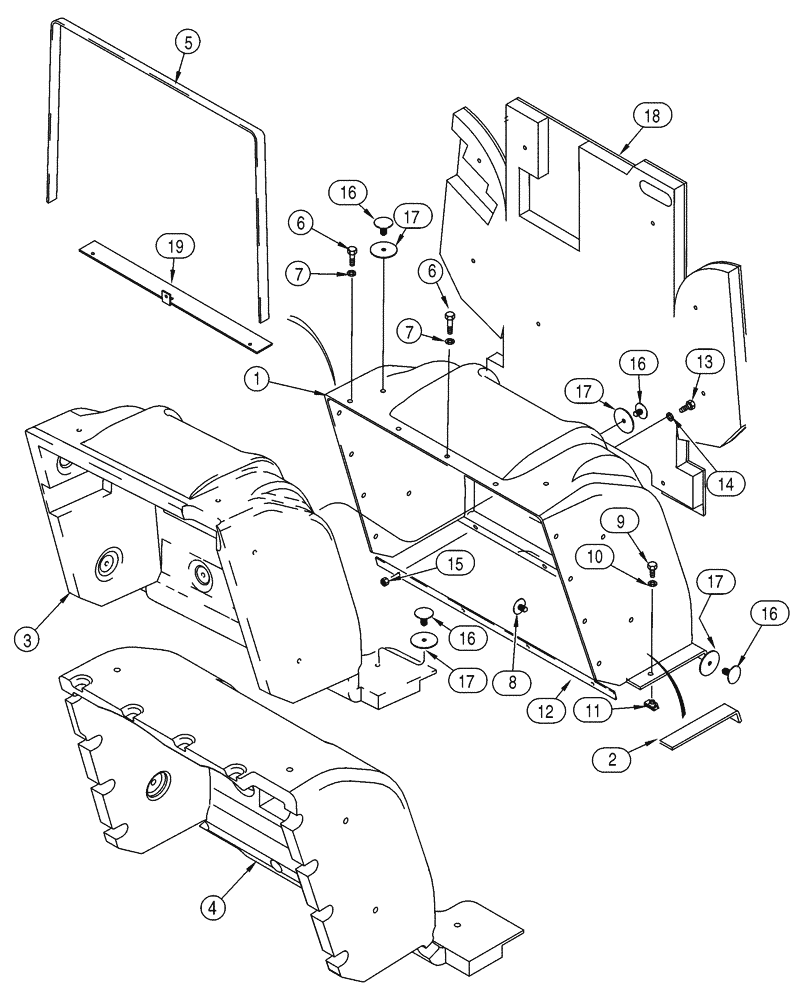

Схема запчастей Case IH 90XT - (09-42) - CANOPY, ROPS HEAT SHIELD (09) - CHASSIS
16
19
1
12
7
17
16
16
17
5
6
3
15
10
8
4
2
18
6
13
16
7
11
17
17
9
14

Артикул

Название

Примечание

Количество

1

347215A1

COVER

Injection Molded, Gray, If Used

1шт.

1

426378A1

SHIELD

Injection Molded, Tan, If Used

1шт.

2

313324A1

SEAL

227 mm (9 in), Heat Shield, Models With Deluxe Heater and Air Conditioning

2шт.

3

335015A1

INSULATOR

Heat Shield, No Longer Available, Order 335015A2, Ref. 4

1шт.

4

335015A2

INSULATOR

Heat Shield

1шт.

5

250705A2

BAND

1650 mm

1шт.

6

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

7

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

8шт.

9

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

10

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

11

127367A1

NUT,M6, U

2шт.

12

247118A1

BAND

Lower

1шт.

13

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

4шт.

14

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

15

832-41306

NUT,M6 x 1, Cl 10

4шт.

16

348452A1

FASTENER,Push-In, 37mm L, Nylon

7.14 hole dia, Push-In

11шт.

17

348434A1

WASHER,7.14mm ID x 44.5mm OD x 1.3mm Thk

7.14 ID x 44.5 OD

11шт.

18

313457A1

INSULATOR

Heat Shield, Europe Only

1шт.

19

314588A1

PLATE

Models Without Deluxe Heater, Europe Only

2шт.

Выбрано товаров: 20
