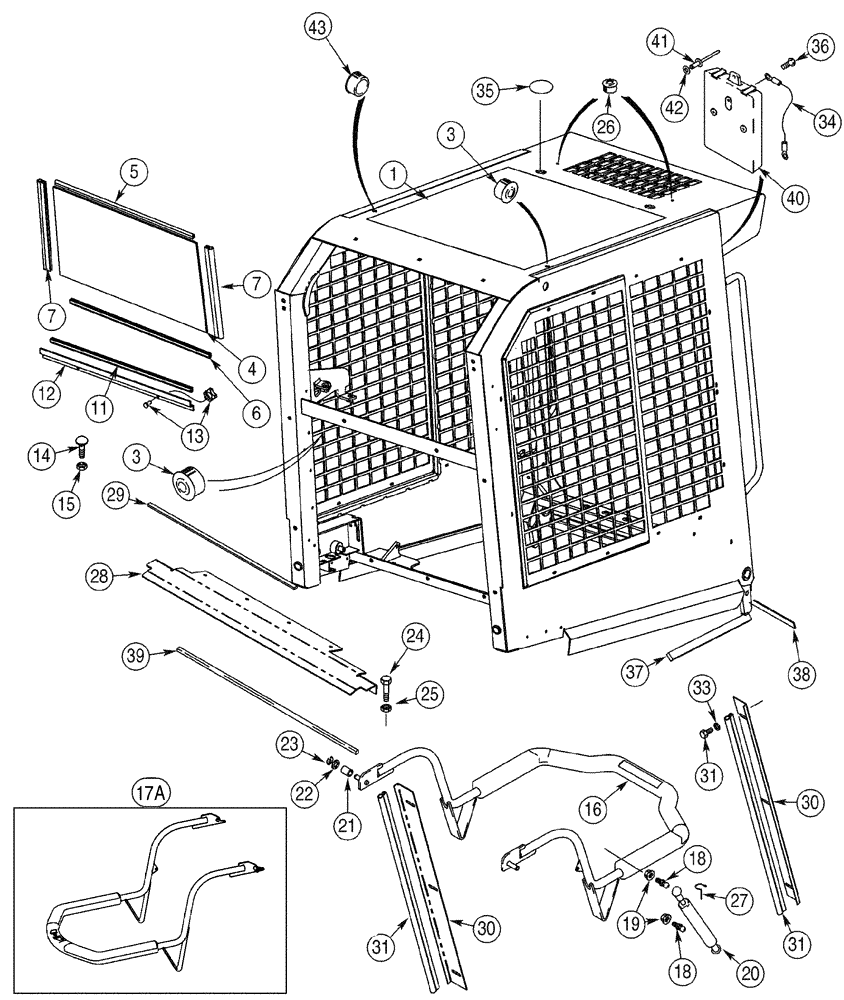

Запчасти Case IH 90XT (09-38) - CANOPY, ROPS FRAME AND SEAT BAR, MODELS WITH DELUXE HEATER (09) - CHASSIS

1

366819A1

ROPS, Two Piece Side Screen, North American Models JAF0319917-JAF0320049, European Models JAF0274255-JAF0274261, Order Decals Separately Ref 5 (9-187), Ref 1 & 2 (9-191), Ref 1 & 6 (9-197), Also Order 4 - 15, Machinery Item

1шт.

1

430800A1

ROPS, One Piece Side Screen, Not Illustrated, North American Models JAF0320050-, European Models JAF0274262-, Order Decals Separately Ref 5 (9-187), Ref 1 & 2 (9-191), Ref 1 & 6 (9-197), Also Order 4 - 15, Machinery Item

1шт.

3

353-411

PLUG,Dome, 1.000" hole, Nylon

4шт.

4

373200A1

GLASS

Rear

1шт.

5

373315A1

DOOR SEAL

579 mm (22-13/16 in)

1шт.

6

321275A1

SEAL

587 mm (23-1/8 in)

1шт.

7

373316A1

DOOR SEAL

376 mm (14-13/16 in)

2шт.

8

833-40006

SPRING NUT,M6, U

M6

2шт.

9

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

10

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

333988A1

SEAL

639 mm (25-5/32 in)

1шт.

12

321270A1

RETAINER

334 mm (13-5/32 in) Between Bolt Holes, If Used

1шт.

12

414792A2

BRACKET

300 mm (11-13/16 in) Between Bolt Holes, Replaces: 414792A1, If Used

1шт.

13

362337A1

KNOB

2шт.

14

611-8020

CARRIAGE BOLT,M8 x 20mm, Class 4.6

3шт.

15

832-41308

NUT,M8 x 1.25, Cl 10

3шт.

16

250842A3

BAR ASSY.

North American Models -JAF0245805, European Models -JAF0274201

1шт.

17

318038A1

BAR ASSY.

North American Models JAF0245806-JAF0320049, European Models JAF0274202-JAF0274261

1шт.

17a

419844A1

BAR

North American Models JAF0320050-, European Models JAF0274262-

1шт.

18

189609A1

BALL STUD,M8 x 1.25

M8

2шт.

19

825-5148

SERRATED NUT,M8, Flg Ser

2шт.

20

189787A2

SHOCK ABSORBER

1шт.

21

136209A1

BUSHING,12.77mm ID x 19.12mm OD x 25.53mm L

2шт.

22

496-21053

WASHER,17/32" x 1 1/16" x .134"

2шт.

23

D143415

SNAP RING,0.50” ID, Klipring

1/2

2шт.

24

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

26

353-400

PLUG,Dome, .250" hole, Nylon

If used

2шт.

27

254307A1

CLIP

2шт.

28

291259A2

COWL

Hood

1шт.

29

275066A1

SEAL

628 mm

1шт.

30

225420A1

ANGLE BAR

ROPS To Frame Seal Holder

2шт.

31

188980A1

SEAL

875 mm

2шт.

32

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

34

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Manual, Operators, Replaces: L11541, L18331

1шт.

35

293887A1

COVER

70 mm (2-3/4 in), Models Without Lift Hooks

2шт.

36

R46463

SCREW,0.18" x 0.75"

1шт.

37

313149A1

SEAL

355 mm (14 in), ROPS Sreen To Chassis

2шт.

38

313150A1

SEAL

774 mm (30-1/2 in), ROPS Side Front Toe Guard

1шт.

39

315083A1

SEALING STRIP

610 mm (40 inch), Window Frame, Europe Only

1шт.

40

R46464

CASE

1шт.

41

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32

3шт.

42

495-31020

WASHER,#10

(13/64" x 15/32" x 3/64")

3шт.

43

414635A1

COVER,25.4mm OD x 0.51mm Thk

25.4 mm (1 in), Gray, If Used

2шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

4шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
