Артикул
Название
Примечание
Количество

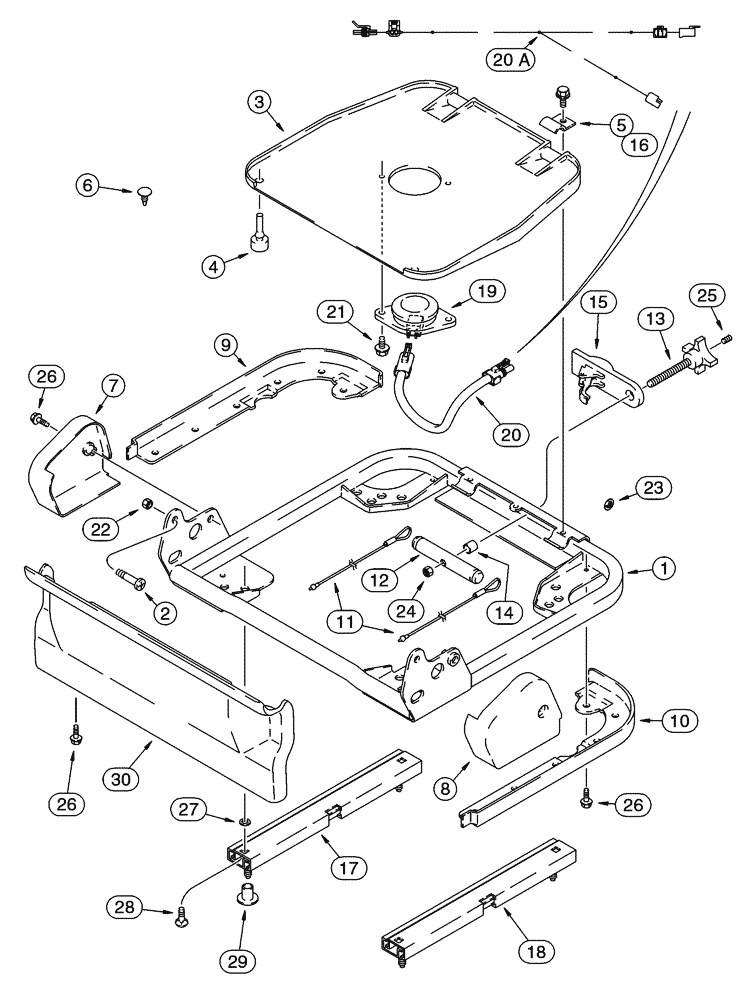

308307A1
SEAT
Consists Of: 1 - 30, Includes: Figures 9-31- 9-34, Replaces: 222023A2 & 302138A1
1шт.
1
NSS
NOT SOLD SEPARAT
FRAME Seat
1шт.
291757A1
ASSEMBLY
Cconsists Of: 2
1шт.
2
NSS
NOT SOLD SEPARAT
BOLT Special
3шт.
291758A1
ASSEMBLY
Consists Of: 3 - 6
1шт.
3
NSS
NOT SOLD SEPARAT
PLATE Base
1шт.
291752A1
ASSEMBLY
Consists Of: 4
1шт.
4
NSS
NOT SOLD SEPARAT
BUMPER
2шт.
5
NSS
NOT SOLD SEPARAT
CLIP
2шт.
291760A1
ASSEMBLY
Consists Of: 6
1шт.
6
NSS
NOT SOLD SEPARAT
CLIP
7шт.
291751A1
ASSEMBLY
Consists Of: 7, 8
1шт.
7
NSS
NOT SOLD SEPARAT
COVER Left Hand
1шт.
8
NSS
NOT SOLD SEPARAT
COVER Right Hand
1шт.
291750A1
ASSEMBLY
Consists Of: 9, 10
1шт.
9
NSS
NOT SOLD SEPARAT
FENDER Left Hand
1шт.
10
NSS
NOT SOLD SEPARAT
FENDER Right Hand, Not Illustrated
1шт.
291753A1
ASSEMBLY
Consists Of: 11
1шт.
11
NSS
NOT SOLD SEPARAT
CABLE
2шт.
12
291772A1
BAR
1шт.
291755A1
ASSEMBLY
Consists Of: 13, 14
1шт.
13
NSS
NOT SOLD SEPARAT
KNOB Weight Adjustment
1шт.
14
NSS
NOT SOLD SEPARAT
SPACER
1шт.
15
291769A1
INDICATOR
Weight Adjuster
1шт.
291759A1
ASSEMBLY
Consists Of: 16
1шт.
16
NSS
NOT SOLD SEPARAT
CLIP
2шт.
291768A1
ASSEMBLY
Consists Of: 17, 18, 27, 28
1шт.
17
NSS
NOT SOLD SEPARAT
SLIDE Left Hand, Order 291768A1
1шт.
18
NSS
NOT SOLD SEPARAT
SLIDE Right Hand, Order 291768A1
1шт.
19
242306A2
SWITCH
Operator Presence, Replaces: 291773A1, 242306A1
1шт.
20
302137A1
HARNESS
Seat, Two Connector, JAF0237208-, Replaces: 291774A1, Not Included In Assembly, Purchase Separately
1шт.
20a
242132A2
HARNESS
Seat, Three Connector, -JAF0237207, See Page(s) 4-19, 4-25, Not Included In Assembly, Purchase Separately
1шт.
21
NSS
NOT SOLD SEPARAT
BOLT
4шт.
22
NSS
NOT SOLD SEPARAT
NUT
2шт.
23
NSS
NOT SOLD SEPARAT
NUT Special
1шт.
24
NSS
NOT SOLD SEPARAT
NUT
1шт.
25
NSS
NOT SOLD SEPARAT
SETSCREW
1шт.
26
NSS
NOT SOLD SEPARAT
BOLT Special
8шт.
27
NSS
NOT SOLD SEPARAT
SPACER
4шт.
28
NSS
NOT SOLD SEPARAT
BOLT Special
4шт.
29
NSS
NOT SOLD SEPARAT
CAP
4шт.
30
291775A1
BELLOWS
1шт.
Выбрано товаров: 42
