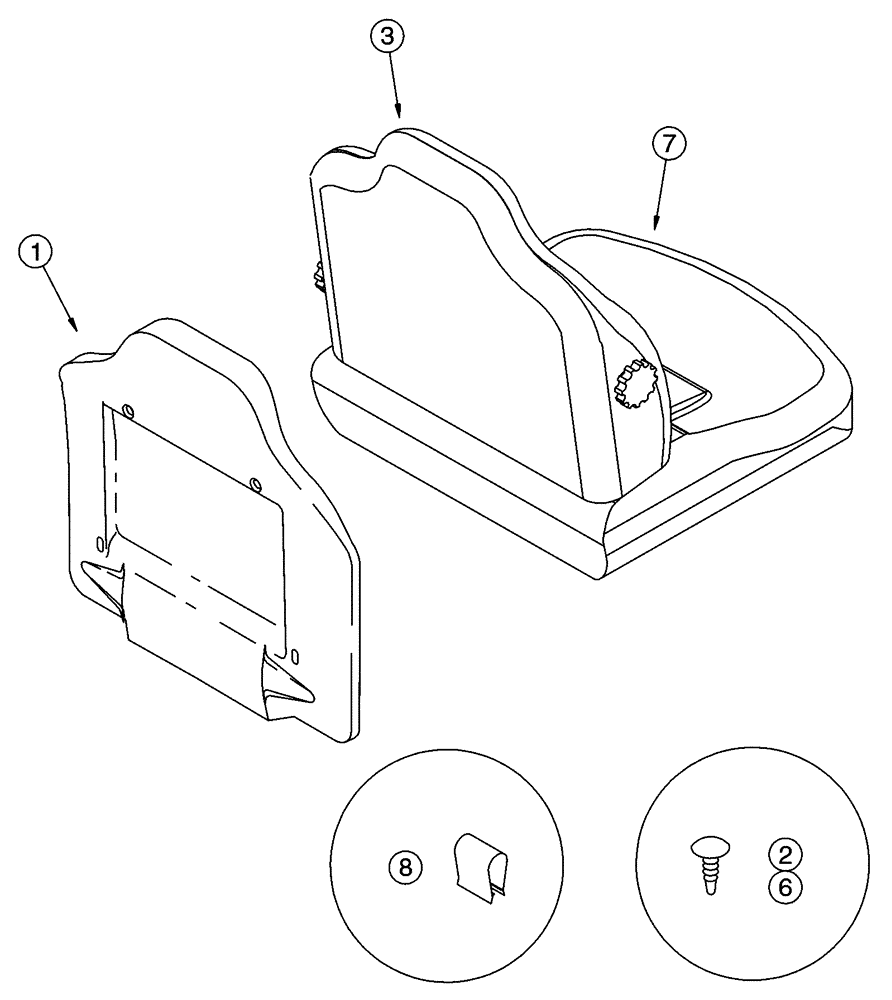

Запчасти Case IH 90XT (09-32) - SEAT SUSPENSION (09) - CHASSIS

308307A1

SEAT

Consists Of: 1 - 8, Includes: Figures 9-31 - 9-34, Replaces: 222023A2 & 302138A1

1шт.

1

291770A1

PANEL

Backrest

1шт.

291764A1

ASSEMBLY

Backrest Pad, Consists Of: 2 - 5

1шт.

291760A1

ASSEMBLY

Consists Of: 2

1шт.

2

NSS

NOT SOLD SEPARAT

CLIP

7шт.

3

NSS

NOT SOLD SEPARAT

CUSHION Backrest

1шт.

4

NSS

NOT SOLD SEPARAT

EMBLEM Lumbar, Not Illustrated

1шт.

5

NSS

NOT SOLD SEPARAT

EMBLEM Recliner, Not Illustrated

1шт.

291763A1

ASSEMBLY

Cushion, Seat, Consists Of: 6 - 8

1шт.

291760A1

ASSEMBLY

Consists Of: 6

1шт.

6

NSS

NOT SOLD SEPARAT

CLIP

7шт.

7

NSS

NOT SOLD SEPARAT

CUSHION Seat

1шт.

291762A1

ASSEMBLY

Consists Of: 8

1шт.

8

NSS

NOT SOLD SEPARAT

CLIP

2шт.
