Запчасти Case IH 90XT (09-26) - DOOR, REAR WITHOUT SOUNDPROOFING NORTH AMERICA, DOOR WITH WELDED SHROUD (09) - CHASSIS

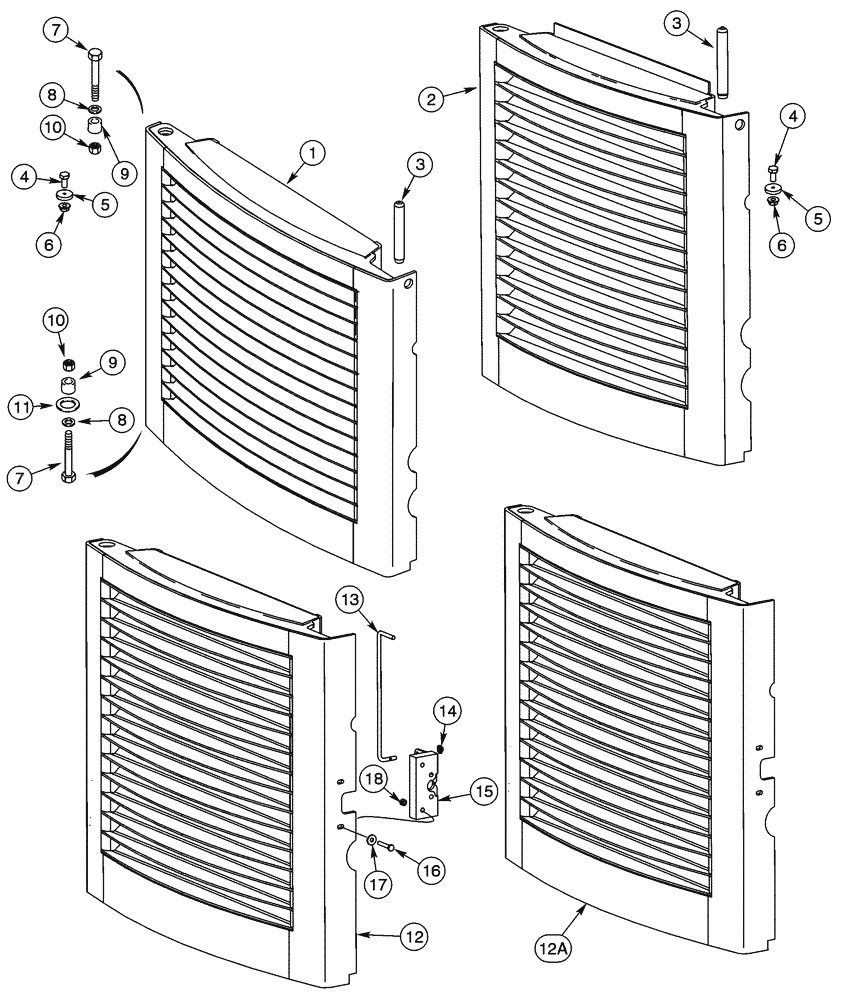

Схема запчастей Case IH 90XT - (09-26) - DOOR, REAR WITHOUT SOUNDPROOFING NORTH AMERICA, DOOR WITH WELDED SHROUD (09) - CHASSIS
12a
7
8
4
10
6
2
9
10
18
3
1
15
5
11
8
7
5
9
17
13
6
16
12
14
3
4

Артикул

Название

Примечание

Количество

1

352403A1

DOOR ASSY.

Rear, Models Without Air Conditioning, Without Door Latch, Ref. 15, If Used

1шт.

2

364196A1

DOOR ASSY.

Rear, Models With Air Conditioning

1шт.

3

1978473C1

HANDLE

1шт.

4

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

6

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

7

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

8

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

9

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

2шт.

10

832-41316

NUT,M16 x 2, Cl 10

2шт.

11

248988A1

THRUST WASHER

1шт.

12

434568A1

DOOR

Rear, Models Without Air Conditioning, With Door Latch, Ref. 15, For Mounting, See Ref. 7 - 11, If Used

1шт.

12a

434583A1

DOOR

Rear, Models With Air Conditioning, With Door Latch, Ref. 15, For Mounting, See Ref. 7 - 11, If Used

1шт.

13

434565A1

ROD

Latch Pull

1шт.

14

380751A1

NUT

Push

1шт.

15

R55002

LATCH

1шт.

16

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

2шт.

17

895-25006

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

2шт.

18

832-41406

NUT,M6 x 1, Cl 8

2шт.

5

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

Выбрано товаров: 19
