Запчасти Case IH 90XT (09-25) - DOOR, REAR WITHOUT SOUNDPROOFING NORTH AMERICA, DOOR WITHOUT WELDED SHROUD (09) - CHASSIS

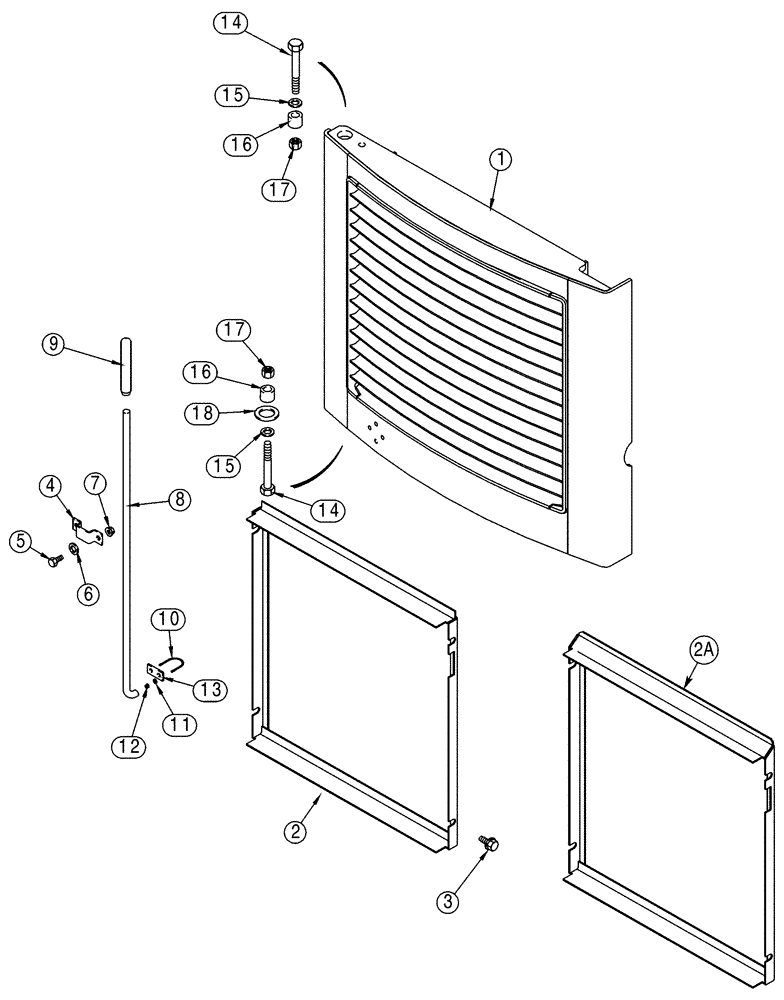

Схема запчастей Case IH 90XT - (09-25) - DOOR, REAR WITHOUT SOUNDPROOFING NORTH AMERICA, DOOR WITHOUT WELDED SHROUD (09) - CHASSIS
3
11
6
2a
5
18
14
15
15
2
8
14
17
16
9
17
13
4
1
7
12
10
16

Артикул

Название

Примечание

Количество

1

280610A1

DOOR

Rear, No Longer Available, Order 352403A1, Ref. 1 (Figure 9-26), Models With Air Conditioning, Order 364196A1, Ref. 2 (Figure 9-26)

1шт.

2

280672A2

DEFLECTOR

Replaces: 280672A1

1шт.

2a

302064A1

DEFLECTOR

Models With Air Conditioning

1шт.

3

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

4

194152A1

STAPLE

1шт.

5

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

7

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

8

194280A1

ROD

1шт.

9

1978473C1

HANDLE

1шт.

10

282510A1

U-BOLT

BOLT "U"

1шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

12

832-41306

NUT,M6 x 1, Cl 10

2шт.

13

H373779

LARGE PLATE

PLATE, LARGE

1шт.

14

827-16060

BOLT,Hex, M16 x 2 x 60mm, Cl 10.9

2шт.

15

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

16

248461A1

BUSHING,16.5mm ID x 24mm OD x 22mm L

2шт.

17

832-41316

NUT,M16 x 2, Cl 10

2шт.

18

248988A1

THRUST WASHER

1шт.

6

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

Выбрано товаров: 19
