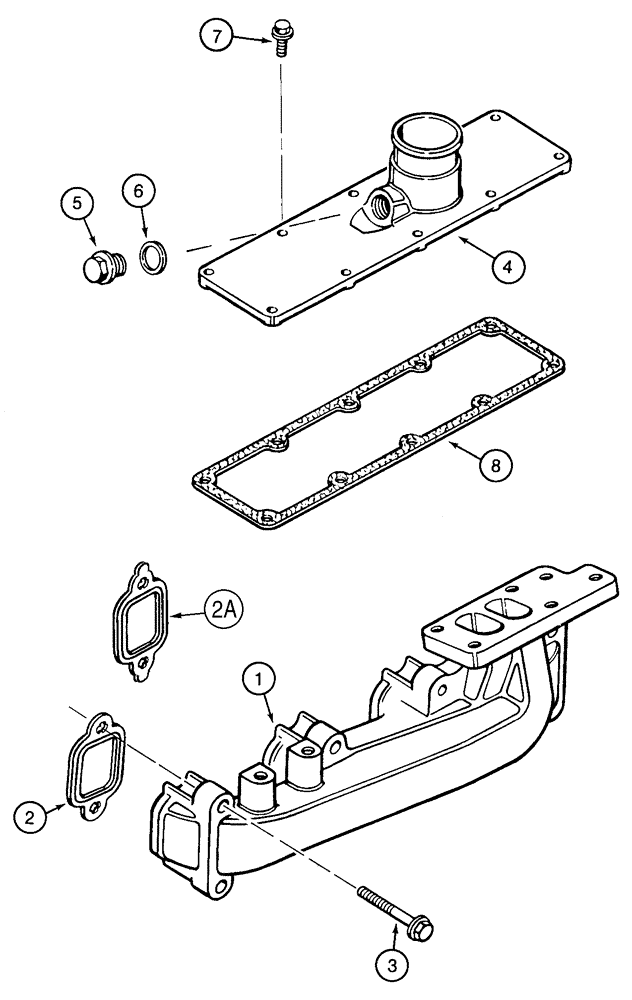

Запчасти Case IH 90XT (02-14) - MANIFOLDS NORTH AMERICA/EUROPE - JAF0245224 (02) - ENGINE

1

J901919

MANIFOLD

1шт.

2

J905443

MANIFOLD GASKET

No Longer Available, Order J927154

4шт.

2a

J927154

GASKET,0.38mm Thk

4шт.

3

J930249

FLANGE BOLT,Hex, M10 x 1.5 x 65mm

10 x 65 mm

8шт.

A77416

COVER

No Longer Available, Order Ref. 4 - 6

1шт.

4

J904339

COVER

1шт.

5

J907185

PLUG

1шт.

6

J906773

WASHER

1шт.

7

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

10шт.

8

J938153

MANIFOLD GASKET,0.8mm Thk

Replaces: J931605

1шт.
