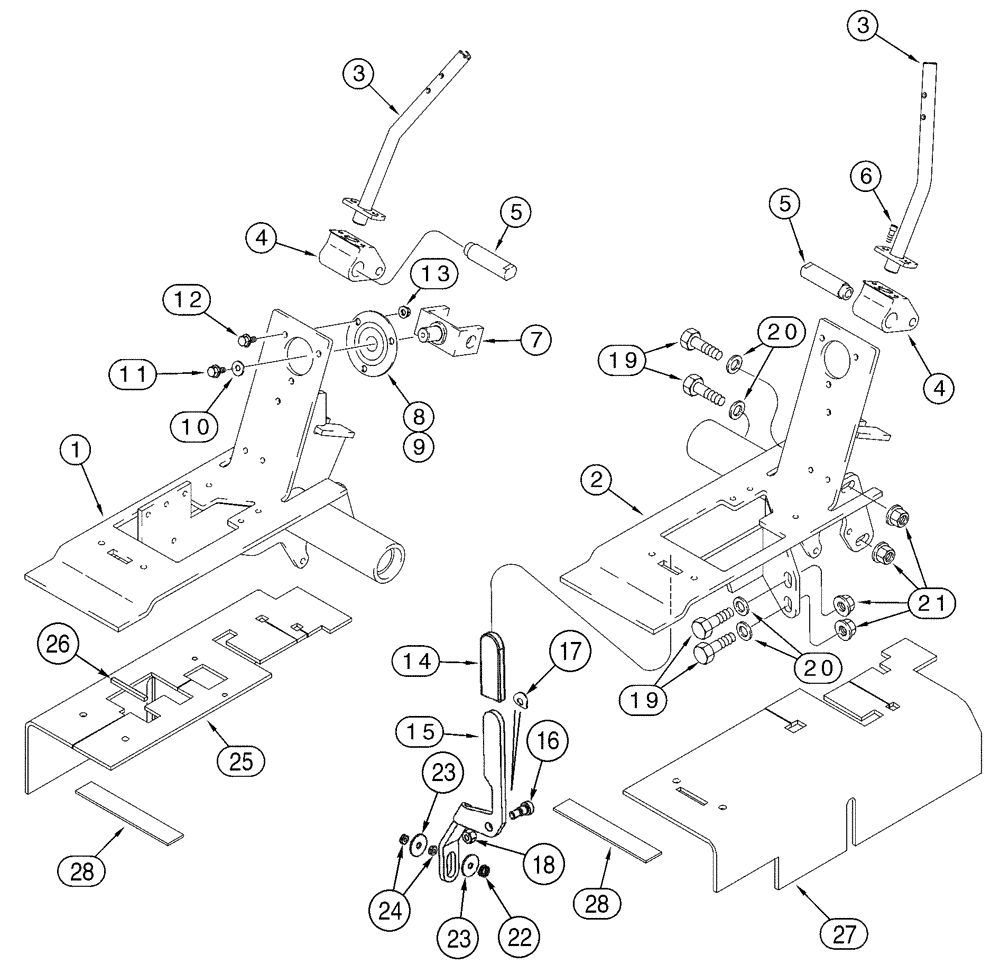

Запчасти Case IH 90XT (09-13) - CONTROLS LOADER AND GROUND DRIVE, MODELS WITHOUT FOOT CONTROLS, N.A. JAF0320050-, EUROPE JAF0274262- (09) - CHASSIS

1

186308A2

SUPPORT

Left Hand

1шт.

2

179492A5

SUPPORT

Right Hand

1шт.

3

275024A1

LEVER

For Attaching Parts, See Page(s) 4-59 - 4-71

2шт.

4

238357A3

PIVOT

2шт.

5

237774A1

SHAFT

2шт.

6

864-6016

HEX SOC SCREW,M6 x 16mm, Cl 8.8

4шт.

7

237772A1

SUPPORT

2шт.

8

112380A1

BEARING ASSY

Incl Ref 9

4шт.

9

465004R91

BEARING ASSY,0.6693" ID x 1.5748" OD x 0.4724"

1шт.

Part of P/N 112380A1

1шт.

10

396-41028

WASHER,.281" x 7/8" x .098", HDN

2шт.

11

845-6016

BOLT,Hex Flg, M6 x 16mm, Cl 8.8

M6 x 16

2шт.

12

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

6шт.

13

825-5146

SERRATED NUT,M6, Flg Ser

6шт.

14

D126613

HANDLE

1шт.

15

418663A2

LEVER

Replaces: 418663A1

1шт.

16

121-251

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

1шт.

17

278332A1

SPRING WASHER

if used

1шт.

18

230-4215

NUT,5/16"-18, GA

1шт.

19

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

21

825-51410

FLANGE NUT,M10, Flg Ser

8шт.

22

418585A1

COIL SPRING

1шт.

23

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

24

225-14210

NUT,#10-32

2шт.

25

308877A1

PAD

Left Hand Console, Models With Deluxe Heater

1шт.

26

313278A1

BAND

50 mm (2 inch), Lock Slot Cover, Models With Deluxe Heater and Air Conditioning

1шт.

27

308879A1

PAD

Right Hand Console, Models With Deluxe Heater

1шт.

28

313323A1

SEAL

Console, Models With Deluxe Heater

2шт.

20

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.
