Запчасти Case IH 90XT (09-11) - CONSOLE, CONTROL (09) - CHASSIS

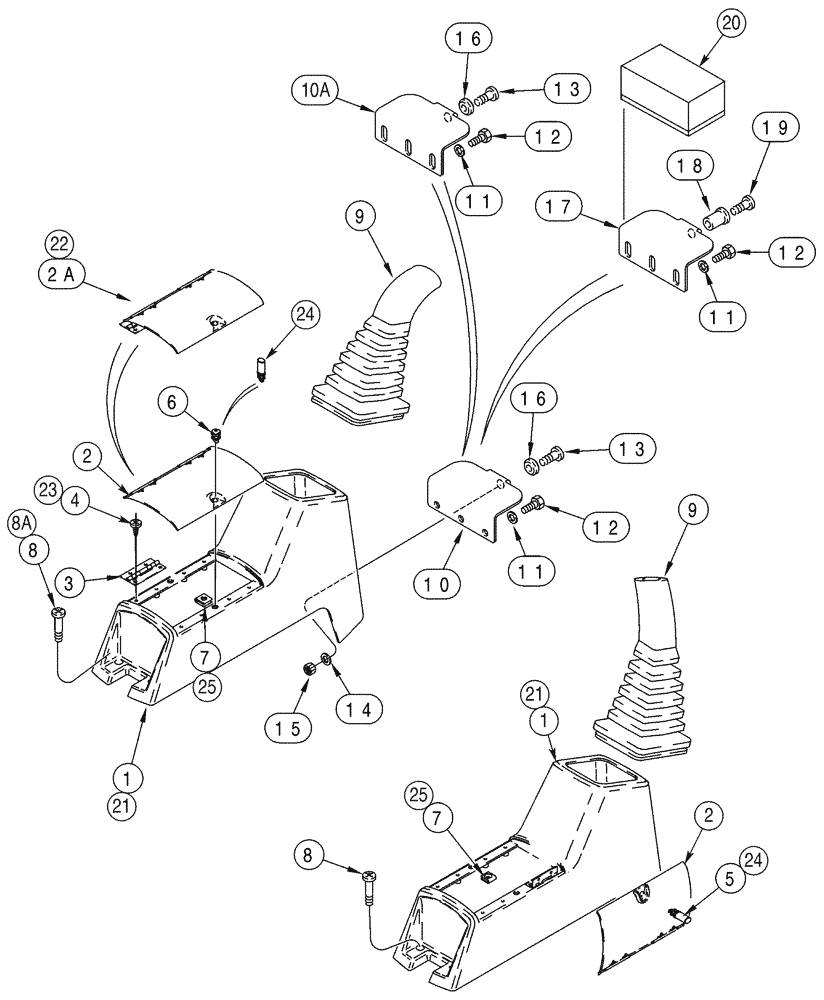

Схема запчастей Case IH 90XT - (09-11) - CONSOLE, CONTROL (09) - CHASSIS
1
8
4
3
20
8a
6
7
25
9
25
12
23
2
13
9
12
2a
18
1
17
12
21
15
11
24
24
21
8
2
13
10
7
5
16
19
22
10a
14
11
11
16

Артикул

Название

Примечание

Количество

236362A2

BRACKET

Left-Hand, Gray, If Used, Includes: Ref. 1 - 4, 6, 7

1шт.

236363A2

BRACKET

Right-Hand, Gray, If Used, Includes: Ref. 1 - 5, 7

1шт.

1

192298A1

CONSOLE

Control, Gray

1шт.

Part of P/N's 236362A2, 236363A2

1шт.

2

225636A1

COVER

No Longer Available, Order 2A

1шт.

Part of P/N's 236362A2, 236363A2

1шт.

2a

298049A2

COVER

Replaces: 298049A1, Gray

1шт.

Part of P/N's 236362A2, 236363A2

1шт.

3

225621A2

No Longer Available, Order 2A

2шт.

Part of P/N's 236362A2, 236363A2

1шт.

4

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

No. 6 st x 1/2

4шт.

Part of P/N's 236362A2, 236363A2

1шт.

5

236536A1

ARRESTER

Console, Right Hand

1шт.

Part of P/N 236363A2

1шт.

6

236537A1

SCREW

Console, Left Hand

1шт.

Part of P/N 236362A2

1шт.

7

236535A1

CLIP,ELECTRICAL

1шт.

Part of P/N's 236362A2, 236363A2

1шт.

8

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

4шт.

8a

840-1525

SCREW,Pan, M5 x 25mm, Cl 4.8

Models with Air Conditioning

4шт.

9

192654A2

BELLOWS

2шт.

10

192476A1

SUPPORT

Front, Console, No Longer Available, Order 192476A2, Ref. 10A

2шт.

10a

192476A2

SUPPORT

11.11 mm Hole, Front, Console, No Longer Available, Order 314570A1, Ref. 17

2шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

13

840-1520

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

If Used

2шт.

14

495-11028

WASHER,1/4", SAE

(9/32 x 5/8 x 1/16"), If used

2шт.

15

832-10405

NUT,M5 x .8, Cl 8

If used

2шт.

16

49561

GROMMET,1/4" ID x 7/16" Groove Dia

If Used

2шт.

17

314570A1

SUPPORT

9.52 mm Hole, Front, Console, If Equipped

2шт.

18

D122634

ISOLATOR,12.7mm OD x 14.1mm L

2шт.

19

190-103

SCREW,Cross Pan Hd, #10 - 32 x 1"

2шт.

20

295007A1

SEAL

135 mm (5-3/8 inch), Console, Models With Heaters and Air Conditioning

2шт.

426112A1

CONSOLE

Left-Hand, Tan, If Used, Includes: Ref. 21 - 25

1шт.

426111A1

CONSOLE

Right-Hand, Tan, If Used, Includes: Ref. 21 - 25

1шт.

21

426110A1

CONSOLE

Control, Tan

1шт.

Part of P/N's 426112A1, 426111A1

1шт.

22

426109A1

COVER ASSY

Tan; Incl. 22A

1шт.

Part of P/N's 426112A1, 426111A1

1шт.

22a

87396058

Hinge

2шт.

23

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

No. 6 st x 1/2

4шт.

Part of P/N's 426112A1, 426111A1

1шт.

24

236536A1

ARRESTER

Left Hand and Right Hand

1шт.

Part of P/N's 426112A1, 426111A1

1шт.

25

236535A1

CLIP,ELECTRICAL

1шт.

Part of P/N's 426112A1, 426111A1

1шт.

Выбрано товаров: 46
