Запчасти Case IH 90XT (08-71) - CYLINDER ASSEMBLY BACKHOE DIPPER NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS

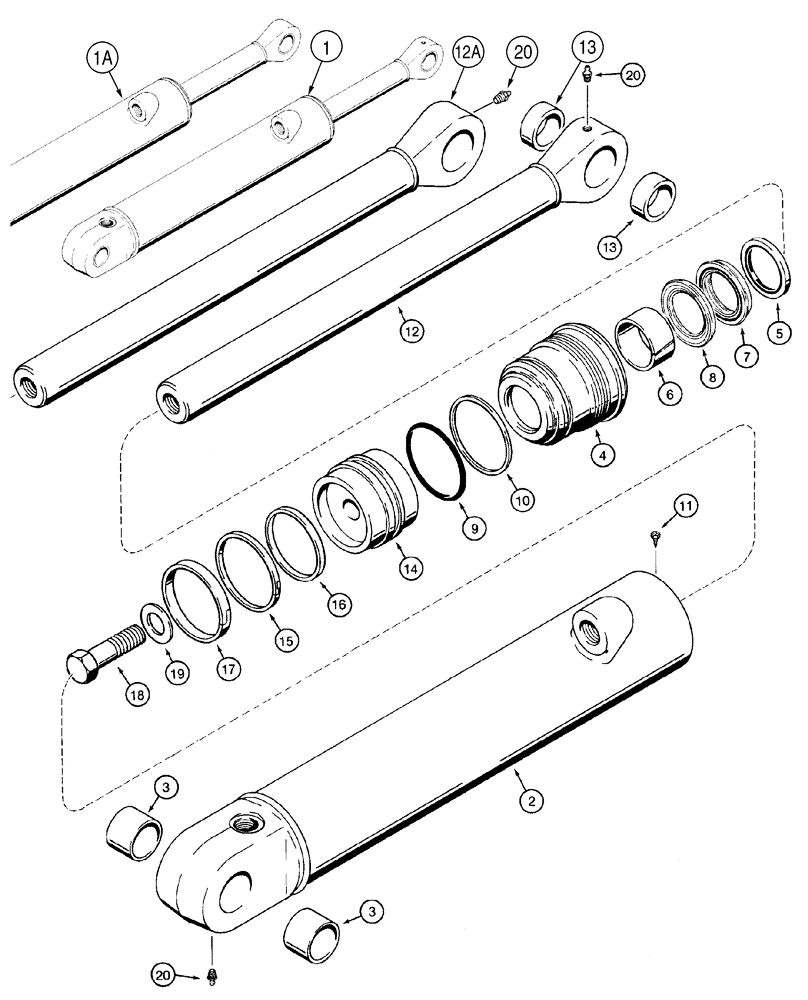

Схема запчастей Case IH 90XT - (08-71) - CYLINDER ASSEMBLY BACKHOE DIPPER NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS
5
14
13
19
2
17
20
6
9
15
4
7
20
16
18
20
8
3
10
1a
12
12a
1
3
11
13

Артикул

Название

Примечание

Количество

1

1346411C2

CYLINDER ASSY.

76 ID x 498 mm strk, Dipper, Consists Of: 2 - 12, 13 - 20, No Longer Available, Order 1346411C3, Ref. 1A

1шт.

1a

1346411C3

CYLINDER ASSY.,Double Acting, 38.1mm Rod, 497.8mm Stroke

76 ID x 498 mm strk, Dipper, Consists Of: 2 - 11, 12A - 20

1шт.

1346412C1

TUBE

Consists Of: 2, 3

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE

1шт.

Part of P/N 1346412C1

1шт.

3

R10754

BUSHING

2шт.

Part of P/N 1346412C1

1шт.

NSS

NOT SOLD SEPARAT

GLAND Packing, Consists Of: 4 - 10

1шт.

4

1346417C1

GLAND

1шт.

5

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

6

G102424

BUSHING,38.1mm ID x 41.17mm OD x 25.15mm L

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL, Order 1543256C1

1шт.

9

238-5231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.

10

G109298

RING,69.47mm ID x 75.57mm OD x 1.4mm Thk

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

1346414C2

PISTON ROD

38 mm (1-1/2 in) dia, Consists Of: 12, 13, No Longer Available, Order 1346414C3

1шт.

1346414C3

PISTON ROD

38 mm (1-1/2 in), Consists Of: 12A, 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD

1шт.

12a

NSS

NOT SOLD SEPARAT

ROD

1шт.

Part of P/N 1346414C3

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

Part of P/N 1346414C3

1шт.

14

1543369C1

PISTON

1шт.

15

G102288

SEAL,Locking, 71.71mm ID x 76.43mm OD x 6.96mm Thk

1шт.

16

G100444

SEALING RING,Square, 5.28mm Thk x 62.61mm ID

1шт.

17

G100449

WEAR RING,Split, 69.85mm ID x 76.2mm OD x 9.52mm Thk

1шт.

18

25974R1

BOLT,Hex, 1" - 14 x 2 1/2", Gr 8

1шт.

19

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

1543256C1

SEAL KIT,38.1mm Rod, 76.2mm Bore

Consists of 5 - 10, 15 - 17

1шт.
