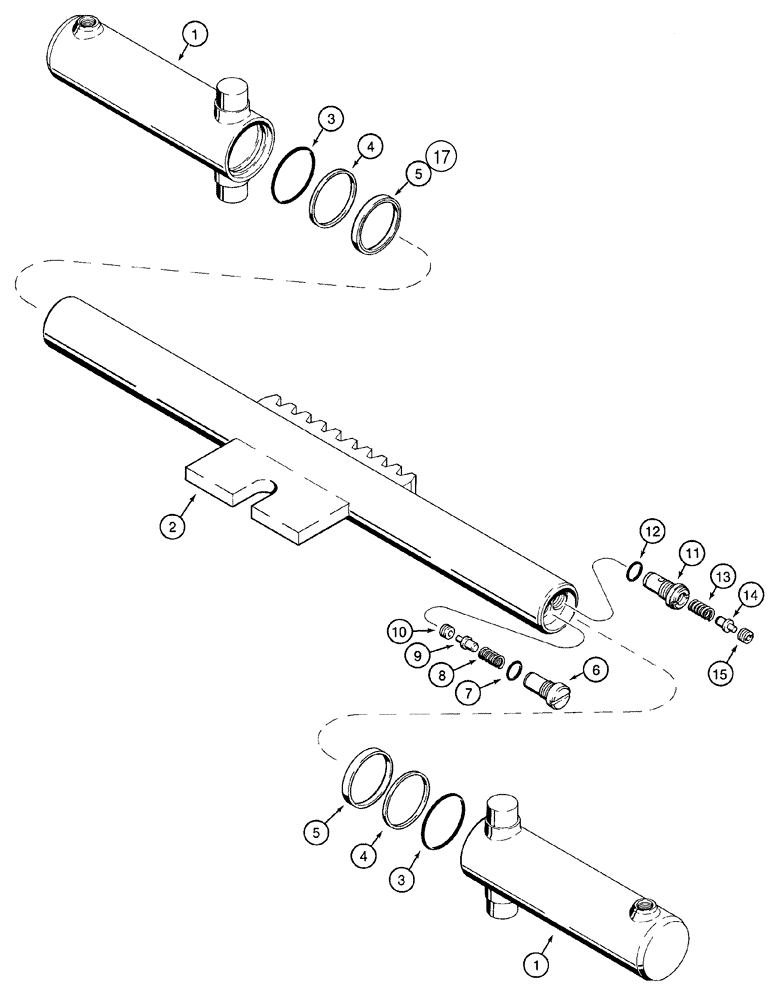

Запчасти Case IH 90XT (08-69) - CYLINDER ASSEMBLY BACKHOE SWING NORTH AMERICA, D125 BACKHOE (08) - HYDRAULICS

H673149

CYLINDER ASSY.

70 ID x 254 mm strk, Swing, Consists Of: 1 - 15, No Longer Available, Order 379623A1

1шт.

379623A1

CYLINDER ASSY.,Double Acting, 60.8mm Rod, 254mm Stroke

70 ID x 254 mm strk, Swing, Consists Of: 1, 2, 6 - 17

1шт.

1

H439098

BARREL

Used With H673149

2шт.

1

398164A1

TUBE

Used With 379623A1

2шт.

2

H439097

ROD

Used With H673149

1шт.

2

398163A1

PISTON ROD

Used With 379623A1

1шт.

3

H743591

O-RING

Used With H673149

2шт.

4

H754606

WASHER

Used WithH673149

2шт.

5

H215202

SEAL ASSY.

Used With H673149

2шт.

H53033

LOCK VALVE

Consists Of: 6 - 10

1шт.

6

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of P/N H53033

1шт.

7

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of P/N H53033

1шт.

8

F37883

SPRING

1шт.

Part of P/N H53033

1шт.

9

H138362

SPOOL

1шт.

Part of P/N H53033

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT

1шт.

Part of P/N H53033

1шт.

H53025

LOCK VALVE

Consists Of: 11 - 15

1шт.

11

NSS

NOT SOLD SEPARAT

BODY

1шт.

Part of P/N H53025

1шт.

12

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

1шт.

Part of P/N H53025

1шт.

13

F37883

SPRING

1шт.

Part of P/N H53025

1шт.

14

H138362

SPOOL

1шт.

Part of P/N H53025

1шт.

15

NSS

NOT SOLD SEPARAT

SEAT

1шт.

Part of P/N H53025

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL, U-Cup, Used With 379623A1, Order 398166A1, Not Illustrated

2шт.

17

NSS

NOT SOLD SEPARAT

SEAL, Used With 379623A1, Order 398166A1

2шт.

H53041

SEAL ASSY.

Consists Of: 3, 4, 5, 7, 12, Used With H673149

1шт.

398166A1

KIT

Used With 379623A1

1шт.
