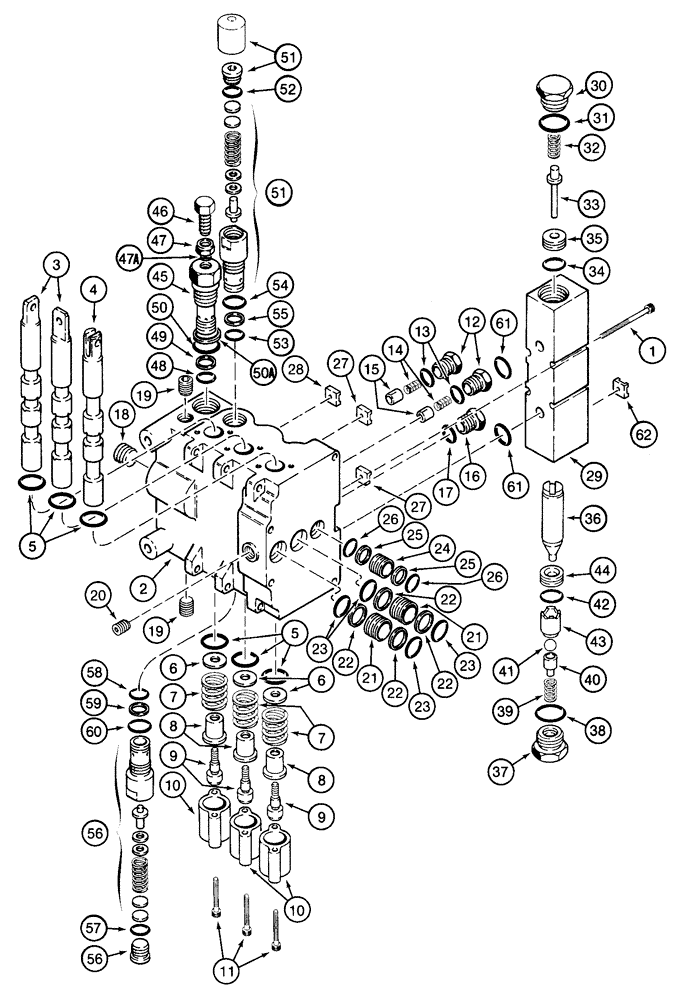

Запчасти Case IH 90XT (08-67) - VALVE, CONTROL BACKHOE NORTH AMERICA, D125 BACKHOE, INLET SECTION (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
H674500
VALVE
Backhoe, Consists Of: 1 - 26, Also Includes: 8-56 - 8-68
1шт.
1
62-31040
HEX SOC SCREW,#10 - 32 x 2 1/2"
4шт.
H674530
VALVE
Consists Of: 2 - 20
1шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
3
NSS
NOT SOLD SEPARAT
SPOOL
2шт.
4
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
5
H438030
O-RING
5/8 x 13/16
6шт.
H438021
SET
Consists Of: 6 - 11
3шт.
6
495-11034
WASHER,5/16", SAE
(11/32 x 11/16 x 1/16")
1шт.
7
N9539
TENSION SPRING
1шт.
8
NSS
NOT SOLD SEPARAT
SPACER
1шт.
9
NSS
NOT SOLD SEPARAT
BOLT
1шт.
10
NSS
NOT SOLD SEPARAT
CAP
1шт.
11
62-31024
SCREW,Hex Soc Hd, #10-32 x 1 1/2"
2шт.
H438024
SET
Consists Of: 12 - 15
2шт.
12
H438231
PLUG
1шт.
Part of SET P/N H438024
1шт.
14
NSS
NOT SOLD SEPARAT
SPRING
1шт.
Part of SET P/N H438024
1шт.
15
NSS
NOT SOLD SEPARAT
VALVE, poppet
1шт.
Part of SET P/N H438024
1шт.
16
H438231
PLUG
Includes: Ref. 17
1шт.
18
217-436
PLUG,Hex Soc, 3/8" - 18 NPTF
1шт.
19
217-433
PLUG,Hex Soc, 1/4" - 18 NPTF
2шт.
20
H438960
PLUG
1шт.
21
H438028
TUBE
Large, Includes: Ref. 22, 23
2шт.
22
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
2шт.
Part of P/N H438028
1шт.
23
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
2шт.
Part of P/N H438028
1шт.
24
H438029
TUBE
Small, Includes: Ref. 25, 26
1шт.
25
H438044
GASKET
2шт.
Part of P/N H438029
1шт.
26
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
2шт.
Part of P/N H438029
1шт.
27
100403A1
PLATE
PLATE, LARGE
2шт.
28
H438041
LARGE PLATE
PLATE, LARGE
1шт.
100405A2
BLOCK ASSY.
Consists Of: 29 - 44
1шт.
29
NSS
NOT SOLD SEPARAT
BODY
1шт.
111935A1
SET OF PARTS
Consists Of: 30 - 36
1шт.
30
113751A1
PLUG
1шт.
31
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
32
113747A1
SPRING
1шт.
33
H438334
VALVE
1шт.
34
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
35
113750A1
SEAT
1шт.
36
113749A1
PLUNGER
1шт.
37
H438031
PLUG
1шт.
38
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
39
102712A1
SPRING
1шт.
40
H438032
SLEEVE VALVE
1шт.
41
113748A1
BALL
1шт.
42
238-6016
O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro
1шт.
43
H438033
CUP
1шт.
44
113746A1
SEAT
1шт.
H438940
VALVE, PRESSURE RELI
EF Consists Of: 45 - 50A
1шт.
45
NSS
NOT SOLD SEPARAT
VALVE Relief
1шт.
46
NSS
NOT SOLD SEPARAT
BOLT
1шт.
47
NSS
NOT SOLD SEPARAT
NUT
1шт.
47a
H438328
SEAL,7.94mm ID x 11.11mm OD x 1.59mm Thk
1шт.
48
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
49
H438044
GASKET
1шт.
50
238-6017
O-RING,0.07" Thk x 0.676" ID, -17, Cl 6, 90 Duro
1шт.
50a
H438329
GASKET
1шт.
H438952
VALVE, PRESSURE RELI
EF Consists Of: 51 - 55
1шт.
51
NSS
NOT SOLD SEPARAT
VALVE Relief
1шт.
Part of P/N H438952
1шт.
H674536
O-RING
Consists Of: 52 - 55
1шт.
53
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
Part of P/N's H438952, H674536
1шт.
54
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Part of P/N's H438952, H674536
1шт.
55
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
Part of P/N's H438952, H674536
1шт.
H438947
VALVE, PRESSURE RELI
EF Consists Of: 56 - 60
1шт.
56
NSS
NOT SOLD SEPARAT
VALVE relief
1шт.
Part of P/N H438947
1шт.
H674536
O-RING
Consists Of: 57 - 60
1шт.
58
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
Part of P/N's H438947, H674536
1шт.
59
NSS
NOT SOLD SEPARAT
RING Backup
1шт.
Part of P/N's H438947, H674536
1шт.
60
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
1шт.
Part of P/N's H438947, H674536
1шт.
61
238-6113
O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro
2шт.
62
H438941
ORIFICE
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of SET P/N H438024
1шт.
17
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N H438231
1шт.
52
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N's H438952, H674536
1шт.
57
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N's H438947, H674536
1шт.
Выбрано товаров: 94
