Запчасти Case IH 90XT (08-60) - HYDRAULIC SYSTEM BACKHOE BOOM CYLINDER NORTH AMERICA, D125 BACKHOE W/ HOSES AT CONTROL VALVE (08) - HYDRAULICS

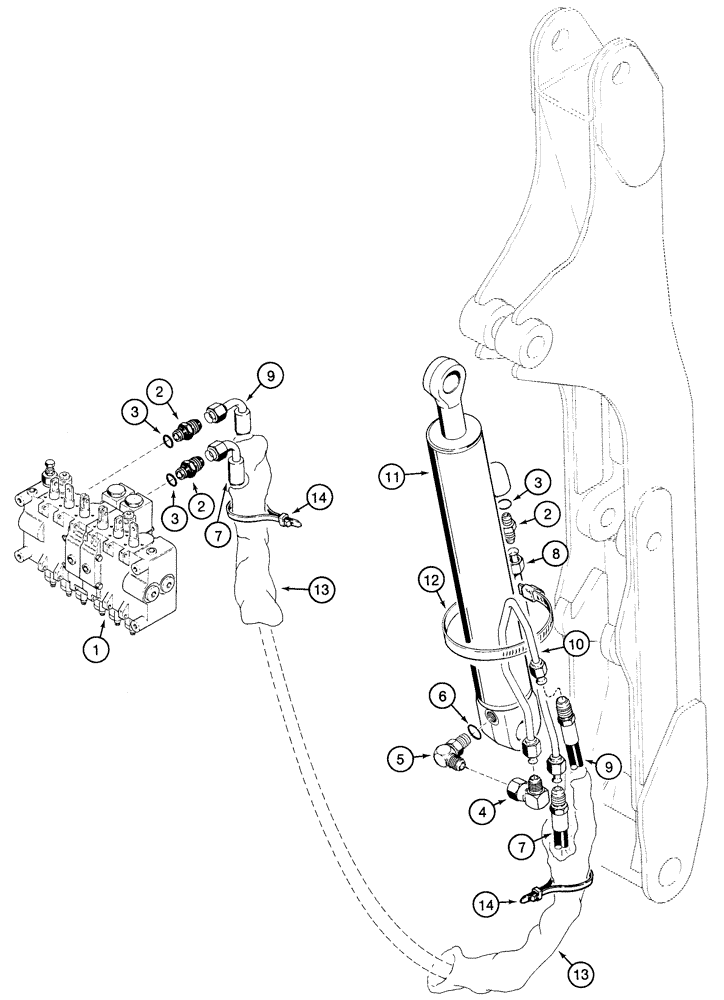

Схема запчастей Case IH 90XT - (08-60) - HYDRAULIC SYSTEM BACKHOE BOOM CYLINDER NORTH AMERICA, D125 BACKHOE W/ HOSES AT CONTROL VALVE (08) - HYDRAULICS
5
2
6
11
13
13
14
14
2
3
7
4
12
8
9
9
3
1
7
10
2
3

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Figure 8-56 - 8-68

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 3

3шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N 218-5059

1шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

5

H439269

ELBOW

Includes: Ref. 6

1шт.

6

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

Part of P/N H439269

1шт.

7

H438195

HOSE

1675 mm (66 in)

1шт.

8

H674565

TUBE,0.5" OD

1шт.

9

H438684

HOSE

1725 mm (68 in)

1шт.

10

H674566

TUBE,0.5" OD

1шт.

11

1346450C2

CYLINDER ASSY.

76 ID x 551 mm strk, Boom, See Figure 8-70

1шт.

12

214-1460

HOSE CLAMP,#60, 3.31" - 4.25", Type F Worm

1шт.

13

H439063

SLEEVE

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

Выбрано товаров: 16
