Запчасти Case IH 90XT (08-59) - HYDRAULIC SYSTEM BACKHOE STABILIZER CYLINDER NORTH AMERICA, D125 BACKHOE FOLD DOWN STABILIZERS (08) - HYDRAULICS

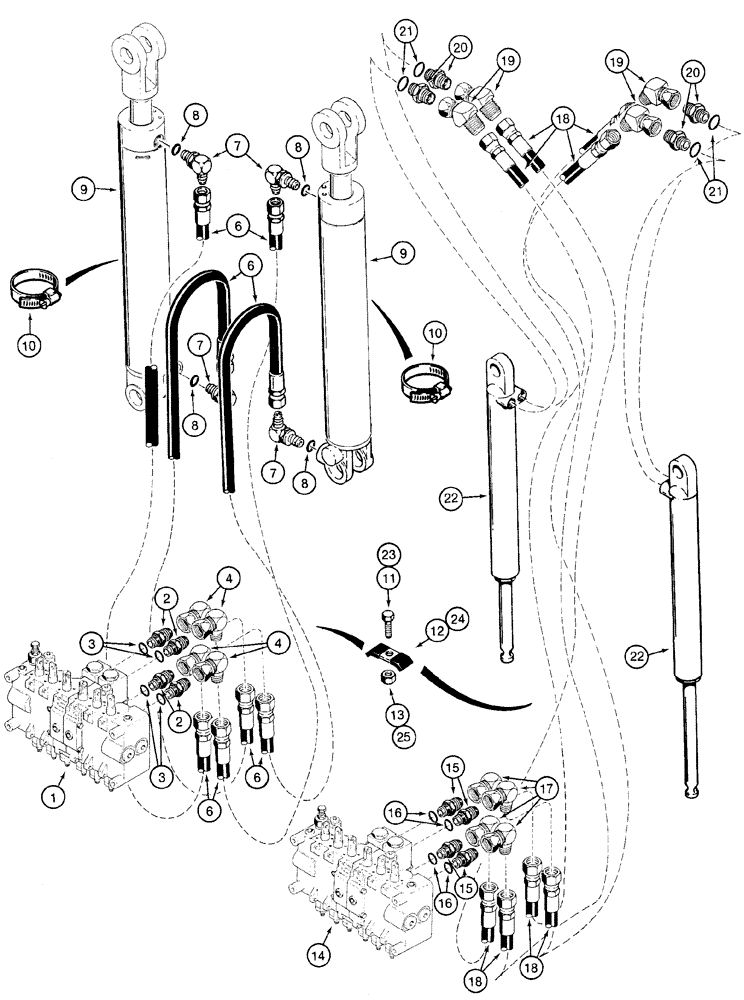

Схема запчастей Case IH 90XT - (08-59) - HYDRAULIC SYSTEM BACKHOE STABILIZER CYLINDER NORTH AMERICA, D125 BACKHOE FOLD DOWN STABILIZERS (08) - HYDRAULICS
19
1
24
8
2
9
4
10
7
12
3
3
8
9
6
7
17
6
23
21
13
18
25
18
15
20
8
6
22
21
6
4
14
10
16
19
11
8
18
15
2
20
16
22
7

Артикул

Название

Примечание

Количество

1

H674500

VALVE

Backhoe, See Figures 8-56 - 8-68, Fold Down Stabilizer

1шт.

2

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 or, Includes: Ref. 3, Fold Down Stabilizer

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Fold down stabilizer

1шт.

Part of P/N 218-5058

1шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Fold Down Stabilizer

4шт.

6

139517C1

HYDRAULIC HOSE

2032 mm (80 in), Fold Down Stabilizer

4шт.

7

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Incl. 8, Fold Down Stabilizer

4шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Fold down stabilizer

1шт.

Part of P/N 218-5128

1шт.

9

101643A1

CYLINDER ASSY.,Double Acting, 35.1mm Rod, 406.4mm Stroke

76 ID x 406 mm strk, Stabilizer, see Figure 8-73, Fold Down

2шт.

10

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

3-1/16 - 4 in dia, Fold Down Stabilizer

2шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Fold Down Stabilizer

2шт.

12

R17319

CLAMP

Fold Down Stabilizer

2шт.

13

232-4115

LOCK NUT,5/16"-18, GC

Fold Down Stabilizer

2шт.

14

H674500

VALVE

Backhoe, See Figures 8-56 - 8-68, Vertical Stabilizer

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

9/16 fl x 3/4 or, Includes: Ref. 16, Vertical Stabilizer

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Vertical stabilizer

1шт.

Part of P/N 218-5058

1шт.

17

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

Vertical Stabilizer

4шт.

18

139517C1

HYDRAULIC HOSE

2032 mm (80 in), Vertical Stabilizer

4шт.

19

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

Vertical Stabilizer

4шт.

20

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 21, Vertical Stabilizer

4шт.

22

H514117

CYLINDER BLOCK

51 ID x 305 mm strk, Stabilizer, See Figure 8-74, Vertical

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

Vertical Stabilizer

2шт.

24

R17319

CLAMP

Vertical Stabilizer

2шт.

25

232-4115

LOCK NUT,5/16"-18, GC

Vertical Stabilizer

2шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

Vertical stabilizer

1шт.

Part of P/N 218-5057

1шт.

Выбрано товаров: 28
