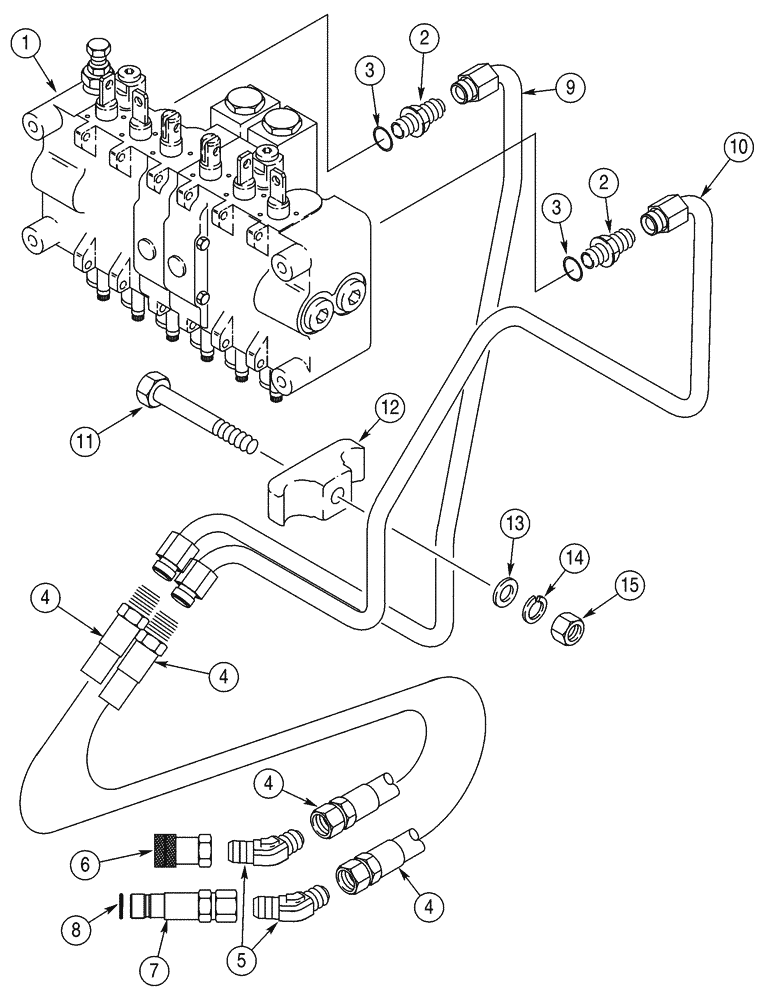

Запчасти Case IH 90XT (08-56) - HYDRAULIC SYSTEM BACKHOE SUPPLY AND RETURN NORTH AMERICA, D125 BACKHOE, IF USED (08) - HYDRAULICS

1

H674500

VALVE

Backhoe, See Figures 8-56 - 8-68

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 3

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

4

275095A1

HOSE ASSY.

1250 mm (49-7/32 in)

2шт.

5

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

6

143431A1

COUPLING, QUICK, FEM

Female, See Figure 8-27

1шт.

7

238243A1

COUPLING, BREAK AWAY

Male, Includes: Ref. 8

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL order 185786A1

1шт.

Part of P/N 238243A1

1шт.

185786A1

SET OF PARTS

Consists Of: 8

1шт.

9

259580A1

TUBE

Supply

1шт.

10

259582A1

TUBE,559, 445 mm Length

Supply

1шт.

11

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

12

D120613

CLAMP,20mm ID

Plastic

1шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

14

492-11031

LOCK WASHER,5/16"

1шт.

15

232-4115

LOCK NUT,5/16"-18, GC

1шт.
