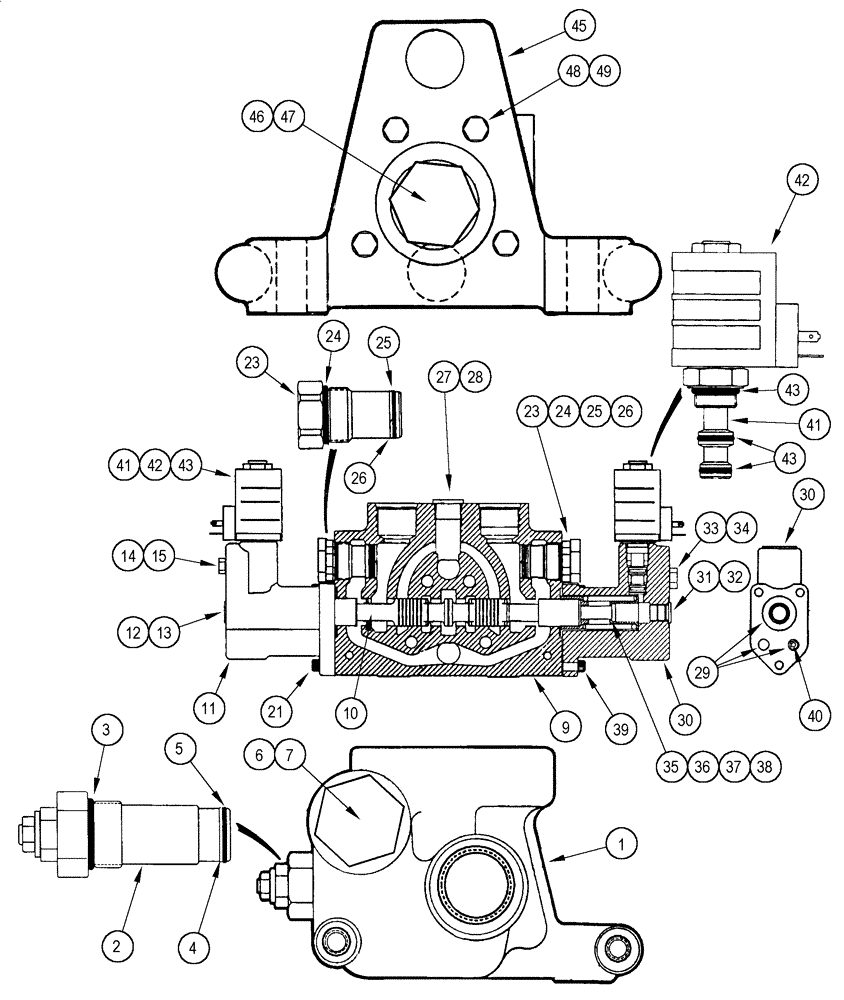

Запчасти Case IH 90XT (08-54) - VALVE, CONTROL HIGH FLOW, GEAR (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
227084A1
VALVE
Consists Of: 1 - 49
1шт.
245496A1
LARGE PLATE
PLATE, LARGE Inlet, Consists Of: 1 - 8
1шт.
1
245501A1
LARGE PLATE
PLATE, LARGE
1шт.
245502A1
VALVE
Consists Of: 2 - 5
1шт.
2
NSS
NOT SOLD SEPARAT
BODY
1шт.
3
237-6014
O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro
1шт.
4
D51530
RING
1шт.
5
238-6020
O-RING,0.07" Thk x 0.864" ID, -20, Cl 6, 90 Duro
1шт.
6
273916
PLUG,Hex, 1-5/16" - 12 ORB
Includes Ref. 7
1шт.
Part of P/N 218-5160
1шт.
8
245503A1
SEAL KIT
Not Illustrated, See Note
1шт.
245497A1
ELEMENT
Consists Of: 9 - 15
1шт.
9
NSS
NOT SOLD SEPARAT
BODY
1шт.
10
NSS
NOT SOLD SEPARAT
SPOOL
1шт.
245504A1
SOLENOID
Port 'B' End, Consists Of: 11 - 22
1шт.
11
245509A1
BODY
1шт.
12
76349
PLUG,9/16" - 18 ORB
Incl. Ref 13
1шт.
13
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N 218-5155
1шт.
14
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 15
1шт.
15
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
Part of P/N 218-5153
1шт.
Note : 245507A1 Seal Package Is Used Between The Solenoid Valves and The Control Valve Body. 245503A1 Seal Package Is Used Between The Valve Covers and The Control Valve Body.
1шт.
245510A1
SPRING
Not Illustrated, Consists Of: 16 - 20
1шт.
16
NSS
NOT SOLD SEPARAT
SPRING Seat
1шт.
17
NSS
NOT SOLD SEPARAT
SPRING
1шт.
18
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
19
NSS
NOT SOLD SEPARAT
STOP
1шт.
20
NSS
NOT SOLD SEPARAT
COLLAR
1шт.
21
193-558
SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"
3шт.
22
245511A1
SET SCREW
Not Illustrated
1шт.
245506A1
PLUG
Consists Of: 23 - 26
2шт.
23
NSS
NOT SOLD SEPARAT
PLUG
1шт.
Part of P/N 245506A1
1шт.
24
238-6023
O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro
1шт.
Part of P/N 245506A1
1шт.
25
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
1шт.
Part of P/N 245506A1
1шт.
26
L35295
SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk
1шт.
Part of P/N 245506A1
1шт.
27
86512512
PLUG,7/8" - 14 ORB
Incl. 28
1шт.
28
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
1шт.
Part of P/N 218-5157
1шт.
29
245507A1
SEAL KIT
See Note
2шт.
245505A1
SOLENOID
Port 'A' End, Consists Of: 30 - 40
1шт.
30
245512A1
BODY
1шт.
31
76349
PLUG,9/16" - 18 ORB
Incl. Ref 32
1шт.
32
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
1шт.
Part of P/N 218-5155
1шт.
33
9672438
PLUG,7/16" - 20 ORB
Incl. Ref. 34
1шт.
245513A1
SPRING
Consists Of: 35 - 38
1шт.
35
NSS
NOT SOLD SEPARAT
SPRING Seat
1шт.
Part of P/N 245513A1
1шт.
36
NSS
NOT SOLD SEPARAT
SPRING
1шт.
Part of P/N 245513A1
1шт.
37
NSS
NOT SOLD SEPARAT
PLUNGER
1шт.
Part of P/N 245513A1
1шт.
38
NSS
NOT SOLD SEPARAT
COLLAR
1шт.
Part of P/N 245513A1
1шт.
39
193-558
SCREW,SEMS, Slot Fil Hd, 1/4"-20 x 7/8"
3шт.
40
245511A1
SET SCREW
1шт.
245508A1
SOLENOID VALVE
Consists Of: 41, 42, 43
2шт.
245516A1
SET OF PARTS
Consists Of: 42, 43
1шт.
41
NSS
NOT SOLD SEPARAT
TUBE
1шт.
Part of P/N 245508A1
1шт.
245514A1
SOLENOID
Consists Of: 43
1шт.
42
245515A1
COIL ASSY.
1шт.
Part of P/N's 245508A1, 245516A1
1шт.
43
245517A1
SEAL KIT
Seal
1шт.
Part of P/N's 245508A1, 245516A1, 245514A1
1шт.
44
245503A1
SEAL KIT
Not Illustrated, See Note
1шт.
245498A1
LARGE PLATE
PLATE, LARGE Outlet, Consists Of: 44, 45, 46
1шт.
45
245518A1
LARGE PLATE
PLATE, LARGE
1шт.
46
273916
PLUG,Hex, 1-5/16" - 12 ORB
Includes Ref. 46
1шт.
245499A1
SET OF PARTS
Consists Of: 48, 49
1шт.
48
NSS
NOT SOLD SEPARAT
BOLT
4шт.
Part of P/N 245499A1
1шт.
49
NSS
NOT SOLD SEPARAT
WASHER Lock
4шт.
Part of P/N 245499A1
1шт.
Note: 245507A1 Seal Package Is Used Between The Solenoid Valves and The Control Valve Body. 245503A1 Seal Package Is Used Between The Valve Covers and The Control Valve Body.
1шт.
