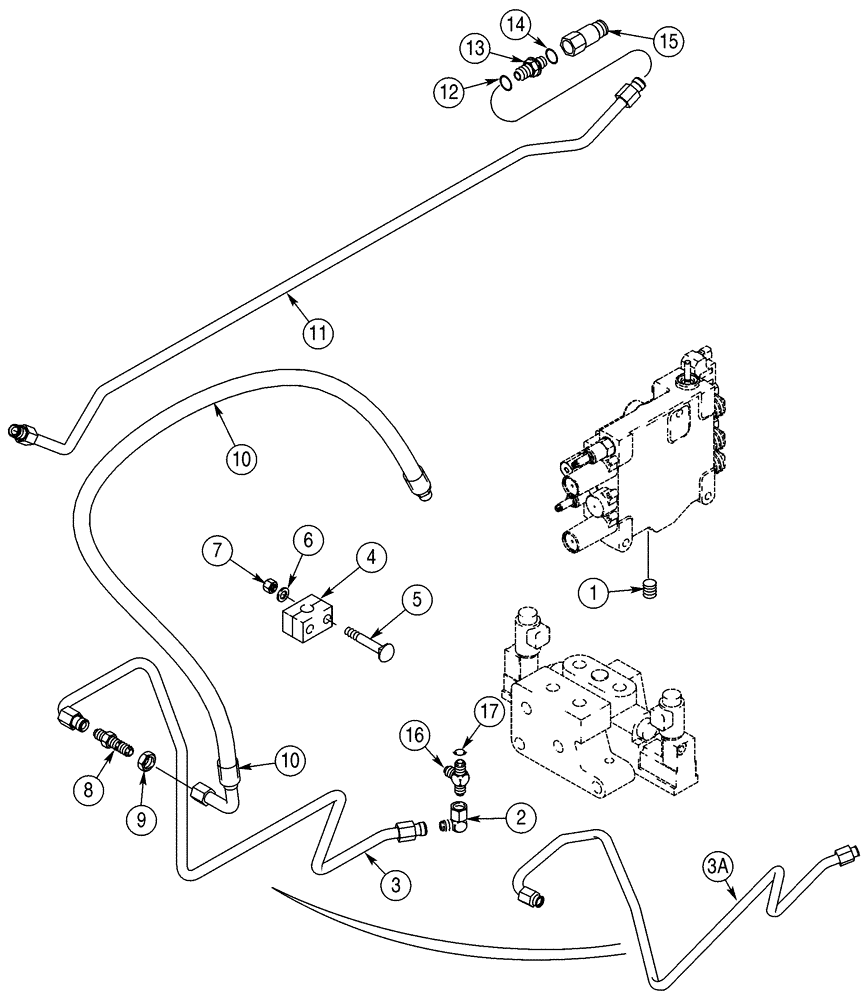

Запчасти Case IH 90XT (08-48) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS -JAF0320049, EUR. MODELS -JAF0274261 (08) - HYDRAULICS

1

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

3/8 PT, Used In Control Valve To Separate Power Beyond and Return

1шт.

2

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

3

257139A4

TUBE,15.88 mm OD, 759, 587 mm Length

No Longer Used, Order 257139A5, Ref. 3A

1шт.

3a

257139A5

TUBE,759, 587 mm Length

1шт.

4

254830A1

CLAMP BRACKET

2 Piece

1шт.

5

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

6

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

7

832-41306

NUT,M6 x 1, Cl 10

2шт.

8

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

9

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

10

256704A2

HOSE ASSY.

1667 mm (65-5/8 in)

1шт.

11

277356A3

PIPE

Replaces: 277356A2

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

15

122180A1

COUPLING, BREAK AWAY

See Figure 8-27

1шт.

16

257868A1

TEE

Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 257868A1

1шт.
