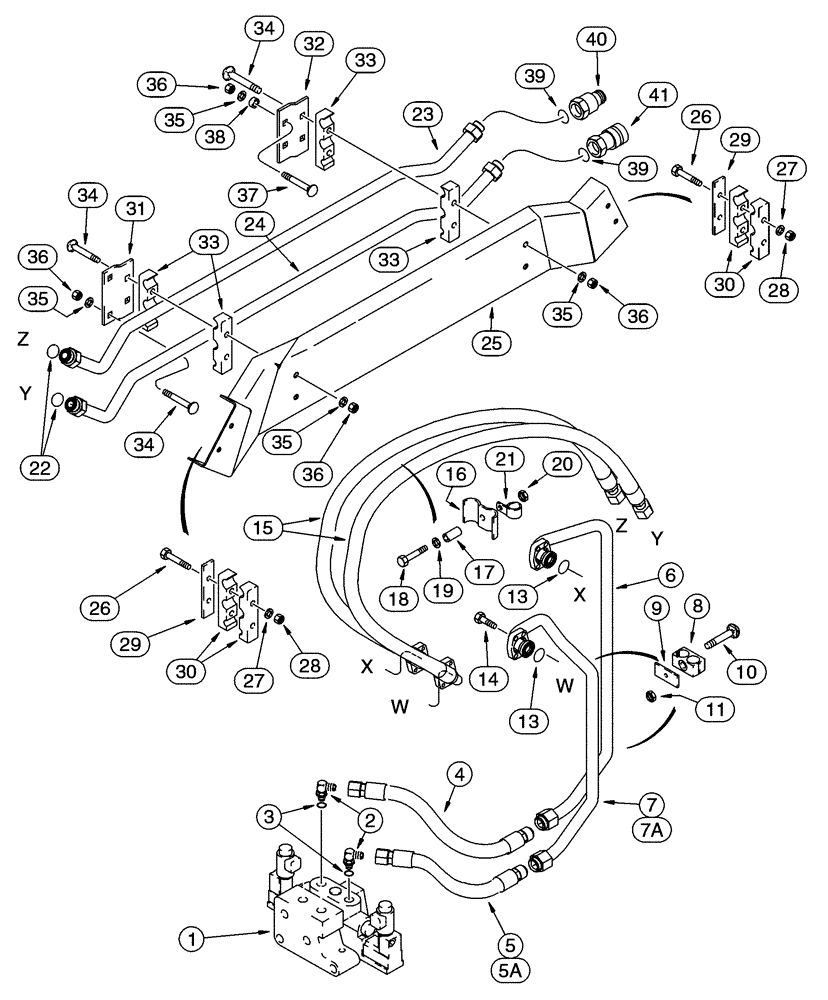

Запчасти Case IH 90XT (08-47) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, NORTH AMERICAN MODELS -JAF0320049, EUR. MODELS -JAF0274261 (08) - HYDRAULICS

1

227084A1

VALVE

See Figures 8-43 - 8-47

1шт.

2

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5118

1шт.

4

255513A1

TUBE,520 mm Length

520 mm (20-1/2 in)

1шт.

5

255512A1

TUBE,425 mm Length

425 mm (16-3/4 in), Used With Ref. 7, 257336A2

1шт.

5a

293655A1

HOSE

405 mm (16 in), Used With Ref. 7A, 293657A1

1шт.

6

257334A2

TUBE

1шт.

7

257336A2

TUBE

See Note

1шт.

7a

293657A1

TUBE

See Note

1шт.

8

225529A1

CLAMP,Dual, 25.4mm ID

2 Piece

2шт.

9

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

10

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

Note: The Straight Length Of 257336A2 Tube At The End That Connects To The Hose To The Control Valve Is 67 mm (2-5/8 in) Long. The Straight Length Of 293657A1 Tube At The End That Connects To The Hose To Control Valve Is 87 mm (3-7/16 in) Long.

1шт.

11

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

13

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

14

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

15

256703A2

HOSE ASSY.

1623 mm (64 in)

2шт.

16

276433A1

CLAMP

1шт.

17

256690A1

SPACER

1шт.

18

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

1шт.

19

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

21

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

23

277352A1

PIPE

Upper

1шт.

24

277354A1

PIPE

Lower

1шт.

25

277197A1

COVER

1шт.

26

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

28

832-41310

NUT,M10 x 1.5, Cl 10

4шт.

29

256976A1

BAR

2шт.

30

256974A2

FIXING BRACKET

4шт.

31

282954A1

SUPPORT

Upper

1шт.

32

282953A1

SUPPORT

Lower

1шт.

33

256974A2

FIXING BRACKET

4шт.

34

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

6шт.

35

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

36

832-41312

NUT,M12 x 1.75, Cl 10

8шт.

37

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

M12 x 80

2шт.

38

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

1/2 x 3/8

2шт.

39

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

40

254293A1

QUICK MALE COUPLING

Male

1шт.

41

198474A1

COUPLING

Female

1шт.

20

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

27

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.
