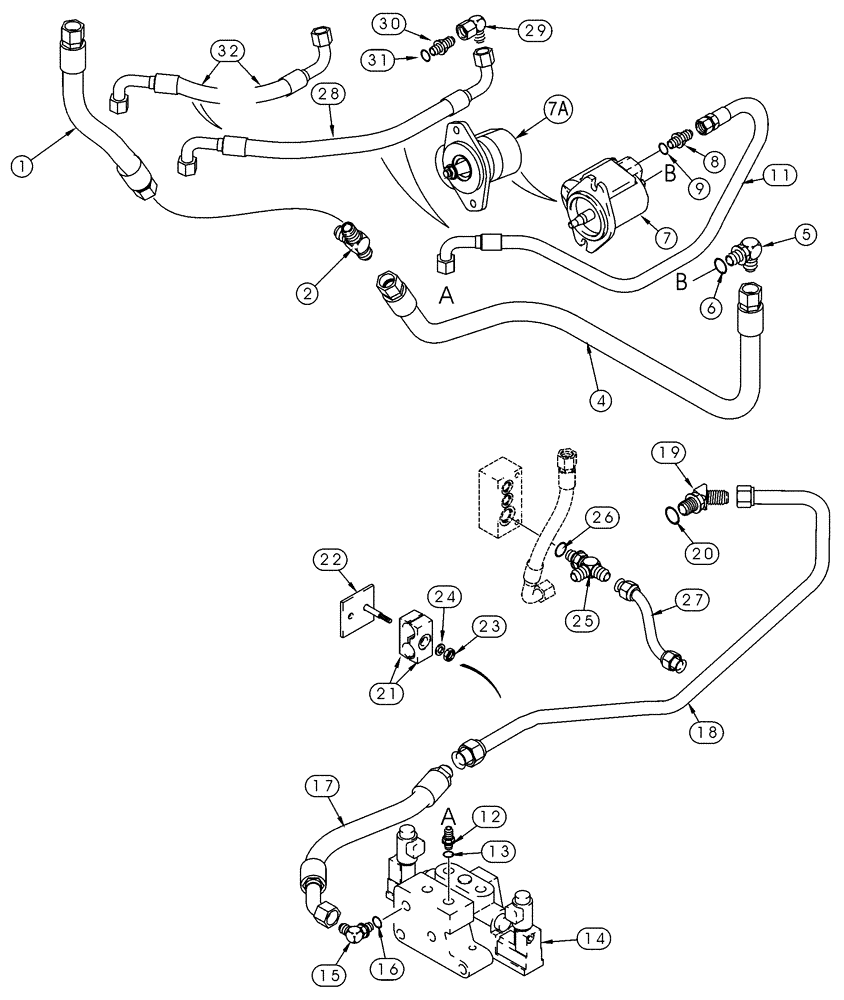

Запчасти Case IH 90XT (08-44) - HYDRAULICS, ATTACHMENT HIGH FLOW, GEAR, SUPPLY AND RETURN TO PUMP (08) - HYDRAULICS

1

254967A1

HOSE

625 mm (24-5/8 in), North American Models

1шт.

1

277451A1

HOSE

670 mm (26-3/8 in), European Models

1шт.

2

218-558

TEE,1 5/16"-12, 37 Degree x 1"-11 1/2, NPTF Br

1шт.

4

278513A1

HOSE ASSY.

1195 mm (47 in)

1шт.

5

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5110

1шт.

7

113461A1

PUMP, HYDRAULIC

See Figure 8-49, Ref. 1, No Longer Available, Order 323426A1, Ref. 7A

1шт.

7a

323426A1

PUMP, HYDRAULIC

See Figure 8-49, Ref. 1A

1шт.

8

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or, -JAF0245224, Includes: Ref. 9

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5063

1шт.

11

279877A1

HOSE ASSY.

1160 mm (45-3/4 in), -JAF0245224, If Equipped

1шт.

12

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 13

1шт.

13

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5077

1шт.

14

227084A1

VALVE

See Figure 8-43 - 8-47

1шт.

15

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref. 16

1шт.

16

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5110

1шт.

17

258888A1

HYDRAULIC HOSE

584 mm (23 in)

1шт.

18

258032A3

TUBE

To Filter, See Page(s) 6-3

1шт.

19

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 20

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5140

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

2 Piece

1шт.

22

278886A1

RETAINER

1шт.

23

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

25

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x fl x or, Includes: Ref. 26, See Figure 6-5, Replaces: Ref. 2

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

27

258047A2

TUBE

1шт.

28

303841A1

HOSE ASSY.

635 mm (25 in), JAF0245225-, If Equipped, Replaced By 311262A1

1шт.

29

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

JAF0245225-

1шт.

30

218-5030

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1-1/16 fl x or, JAF0245225-, Includes: Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5030

1шт.

32

311262A1

HOSE ASSY.

685 mm (27 in), If Equipped

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.
