Запчасти Case IH 90XT (08-41) - PUMP, PISTON, CYLINDER BLOCK AND SHAFT (08) - HYDRAULICS

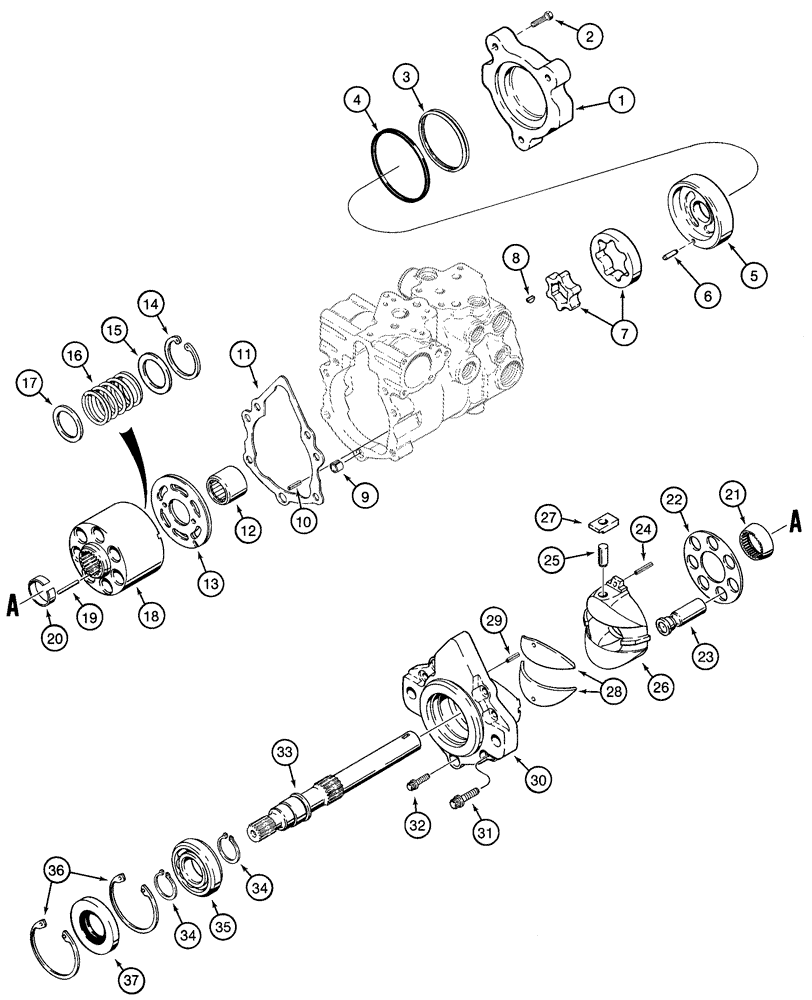

Схема запчастей Case IH 90XT - (08-41) - PUMP, PISTON, CYLINDER BLOCK AND SHAFT (08) - HYDRAULICS
28
3
34
17
23
14
4
19
13
8
24
9
33
6
35
7
37
22
32
29
1
34
11
16
36
30
15
25
20
5
27
18
10
26
12
21
31
2

Артикул

Название

Примечание

Количество

237637A3

PUMP, HYDRAULIC,46 CC

Consists Of: 1 - 27, Also Includes 8-145 - 8-149

1шт.

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

1

105721A1

COVER

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

3

NSS

NOT SOLD SEPARAT

RING, Order 244908A1

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL, Order 244908A1

1шт.

5

105717A1

COVER

1шт.

6

181680A1

PIN,3/16" OD x 13/16" L

1шт.

7

105719A1

ROTOR ASSY.

1шт.

8

126-169

WOODRUFF KEY,#212, 3/32" x3/8"

1шт.

9

N13994

SPACER

1шт.

10

138-217

LOCK PIN,3/16" OD x 7/16" L, Slotted

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL, Order 244908A1

1шт.

12

1277297C1

NEEDLE BEARING

1шт.

13

128929A1

LARGE PLATE

PLATE, LARGE Inner

1шт.

115952A2

CYLINDER BLOCK

Consists Of: 14 - 23

1шт.

14

NSS

NOT SOLD SEPARAT

RING Snap

1шт.

15

115950A1

WASHER

1шт.

16

115948A1

SPRING

1шт.

17

115946A1

WASHER

1шт.

18

115944A2

CYLINDER BLOCK

1шт.

19

110873A1

PIN,2.38mm OD x 33.53mm L

3шт.

20

115943A1

SNAP RING

1шт.

21

115942A1

GUIDE

1шт.

22

NSS

NOT SOLD SEPARAT

RETAINER

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON

7шт.

178632A1

COVER

Consists Of: 24 - 26

1шт.

24

38-11612

LOCK PIN,1/4" x 3/4", Slotted

1/4" x 3/4", Slotted

1шт.

Part of P/N 178632A1

1шт.

25

N13254

PIN

1шт.

Part of P/N 178632A1

1шт.

26

NSS

NOT SOLD SEPARAT

PLATE Swash

1шт.

Part of P/N 178632A1

1шт.

27

N13224

SLEEVE

1шт.

28

193488A1

BEARING LINER

2шт.

29

193494A1

PIN, ROLL

2шт.

30

H436703

COVER

Front

1шт.

31

223677A1

SCREW,Torx, 7/16"

7/16 in

6шт.

32

223680A1

SPECIAL BOLT,Torx, 3/8"

3/8 in

1шт.

33

105718A1

SHAFT

1шт.

34

100-11137

SNAP RING,#137, Ext

2шт.

35

244900A1

ROLLER BEARING

1шт.

36

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

2шт.

37

NSS

NOT SOLD SEPARAT

SEAL, Order 244908A1

1шт.

244908A1

GASKET KIT

Consists Of: 3, 4, 10, 17 (8-145); 7, 17 - 19, 28, 29 (8-147); 31, 32 (8-151); 3, 4, 11 (8-151); 37 (8-153)

1шт.

Выбрано товаров: 46
