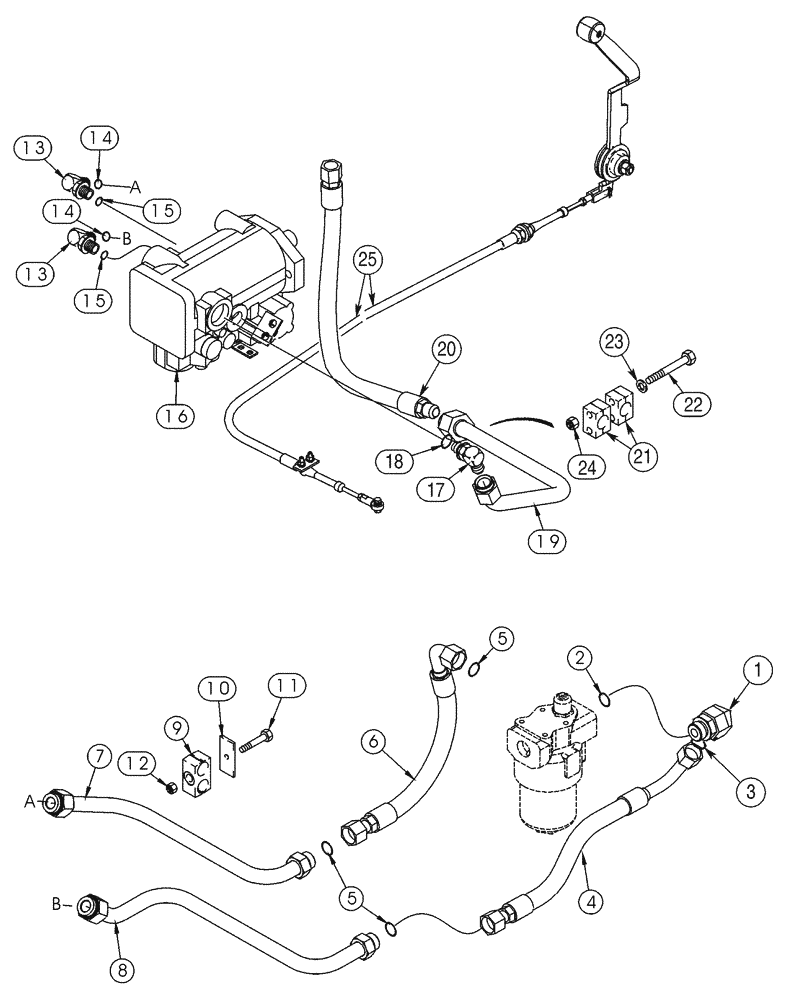

Запчасти Case IH 90XT (08-34) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, SUPPLY AND RETURN TO PUMP (08) - HYDRAULICS

1

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-3/16 fc x 1-5/16 or, Includes: Ref. 2, 3

1шт.

2

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Part of P/N 201-355

1шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 201-355

1шт.

4

303643A1

HOSE ASSY.

475 mm (18-11/16 in)

1шт.

5

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

3шт.

6

275360A1

HOSE ASSY.

482 mm (19 in), See Figure 8-29, Ref. 6

1шт.

7

259822A1

TUBE

1шт.

8

259824A1

TUBE,360, 333 mm Length

1шт.

9

225529A1

CLAMP,Dual, 25.4mm ID

2 Piece

1шт.

10

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

11

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

1шт.

12

832-41408

NUT,M8 x 1.25, Cl 10

M8

1шт.

13

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 or, Includes: Ref. 14, 15

2шт.

15

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 201-308

1шт.

16

237637A3

PUMP, HYDRAULIC,46 CC

See Figure 8-39 - 8-41

1шт.

16

87298018

REMAN-HYD PUMP

Remanufactured HYDRAULIC PUMP

1шт.

16

87298019

CORE-HYDRAULIC PUMP

Return No, HYDRAULIC PUMP

1шт.

17

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Includes Ref. 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 218-5118

1шт.

19

435224A1

TUBE

Supply, Pump To Tank

1шт.

20

435042A1

HOSE ASSY.

380 mm (15 in), Case Suction

1шт.

21

253161A1

CLAMP

2 Piece

2шт.

22

814-6090

BOLT,Hex, M6 x 1 x 90mm, Cl 8.8

2шт.

23

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

24

832-41406

NUT,M6 x 1, Cl 8

2шт.

25

248809A1

CABLE ASSY.

For Attaching Parts, See Figure 9-22

1шт.

14

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Part of P/N 201-308

1шт.
