Запчасти Case IH 90XT (08-31) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, DRAIN LINES FROM COUPLING (08) - HYDRAULICS

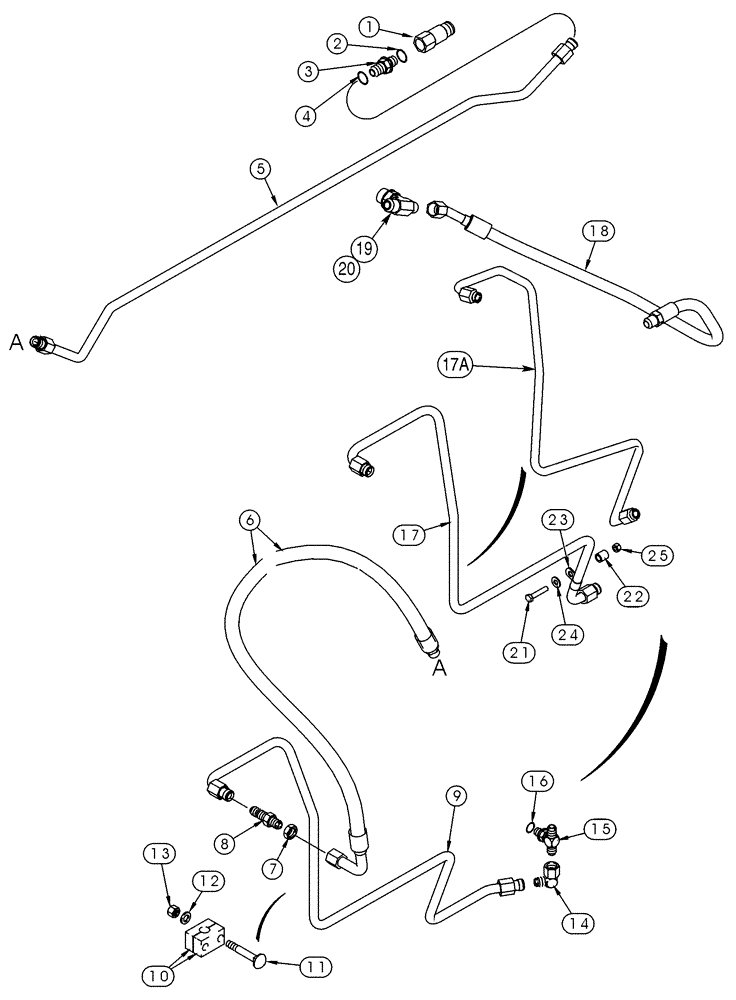

Схема запчастей Case IH 90XT - (08-31) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, DRAIN LINES FROM COUPLING (08) - HYDRAULICS
17a
23
18
11
8
15
17
4
16
6
2
21
5
7
20
1
24
13
19
25
10
9
22
3
12
14

Артикул

Название

Примечание

Количество

1

122180A1

COUPLING, BREAK AWAY

Male, See Figure 8-27

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8 fl x or, Includes: Ref. 4

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 218-5062

1шт.

5

277356A3

PIPE

Replaces: 277356A2

1шт.

6

256704A2

HOSE ASSY.

1667 mm (65-5/8 in)

1шт.

7

218-1251

BHD LOCK NUT,Blkhd, 7/8"-14

1шт.

8

218-675

FITTING,Blkhd, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree

FIT STL BULKHD .625MJ .625MJ

1шт.

9

257139A2

TUBE

To Filter and Cooler Circuit, Used With 14, 15, If Equipped

1шт.

10

254830A1

CLAMP BRACKET

2 Piece

1шт.

11

811-6060

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 60mm, Cl 8.8

6 x 60 mm

2шт.

12

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

13

832-41306

NUT,M6 x 1, Cl 10

2шт.

14

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.

15

257868A1

TEE

Includes: Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

Part of P/N 257868A1

1шт.

17

322200A1

TUBE

To Reservoir, Used With 18 - 25, No Longer Used, Order 322200A2, Ref. 17A

1шт.

17a

322200A2

TUBE

To Reservoir, Used With 18 - 25

1шт.

18

322202A1

HOSE ASSY.

950 mm (37-3/8 in)

1шт.

19

218-5505

TEE,1 1/16"-12, 37º x 7/8"-14 x 1 1/16"-12, O-Ring Br

Includes: Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Part of P/N 218-5505

1шт.

21

814-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8

1шт.

22

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

5/8 x 11/16

1шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

25

832-41308

NUT,M8 x 1.25, Cl 10

1шт.

24

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

Выбрано товаров: 29
