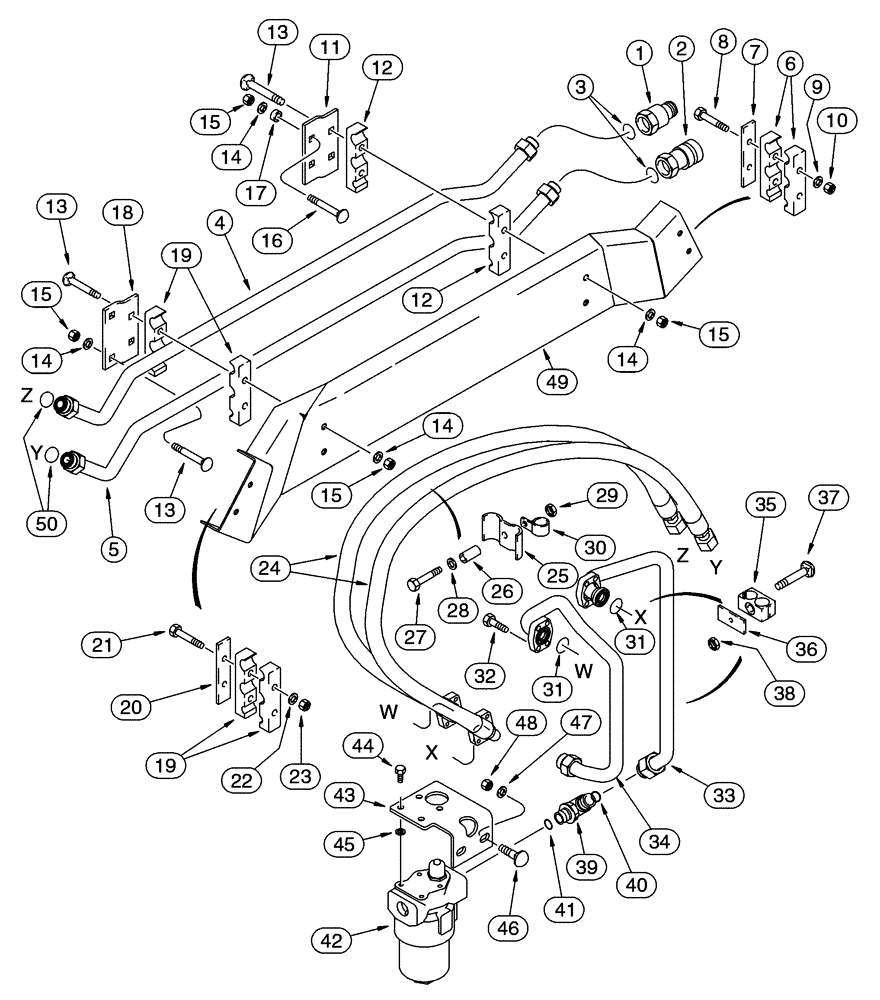

Запчасти Case IH 90XT (08-30) - HYDRAULICS, ATTACHMENT HIGH FLOW, PISTON, FILTER TO COUPLINGS (08) - HYDRAULICS

1

254293A1

QUICK MALE COUPLING

Male

1шт.

2

198474A1

COUPLING

Memale

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

4

277352A1

PIPE

Upper

1шт.

5

277354A1

PIPE

Lower

1шт.

6

256974A2

FIXING BRACKET

2шт.

7

256976A1

BAR

1шт.

8

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

10

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

11

282953A1

SUPPORT

1шт.

12

256974A2

FIXING BRACKET

4шт.

13

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

6шт.

14

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

8шт.

15

832-41312

NUT,M12 x 1.75, Cl 10

8шт.

16

811-12070

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 70mm, Cl 8.8

M12 x 80

2шт.

17

610395R1

SPACER,1/2" X-Strng Pipe x 3/8"

1/2 x 3/8

2шт.

18

282954A1

SUPPORT

1шт.

19

256974A2

FIXING BRACKET

4шт.

20

256976A1

BAR

1шт.

21

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

23

832-41310

NUT,M10 x 1.5, Cl 10

2шт.

24

256703A2

HOSE ASSY.

1623 mm (64 in)

2шт.

25

276433A1

CLAMP

1шт.

26

256690A1

SPACER

1шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

30

515-24302

CLAMP,1 3/16", Insul, 7/16" Bolt

1 ID

1шт.

31

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

2шт.

32

326-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

8шт.

33

275362A1

TUBE,25.4 mm OD, 548, 79 mm Length

1шт.

34

275364A1

TUBE,25.4 mm OD, 460, 217 mm Length

See Figure 8-35, Ref. 17

1шт.

35

225529A1

CLAMP,Dual, 25.4mm ID

2 Piece

2шт.

36

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

2шт.

37

811-8060

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 60mm, Cl 8.8

2шт.

38

832-41308

NUT,M8 x 1.25, Cl 10

2шт.

39

201-308

ELBOW,90 Degree Elbow, 1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1-7/16 fc x 1-5/16 or, Includes: Ref. 40, 41

1шт.

41

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

Part of P/N 201-308

1шт.

42

233442A1

FILTER ASSY

See Figure 8-42

1шт.

43

259060A2

SUPPORT

1шт.

44

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

46

811-12035

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

12 x 35 mm

2шт.

47

895-15012

WASHER,M12 x 28 x 2.5

13.5 x 28 x 2.5 mm

2шт.

48

832-41312

NUT,M12 x 1.75, Cl 10

2шт.

49

277197A1

COVER

1шт.

50

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

45

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

40

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

Part of P/N 201-308

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
