Запчасти Case IH 90XT (08-11) - HYDRAULICS COUPLER SYSTEM, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS 0274262- (08) - HYDRAULICS

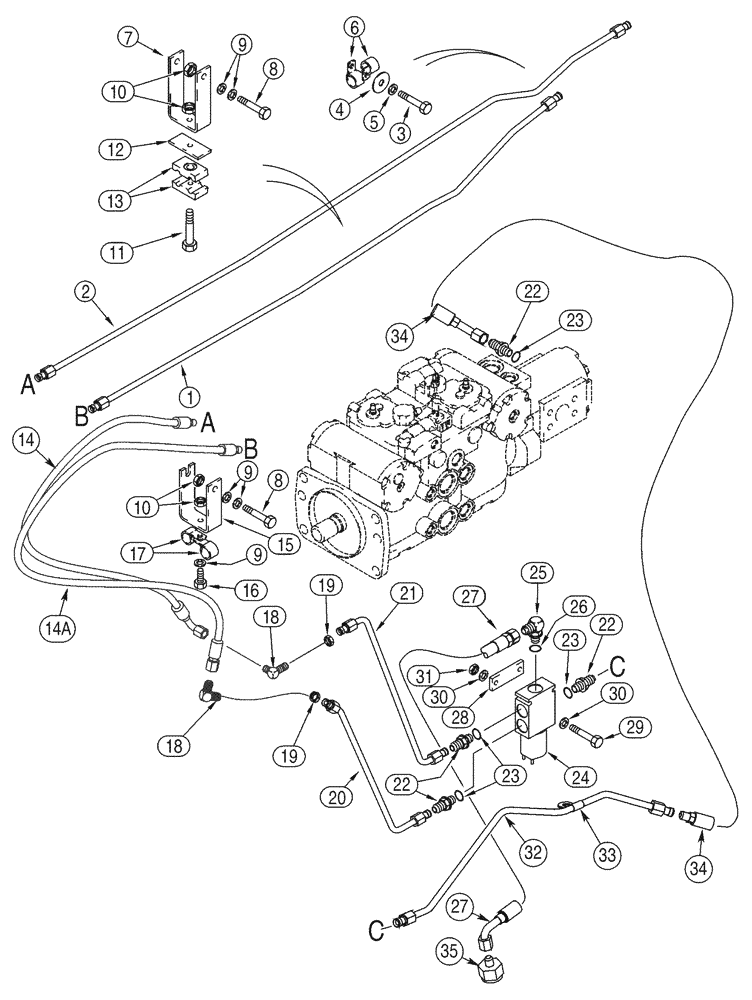

Схема запчастей Case IH 90XT - (08-11) - HYDRAULICS COUPLER SYSTEM, NORTH AMERICAN MODELS JAF0320050-, EUROPEAN MODELS 0274262- (08) - HYDRAULICS
33
34
30
10
27
23
22
35
31
15
25
24
10
19
22
19
9
32
14
4
5
3
9
11
7
23
20
26
12
8
18
1
16
22
30
14a
27
6
28
21
17
18
9
13
29
23
2
34
8

Артикул

Название

Примечание

Количество

1

283450A2

TUBE,1351, 131 mm Length

For Attaching Parts, See Figure 8-14, Ref. 23

1шт.

2

296696A2

TUBE,1226, 83 mm Length

For Attaching Parts, See Figure 8-14, Ref. 24

1шт.

3

811-12080

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 80mm, Cl 8.8

1шт.

4

240669A1

WASHER

1шт.

5

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

6

515-2595

CLAMP,3/8", Insul, 1/2" Bolt

2шт.

7

259286A1

ANGLE

1шт.

8

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 x 90

2шт.

10

832-41408

NUT,M8 x 1.25, Cl 10

M8

4шт.

11

814-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8

1шт.

12

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

PLATE,SPACER

1шт.

13

1546024C1

CLAMP

2 Piece

1шт.

14

259282A1

HYDRAULIC HOSE

1172 mm (46-1/4 in)

1шт.

14a

296699A1

HOSE ASSY.

1342 mm (52-7/8 in)

1шт.

15

259285A1

ANGLE

1шт.

16

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

17

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

2шт.

18

218-693

ELBOW,90 Degree Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

2шт.

19

218-1254

LOCK NUT,Blkhd, 9/16"-18

2шт.

20

296698A2

TUBE

1шт.

21

259273A3

TUBE,377, 254 mm Length

1шт.

22

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 23

4шт.

24

187505C91

VALVE

See Figure 6-23

1шт.

25

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

9/16 fl x adj or, Includes: Ref. 26

1шт.

27

433358A1

HOSE ASSY.

420 mm (16-1/2 in)

1шт.

28

277781A1

LARGE PLATE

PLATE, LARGE

1шт.

29

814-6060

BOLT,Hex, M6 x 1 x 60mm, Cl 8.8

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

31

832-41406

NUT,M6 x 1, Cl 8

2шт.

32

433361A2

TUBE

1шт.

33

515-2495

CLAMP,3/8", Insul, 7/16" Bolt

1шт.

34

275379A1

HOSE ASSY.

390 mm (15-3/8 in)

1шт.

35

218-766

REDUCER,37 Degree, 1 1/16"-12, Fem x 9/16"-18 Male

3/4 x 3/8

1шт.

36

394910A1

HARNESS

Flyback Diode Jumper, Not Illustrated.

1шт.

37

259347A1

HARNESS

Hydraulic Coupler, Not Illustrated, See Figure 4-13

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5057

1шт.

26

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Part of P/N 218-5105

1шт.

Выбрано товаров: 40
